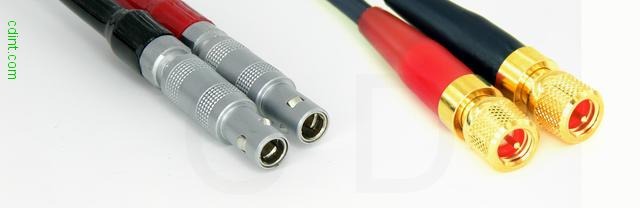

NM01L00MM12174D6

The CD UT Dual Cable is a high-quality, specialized cable designed for use with dual element ultrasonic transducers in non-destructive testing (NDT) applications. This cable is engineered to provide reliable signal transmission and robust connectivity, ensuring accurate and consistent ultrasonic measurements.

With a length of 6 feet, this cable offers flexibility in probe placement and equipment setup, accommodating various inspection scenarios. The industry-standard Lemo 00 connector on one end provides a secure and reliable connection to ultrasonic testing instruments, minimizing signal loss and ensuring optimal data transmission.

The opposite end of the cable features two distinct microdot connectors: a 10-32 Regular Microdot and a 12-32 Large Microdot. This combination is specifically designed for dual element probes, where each element requires a separate connection. The different microdot sizes prevent accidental misconnections, ensuring proper probe configuration and accurate data acquisition.

Constructed from high-quality materials, the CD UT Dual Cable is designed to withstand the rigors of industrial environments, providing long-lasting performance and reliability. The cable's shielding and insulation minimize interference and signal degradation, ensuring accurate and consistent ultrasonic measurements.

Manufactured or supplied by CD, this cable meets stringent quality standards, ensuring compatibility and reliable performance with various ultrasonic testing equipment.

Key Features and Benefits:

• Dual Cable Design: Specifically designed for dual element ultrasonic probes.

• 6 ft Length: Provides flexibility in probe placement and equipment setup.

• Lemo 00 Connector: Ensures a secure and reliable connection to testing instruments.

• 10-32 Regular Microdot Connector: For one element of a dual element probe.

• 12-32 Large Microdot Connector: For the other element of a dual element probe, preventing misconnections.

• High-Quality Construction: Ensures durability and long-term performance.

• Minimized Signal Loss: Shielding and insulation minimize interference and signal degradation.

Applications:

• Dual Element Ultrasonic Testing (UT): Used with dual element probes for corrosion inspection, weld inspection, and other applications.

• Corrosion Inspection: Detecting and measuring corrosion in pipes and other structures.

• Weld Inspection: Detecting flaws in welds using dual element probes.

• General NDT: Applicable in various industries requiring dual element ultrasonic testing.

Circular Connector Details

• Circular connectors, also called "push-pull" or "quick connect/disconnect", are commonly used in non-destructive testing (NDT), physics, and aerospace, on transducers, flaw detectors, and other applications.

• This style of connector was pioneered several decades ago by the Swiss connector manufacturer LEMO. Because of this history, practitioners in the industries that use this connector style still tend to call this a "LEMO connector", even though there are now multiple manufacturers making compatible connectors. "LEMO" is a registered trademark of LEMO USA.

• We source our connectors from multiple vendors. The connector we provide to you may be made by LEMO, or may be a compatible model from an aftermarket manufacturer.
