NM01X0AW003

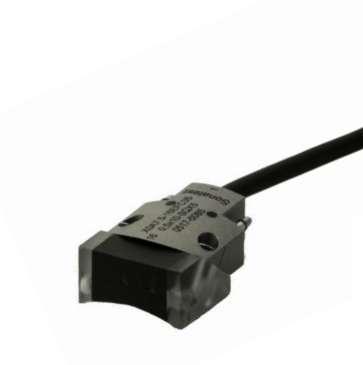

Sonatest X0AW-N45S-IHC Phased Array Wedge - Precision 45° Shear Wave with Integrated Irrigation for Flat Surfaces

Maximize your ultrasonic testing capabilities with the Sonatest X0AW-N45S-IHC Phased Array Wedge. This specialized wedge is engineered for precision, delivering a shear wave (SW) with a 45-degree refracted angle in steel. Designed without a specific radius, it ensures optimal acoustic coupling and consistent signal transmission on flat surfaces, making it a versatile tool for a wide array of non-destructive testing applications.

A key feature of this wedge is its Integrated Holes for Couplant (IHC), which provides a continuous and uniform flow of couplant directly to the inspection area. This is crucial for maintaining consistent signal quality and preventing signal loss during extended scans or automated inspections, significantly enhancing efficiency and data reliability. The 39-degree cut angle and 0 mm delay line indicate a design optimized for specific beam characteristics and direct contact with the test piece, allowing for precise control over your ultrasonic beam.

Part of Sonatest's advanced X0 series, this wedge is designed to integrate seamlessly with compatible phased array transducers, unlocking the full potential of your Sonatest Veo and Prisma flaw detectors for high-resolution inspection of flat materials.

Key Features & Benefits:

• Precision 45° Shear Wave in Steel: Delivers the ideal angle for detecting critical flaws like cracks, lack of fusion, and other discontinuities, particularly those oriented for this specific angle.

• Optimized for Flat Surfaces: Designed for excellent acoustic coupling and uniform beam spread on flat plates, sheets, and components.

• Integrated Irrigation (IHC): Guarantees continuous and uniform couplant delivery, crucial for consistent signal quality and reliability, especially during long or automated scans.

• X0 Series Compatibility: Designed for full compatibility with Sonatest X0 series phased array probes, enabling high-resolution imaging and comprehensive data acquisition.

• Robust Construction: Manufactured to withstand rigorous industrial environments, ensuring a long service life and consistent performance.

• No Delay Line (0 mm): Indicates a direct contact design, allowing for more precise control over the ultrasonic beam and potentially better near-surface resolution.

Applications:

• Weld inspection on flat plates and structures.

• Detection of cracks, laminations, and other defects in flat materials.

• Corrosion mapping and defect detection on large planar surfaces.

• Inspection of components in power generation, oil & gas, manufacturing, and aerospace.

• General phased array ultrasonic testing requiring precise angle beams on flat geometries.

Invest in the Sonatest X0AW-N45S-IHC wedge to enhance your NDT capabilities, achieving superior detection, improved efficiency, and reliable data for critical asset integrity management on flat components.
