NM01CKG009E2.5

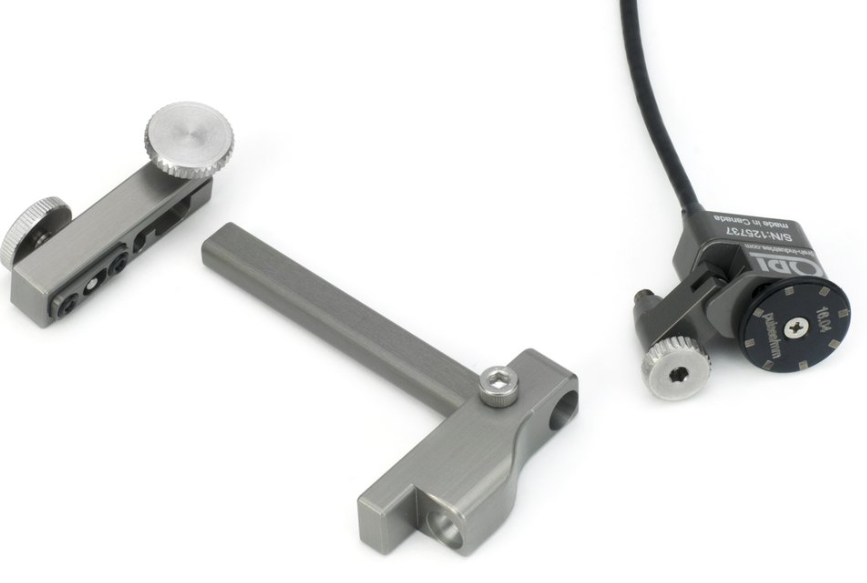

Enhance the precision and reliability of your manual ultrasonic inspections with the JIREH ODI - Single Probe Encoder.

Specifically designed for seamless integration with Olympus Omniscan SX, MX2, and X3 series, as well as M2MMANTIS and GEKKO instruments via a LEMO connector, this compact single-axis encoder provides accurate positional feedback for high-quality encoded scans.

Key Features:

• Dedicated Olympus Compatibility: Features a LEMO connector specifically designed for direct and reliable connection to Olympus Omniscan SX, MX2, X3, M2MMANTIS, and GEKKO ultrasonic flaw detectors.

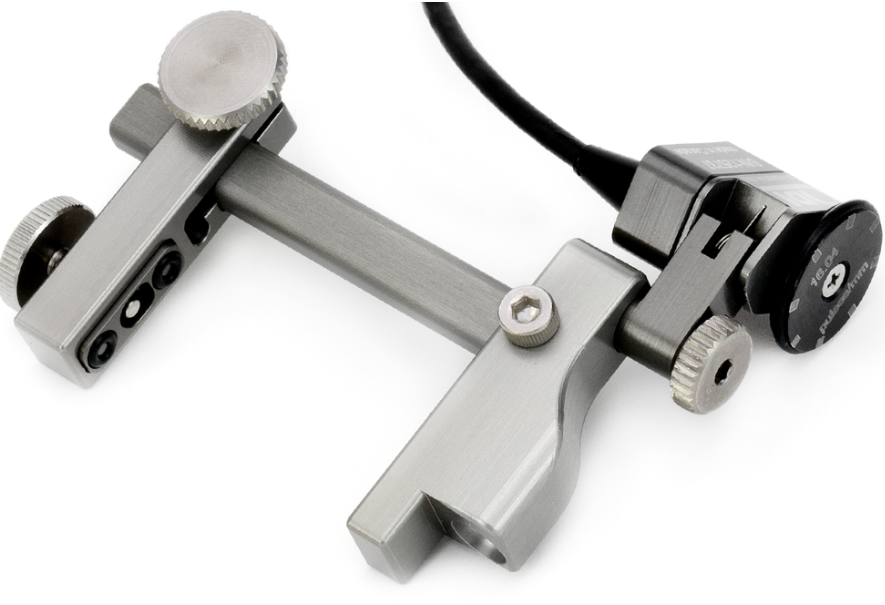

• Universal Probe Mounting: Incorporates a user-friendly, tool-free clamp system that securely accommodates a wide variety of ultrasonic probes and wedges from various manufacturers.

• Precise Single-Axis Encoding: Delivers accurate positional data along a single linear path, essential for generating detailed B-scans, C-scans, and other encoded inspection results.

• Compact and Maneuverable: Its small form factor is ideal for inspections in confined spaces and areas with limited access, offering potential for single-handed operation.

• Adjustable Encoder Positioning: The encoder can be easily positioned at 0° or 90° to suit different clamping configurations and inspection requirements. A spring-loaded wheel ensures consistent contact with the scanning surface.

• Durable Construction: Built to withstand demanding NDT environments, featuring a heat-treated stainless steel encoder wheel for extended life, even with gel couplants.

• Extended Reach: Includes a 2.5-meter (8.2 ft) encoder cable, providing ample freedom of movement during inspections.

Ideal for a wide range of encoded ultrasonic testing applications with Olympus instruments, including:

• Manual phased array inspections

• Corrosion mapping

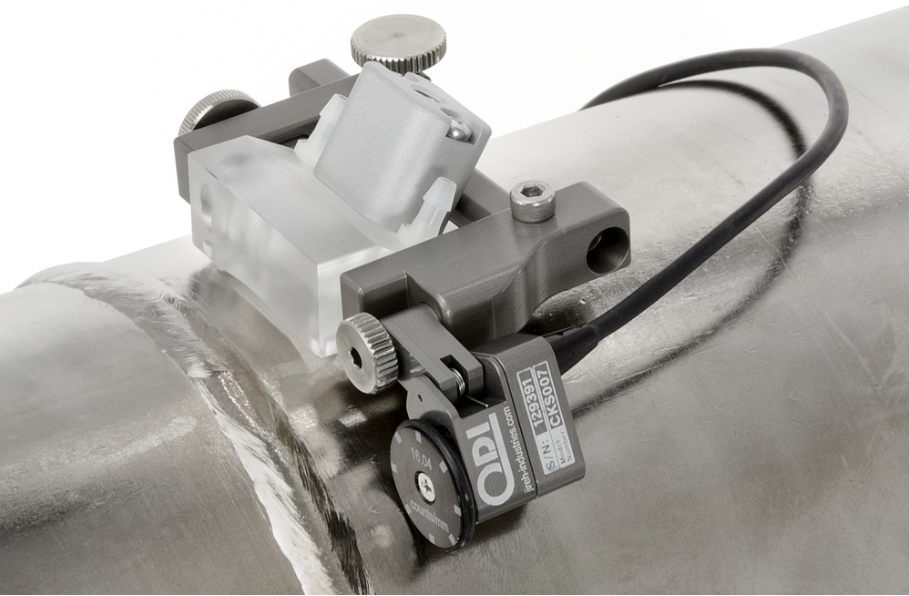

• Weld inspection with positional data acquisition

• Inspections in restricted areas

• Situations requiring accurate tracking of probe movement

Improve the reliability and detail of your ultrasonic inspections with the JIREH ODI - Single Probe Encoder. Its ease of use, universal compatibility, and precise encoding capabilities make it an invaluable tool for NDT professionals using compatible Olympus equipment.
