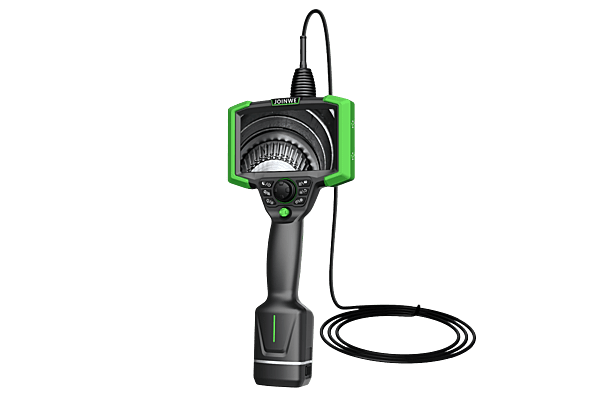

Joinwe JW-F Series | 10M Motorized Industrial Videoscope
Precision Engineering Meets Long-Range Visual Inspection
The Joinwe JW-F Series sets the standard for remote visual inspection (RVI). Combining a massive 10-meter (32.8 ft) insertion tube with high-torque motorized 360° articulation, this videoscope allows inspectors to navigate the most complex internal geometries with ease. Whether you are inspecting heat exchangers, large turbines, or long-run piping, the JW-F provides the HD clarity and reach required for critical decision-making.
Key Performance Features
360° Motorized Articulation: Navigate tight bends effortlessly. The motorized probe steering provides smooth, responsive control, allowing for a full 360° sweep of the inspection area without the physical strain of manual cables.
High-Definition Imaging: Featuring a 1280 x 720 HD resolution sensor, the JW-F delivers crisp, lag-free visuals on a vibrant 5.5-inch display, ensuring that even the smallest hairline cracks or pits are visible.1
Ultra-Bright 40,000 Lux Illumination: Light up the darkest industrial voids. The front-mounted LED system outputs a powerful 40,000 Lux, providing superior contrast and visibility in large-diameter pipes or dark chambers.
Extended 10-Meter Reach: The 6 mm diameter probe is housed in a durable, wear-resistant 10-meter insertion tube, making it ideal for deep-entry inspections that standard videoscopes simply cannot reach.
Optimized Field of View: With a 100° FOV and a generous depth of field (8 mm to 150 mm), you get a wide perspective of the environment while maintaining sharp focus on near-wall defects.
Technical Specifications
| Component | Specification |
| Display | 5.5-inch Industrial Grade LCD |
| Probe Diameter | 6.0 mm |
| Tube Length | 10 Meters (32.8 ft) |
| Resolution | 1280 x 720 (HD) |
| Articulation | Motorized 360° All-Way Steering |
| Illumination | Front-mounted LED, 40,000 Lux |
| Field of View (FOV) | 100° |
| Depth of Field (DOF) | 8 mm – 150 mm |
Applications
Power Gen: Steam turbine blades, condensers, and boiler tubes.
Oil & Gas: Long-distance pipeline welds and corrosion monitoring.
Aerospace: Airframe inspection and large engine core searches.
Infrastructure: Deep structural inspections and bridge box-girders.
Rugged & Reliable: Built for the field, the JW-F Series features an intuitive interface, image/video capture capabilities, and a protective housing designed to withstand oily, dusty, and demanding industrial environments.
