NM01D1AW0093

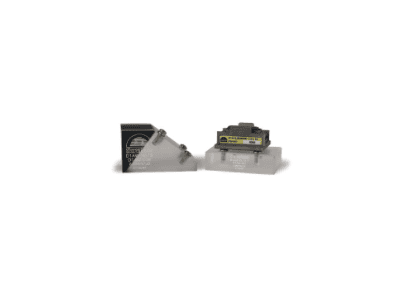

The Sonatest DAAH Type 1 External Mount Wedge is a precision-engineered accessory designed to facilitate reliable ultrasonic inspection of components with a 3-inch circumferential radius. Constructed from a high-performance Rexolite material, this wedge enables effective shear wave testing at a 37-degree angle within the material.
Specifically designed for optimal performance during circumferential scanning, this DAAH wedge features an integrated irrigation system with internal channels to ensure consistent and effective couplant delivery directly to the contact surface, maintaining optimal signal transmission. Additionally, it is equipped with durable wear pins that protect the wedge's contact surface from abrasion, significantly extending its lifespan during demanding circumferential scanning applications.
The 3-inch circumferential radius of the wedge's contact face is meticulously shaped to ensure intimate contact and consistent ultrasonic beam introduction on cylindrical or curved components with this specific curvature. The 37-degree angle is a widely utilized and effective angle for shear wave inspection, suitable for detecting various types of flaws oriented at different angles relative to the scanning direction.
Key Selling Points:
Type 1 External Mount Design: Engineered for secure mounting on the external surface of the test piece.
Precision 3-Inch Circumferential Radius: Ensures optimal acoustic coupling on components with a 3-inch radius.
Effective 37-Degree Inspection Angle: Optimized for reliable shear wave testing.
High-Performance Rexolite Construction: Provides excellent acoustic transmission properties and resistance to wear.
Integrated Irrigation System: Delivers consistent couplant to the inspection surface for optimal signal quality.
Durable Wear Pins: Protect the wedge face from abrasion during scanning, maximizing lifespan.
Specifically Designed for Circumferential Scanning: Ideal for inspecting pipes, tubes, and other curved components for circumferential flaws.
Benefits:
Ensures Reliable Inspection of Curved Components: The precision-engineered radius provides excellent coupling on 3-inch diameter cylindrical parts.
Facilitates Effective Shear Wave Testing: The 37-degree angle is well-suited for detecting various flaw orientations.
Maintains Consistent Signal Quality: Integrated irrigation ensures continuous and optimal couplant application.
Extends Wedge Service Life: Wear pins protect the contact surface, reducing the need for frequent replacements.
Provides Efficient Ultrasonic Transmission: The Rexolite material optimizes acoustic performance.
Applications:
Ideal for ultrasonic inspection of pipes and tubes to detect circumferential flaws.
Suitable for inspecting other cylindrical or curved components with a 3-inch radius.
Used in both automated and manual ultrasonic testing systems.
