AUT Solutions NanoScan2 Kit-2 - Encoded Phased Array/TOFD/Corrosion Scanner System
Unleash the full potential of your Advanced Ultrasonic Testing (AUT) inspections with the AUT Solutions NanoScan2 Kit-2. This compact, lightweight, and highly configurable scanner system is engineered to deliver precision and versatility for a wide array of NDT applications, including phased array, TOFD, B & C-scan, and specialized nozzle inspections. The Kit-2 provides a complete solution right out of the box, ensuring you have the tools for diverse and challenging inspection geometries.
Key Features & Benefits (NanoScan2 System):
Multi-Functional Design: A single scanner capable of performing various advanced UT techniques, minimizing the need for multiple specialized tools.
Small & Lightweight: Designed for easy portability and access to confined or difficult-to-reach inspection areas.
Magnetic Wheels: Provides a strong and reliable bond to ferrous materials, allowing for smooth and stable scanning on vertical or inverted surfaces.
High-Resolution Encoded Data: Features a modular, IP68 waterproof encoder (with a lifetime warranty from AUT Solutions) ensuring precise positional data for accurate mapping and imaging of inspection areas. The detachable encoder cable offers added convenience and easy replacement.
Modular & Configurable: Its modular design allows for quick adaptation to various inspection needs.
Quick-Detach Gimbal: Enables rapid switching between circumferential and axial scanning with minimal setup time.
Adjustable Probe Forks: Accommodates a wide range of conventional and advanced probes and wedges (including common Olympus-style holders).
Robust & Durable: Built for the demanding environments of NDT, with an enclosed drive train for reduced maintenance and protection against dirt and grit.
Broad Compatibility: Works seamlessly with major ultrasonic flaw detectors and PAUT instruments from manufacturers like Olympus (Omniscan), ProScan, TD Scan, M2M, GE, Zetec, VEO, and more.
Designed & Manufactured in the USA: Ensuring high-quality construction and support.

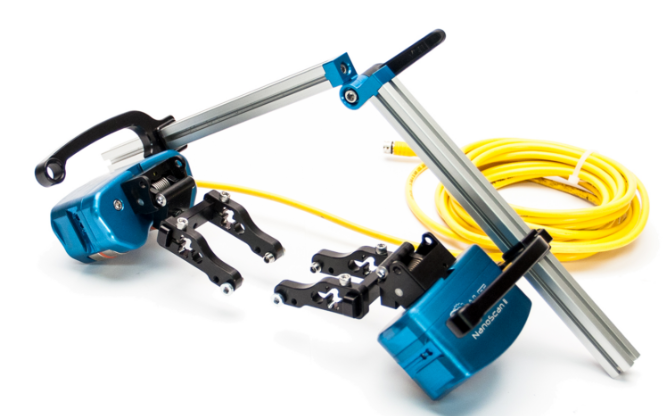

NanoScan2 Kit-2 Specific Inclusions:
This comprehensive kit contains everything necessary to immediately begin advanced scanning operations:

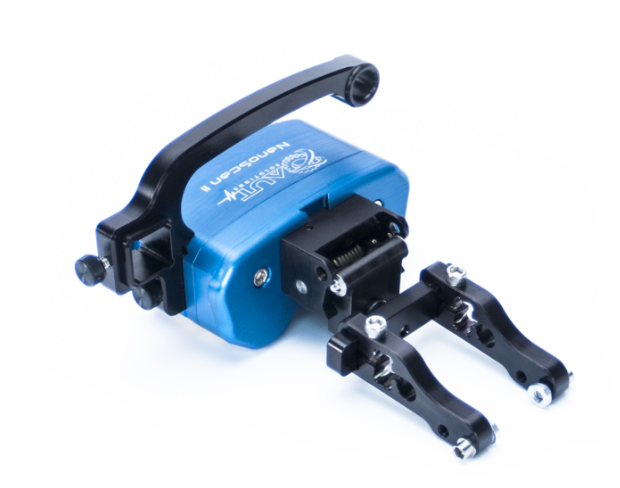

Encoded Truck Assembly: The main magnetic-wheeled scanner body with the high-resolution, waterproof encoder.
Idler Truck Assembly: Used in conjunction with the encoded truck for stable two-point contact scanning. (Note: Some kits list two gimbals, implying two trucks can be used, or one encoded and one idler. Confirm exact configuration if critical).
Gimbal(s): Allows the probe to conform to curved surfaces, ensuring consistent coupling.
Nozzle Kit / Nozzle Attachment: Specifically designed for inspecting nozzles and can also be used for Short Range Guided Wave (SRGW) inspection of storage tank floor annular rings from the outside chime area.
Spare Parts Kit: Essential small components for field maintenance and quick fixes.
Custom-Fitted Shipping Case: A robust, purpose-built case designed to protect all components during transport and storage.
Ideal For:
Weld Inspection (Phased Array, TOFD)
Corrosion Mapping (B & C-scan)
Nozzle Inspection
Short Range Guided Wave (SRGW) applications on tank floors
General flaw detection and thickness mapping on ferrous materials
Field applications requiring a portable, versatile, and precise scanner.
