Mirion — DMC-3000 G3 Electronic Personal Dosimeter
Autonomous Personal Alarming Dosimeter for X-Ray and Gamma Radiation, mSv Configuration
SKU: NOM001158-AR
Overview

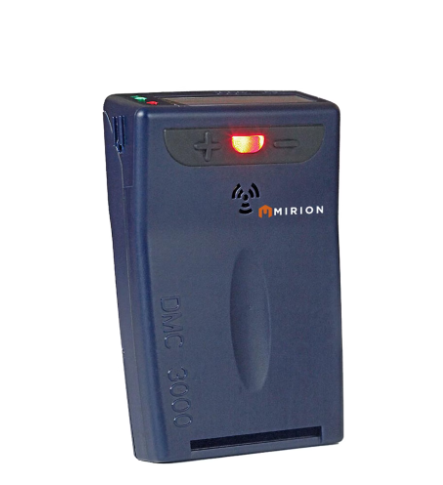

The Mirion DMC-3000 G3 is a compact electronic personal dosimeter designed to provide real-time monitoring of accumulated radiation dose and dose rate. Configured to display results in millisieverts, the instrument helps radiation workers track occupational exposure while working around X-ray and gamma-radiation sources.
The dosimeter combines a high-contrast backlit LCD with audible, visual, and vibrating alarms. Adjustable dose and dose-rate thresholds alert the wearer when programmed radiation limits or warning levels are reached, supporting faster recognition of changing exposure conditions.
Powered by a single AAA alkaline battery, the DMC-3000 operates as an autonomous wearable instrument without requiring a continuous connection to external equipment. Its rugged housing, compact dimensions, replaceable clip, and IP67 protection make it suitable for industrial radiography, nuclear facilities, medical environments, emergency response, and radiation-safety programs.
What's Included
| Item | Details |
|---|---|
| Electronic Dosimeter | Mirion DMC-3000 G3 |
| Measurement Configuration | X-ray and gamma personal dosimetry |
| Display Units | mSv and mSv/h |
| Attachment | Replaceable wearable clip |
| Power Source | AAA alkaline battery |
| Alarm Types | Audible, visual, and vibrating |
| Product Type | Autonomous personal alarming dosimeter |
| Manufacturer | Mirion Technologies |
| SKU | NOM001158-AR |
Note: Readers, communication equipment, software, telemetry modules, beta modules, neutron modules, and other accessories are not included unless specified separately.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 1.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Personal electronic dosimeter |
| Model | DMC-3000 |
| Generation | G3 |
| Measurement Units | mSv and mSv/h |
| Detected Radiation | X-ray and gamma |
| Dose Quantities | Personal dose equivalent Hp(10) and Hp(0.07) |
| Dose Measurement Range | 0.01 µSv to 100 Sv |
| Dose-Rate Measurement Range | 0.05 µSv/h to 20 Sv/h |
| Reference Accuracy | ±5% under specified reference conditions |
| Display | High-contrast backlit LCD |
| Navigation | Two-button operation |
| Alarm Types | Audible, visual LED, and vibration |
| Audible Alarm Level | Approximately 85 dB(A) at 11.8 in |
| Alarm Thresholds | Adjustable dose and dose-rate settings |
| Data Storage | Non-volatile dose, dose-rate, and event records |
| Power Source | One AAA 1.5 V alkaline battery |
| Continuous Battery Life | Up to approximately 3,000 hours under typical conditions |
| Housing | High-impact polycarbonate-ABS |
| Ingress Protection | IP67 |
| Drop Resistance | Up to 4.9 ft / 1.5 m onto concrete |
| Device Dimensions | 3.4 × 2.3 × 0.8 in maximum, without clip |
| Device Weight | Less than 3.1 oz with battery and clip |
| Operating Temperature | 14 °F to 122 °F |
| Manufacturer | Mirion Technologies |
| SKU | NOM001158-AR |
Performance Features
Real-Time Personal Dosimetry
Continuously monitors accumulated dose and current dose rate to help workers manage occupational radiation exposure.
Multiple Alarm Methods
Audible, vibrating, and high-visibility LED alarms help notify the wearer in loud, dark, or physically demanding environments.
Adjustable Alarm Thresholds
Dose and dose-rate warnings can be configured according to the radiation-protection program and assigned work limits.
High-Contrast Backlit Display
Clearly presents personal dose, dose rate, operating information, and alarm conditions in different lighting environments.
Extended Autonomous Operation
Provides up to approximately 3,000 hours of continuous operation with a single industrial-quality AAA alkaline battery under typical conditions.
Event and Exposure Recording
Stores dose increments, dose-rate information, alarms, faults, and configuration changes in non-volatile memory.
Expandable Modular Platform
Supports compatible optional modules for beta measurement, neutron measurement, telemetry, location tracking, and connected dosimetry workflows.
User-Friendly Design
- Compact format supports comfortable personal wear
- Two-button navigation simplifies routine operation
- Backlit display improves readability in low-light areas
- Audible, visual, and vibrating alarms provide multiple warning methods
- Replaceable clip supports different wearing configurations
- Standard AAA battery simplifies field replacement
- Low-battery and instrument-status indications support operational readiness
- Personal identification information can be displayed
- Adjustable warning levels support different work assignments
- Lightweight construction reduces wearer burden during extended shifts
Built for Industrial Environments
- Rugged high-impact housing supports demanding field use
- IP67 protection provides resistance to dust and temporary water immersion
- Resistant to shock, vibration, and drops from up to 4.9 ft
- Suitable for controlled radiation areas and industrial work sites
- Strong electromagnetic immunity supports use around industrial equipment
- Wide operating-temperature range supports indoor and outdoor assignments
- Non-volatile memory retains exposure information during battery replacement
- Designed for repeated daily use in professional radiation-protection programs
- Intended for operation, calibration, and maintenance according to approved radiation-safety procedures
Compatibility
Compatible with:
- Mirion DMC-series dosimeter readers
- Compatible Mirion dosimetry-management software
- Access-control and controlled-area entry systems
- Compatible electronic dosimeter calibration equipment
- Optional DMC-3000 beta modules
- Optional DMC-3000 neutron modules
- Optional telemetry and neutron-telemetry modules
- Compatible Bluetooth and location-tracking modules
- Centralized radiation-monitoring platforms
- Occupational dose-management workflows
Firmware, reader, software, and optional-module compatibility should be confirmed before integration.
Ideal Applications
- Industrial radiography
- Non-destructive testing radiation safety
- Nuclear power facilities
- Fuel-cycle and radioactive-material facilities
- Medical imaging and radiation therapy
- Research laboratories
- Homeland security operations
- Emergency and first-responder radiation monitoring
- Decommissioning and decontamination projects
- Controlled-area worker monitoring
- Maintenance work around radiation sources
- Occupational radiation-protection programs
- Personal dose and dose-rate tracking
- Radiological access-control systems
About Mirion Technologies
Mirion Technologies develops radiation-detection, personal-dosimetry, health-physics, spectroscopy, and monitoring equipment for nuclear, medical, defense, research, emergency-response, and industrial applications. Its products support organizations responsible for occupational exposure management, radiation safety, radiological measurement, and worker protection.
