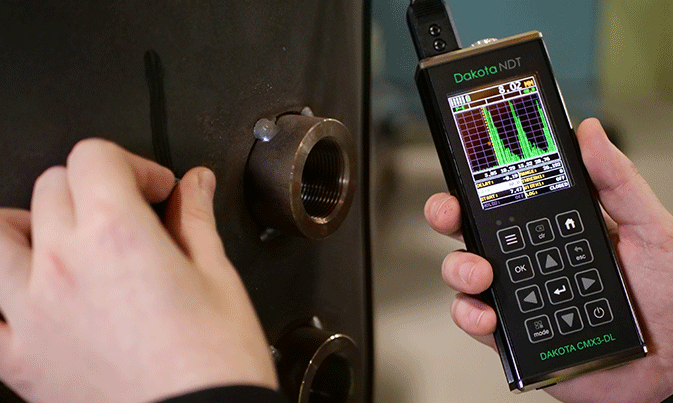

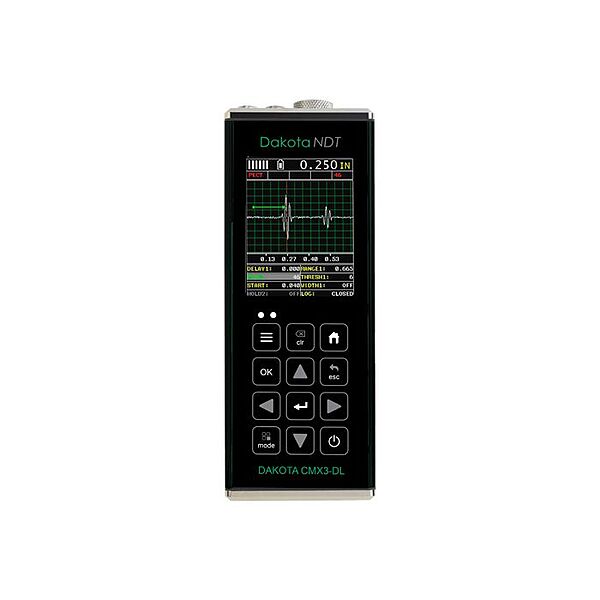

Dakota NDT CMX3-DL A/B-Scan Material and Coating Thickness Gauge with AMOLED Color Display
SKU: Z-187-0005
The top of Dakota's CMX range: a corrosion thickness gauge that measures material and coating thickness at the same time, with a live A/B-scan on a bright AMOLED color display, 4 GB of memory and USB-C connectivity.
| 2-in-1Coating and material together | AMOLEDColor A/B-scan display | 4 GBInternal memory | 383 g13.5 oz with batteries |
The Dakota NDT CMX3-DL combines the ruggedness of the CMX series with the analytical power of a flaw detector. It measures material and coating thickness at the same time while still locating pits, flaws and defects in the material, so inspectors get the full picture of a coated structure without removing the coating.
Its 1/4 VGA AMOLED color display shows real-time A-scan (RF or rectified) and B-scan cross-section views, with switchable portrait and landscape A-scan layouts. A 100 MHz DSP platform with two channels, 4 GB of internal memory and USB-C connectivity make it a top choice for petrochemical, power generation and aerospace inspection.
Key Features
 | A/B-scan scope on an AMOLED color displayVerify every reading on the live A-scan in rectified (+/-) or full RF view, in portrait or landscape. The time-based B-scan draws a cross-section of the back wall at 10 to 200 readings per second, and three independent gates and a 60 Hz color refresh keep signals clear and responsive. |
Built for the Field
Coating and material in one reading
In Pulse-Echo Coating (PECT) mode, the CMX3-DL displays material thickness and coating thickness separately in a single reading, while still detecting pits and flaws.
Six measurement modes
Pulse-Echo for bare metal, Pulse-Echo Coating, temperature-compensated Pulse-Echo for hot surfaces, Echo-Echo and Echo-Echo Verify for thru-paint readings, and Coating Only.
Powerful two-channel electronics
A 100 MHz DSP platform using FPGA technology drives dual pulsers and receivers at up to 250 Hz PRF. A 110 dB gain range, automatic gain control and linear time dependent gain with adjustable slope handle difficult materials, with single, dual, delay line and pencil probes.
Automatic setup
Automatic probe zero, probe recognition and temperature compensation get you measuring faster with fewer setup errors.
Scanning, alarms and QC tools
High-speed scan captures up to 50 readings per second and displays the minimum thickness found. Differential mode shows the deviation from a nominal value, and limit alarms with an LED indicator flag readings outside your tolerances.
Data logging and connectivity
Store readings with A/B-scan images on 4 GB of internal memory, save 64 user-defined setups, and connect to a PC over USB-C, which also provides line power. PC software and a data transfer cable are included.
Rugged and made in the USA
An extruded aluminum body with gasket-sealed, nickel-plated end caps weighs just 383 g (13.5 oz) and works from -10°C to 60°C.
Specifications
| General | |
| Manufacturer | Dakota NDT |
|---|---|
| Model | CMX3-DL (replaces CMX DL+ Color) |
| SKU | Z-187-0005 |
| Instrument type | A/B-scan material and coating thickness gauge with data logger |
| Shipping dimensions (estimated) | 356 × 305 × 152 mm (14.0 × 12.0 × 6.0 in) |
| Shipping weight (estimated) | 2.3 kg (5.0 lb) |
| Measurement Modes | |
| Pulse-Echo (P-E) | Pits and flaws, 0.025 to 48 in (0.63 to 1,219.2 mm) |
| Pulse-Echo Coating (PECT) | Material, coating, pits and flaws, 0.025 to 48 in (0.63 to 1,219.2 mm) |
| Pulse-Echo Temp Comp (PETP) | Pits and flaws with automatic temperature compensation, 0.025 to 48 in |
| Echo-Echo (E-E) | Thru paint and coatings, 0.100 to 6 in (2.54 to 152.4 mm) |
| Echo-Echo Verify (E-EV) | Thru paint and coatings, 0.100 to 1.0 in (2.54 to 25.4 mm) |
| Coating Only (CT) | 0.0005 to 0.100 in (0.0127 to 2.54 mm) |
| Ultrasonic | |
| Platform | 100 MHz DSP using FPGA technology; two channels with dual pulsers and receivers |
| Pulse repetition rate | Up to 250 Hz |
| Gain | 110 dB range; AGC; linear time dependent gain (TDG) with adjustable slope |
| Gates | 3 independent gates |
| Probes | Single, dual, delay line and pencil |
| Resolution | Selectable 0.001 in (0.01 mm) or 0.0001 in (0.001 mm) |
| Velocity range | 0.0122 to 0.7300 in/µs (309.88 to 18,542 m/s) |
| Measurement rate | 8 readings per second manual; 50 per second in high-speed scan |
| Automatic functions | Probe zero, probe recognition, temperature compensation |
| Display & Data | |
| Display | 1/4 VGA AMOLED color, 320 × 240 pixels; 57.6 × 43.2 mm (2.27 × 1.78 in) viewable area; 60 Hz refresh |
| Views | Large digits; A-scan rectified (+/-) and RF, portrait or landscape; time-based B-scan; combined B-scan and digits; scan bar; coating thickness |
| QC features | High-speed scan with minimum display; differential mode; limit alarms with LED |
| Memory | 4 GB internal; 64 user-defined setups |
| Connectivity | USB-C, with line power option; PC software |
| Physical | |
| Size (W × H × D) | 63.5 × 165 × 31.5 mm (2.5 × 6.5 × 1.24 in) |
| Weight | 383 g (13.5 oz) with batteries |
| Case | Extruded aluminum body with nickel-plated aluminum end caps, gasket sealed |
| Keypad | Membrane switch pad with 12 tactile keys |
| Power | AA batteries or USB-C line power |
| Operating temperature | -10°C to 60°C (14°F to 140°F) |
What's in the Box
- Dakota NDT CMX3-DL thickness gauge
- T-102-2900 dual-element transducer
- Couplant
- AA batteries
- PC software and data transfer cable
- Carrying case
- Operation manual
- Certificate of calibration
Standard Dakota NDT kit. Contents can vary by package, so contact us to confirm what ships with your order.
Complete your thickness testing setup
Add a step calibration block for daily checks, extra couplant, Dakota delay line or pencil probes for thin and hard-to-reach areas, and a protective rubber boot for tall-format Dakota gauges.
Applications
The CMX3-DL handles advanced corrosion surveys where waveform verification and coating data matter.
| ✓ Corrosion and pitting on coated structures | ✓ Coating thickness verification |
| ✓ Pipes and tanks | ✓ Pressure vessels and boilers |
| ✓ B-scan back wall profiling | ✓ Hot surfaces with temperature compensation |
| ✓ Petrochemical and power generation | ✓ Aerospace and precision components |
About Dakota NDT
Dakota NDT, an Elcometer company, manufactures high-quality industrial ultrasonic testing equipment for the petrochemical, aerospace, power generation and automotive industries. Its range includes corrosion and precision thickness gauges, flaw detectors, bolt tension monitors, transducers and accessories.
