Labino — UVG3 2.0 Double Kit, Spotlight & Midlight
Professional UV-A LED Inspection Kit with Spotlight and Midlight Torch Lights
SKU: L1083
Overview
The Labino UVG3 2.0 Double Kit includes one Spotlight and one Midlight UV-A LED torch, giving inspectors two beam options for different fluorescent NDT applications.
The Spotlight provides a concentrated, high-intensity beam for focused inspections, while the Midlight offers a wider beam for general fluorescent magnetic particle and penetrant testing.
Both lamps feature a 365 nm UV-A output, compact construction, rechargeable battery operation, and IP68 protection for demanding field and industrial environments.

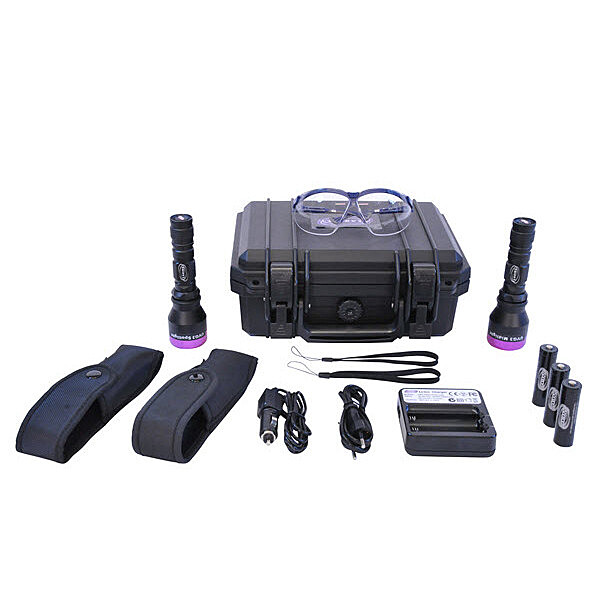

What's Included
| Item | Quantity |
|---|---|
| UVG3 2.0 Spotlight | 1 |
| UVG3 2.0 Midlight | 1 |
| Rechargeable Batteries | 3 |
| Rubber Bumpers | 2 |
| Charger | 1 |
| Car Charger | 1 |
| Belt Holsters | 2 |
| Carrying Case | 1 |
| SKU | L1083 |
Key Features
Includes Spotlight and Midlight UV-A torches
Peak wavelength: 365 nm ±5 nm
Spotlight intensity: approx. 80,000 µW/cm² at 15 in
Midlight intensity: approx. 9,000 µW/cm² at 15 in
Rechargeable battery operation
Approx. 4-hour Spotlight runtime
Approx. 6-hour Midlight runtime
IP68-rated construction
White-light blocking filter
Compact and lightweight design
Suitable for fluorescent MPI and penetrant inspection
Tested to ASTM E3022 and ISO 3059
Spotlight vs. Midlight
| Feature | Spotlight | Midlight |
|---|---|---|
| Beam Type | Concentrated | Wider |
| UV-A Intensity | Approx. 80,000 µW/cm² | Approx. 9,000 µW/cm² |
| Battery Runtime | Approx. 4 hours | Approx. 6 hours |
| Best For | Focused / long-distance inspection | General NDT inspection |
Ideal Applications
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrant Inspection (FPI/LPI)
Weld inspection
Aerospace inspection
Pipeline inspection
Manufacturing QA/QC
Component inspection
Leak detection
Field NDT applications
Box Dimensions & Shipping Weight
| Parameter | Details |
|---|---|
| Box Dimensions (L × W × H) | 14 × 11 × 6 in |
| Shipping Weight |
About Labino
Labino manufactures professional UV-A inspection lamps and NDT equipment used in aerospace, oil and gas, manufacturing, automotive, and industrial inspection applications.
