NM01CXG013200202

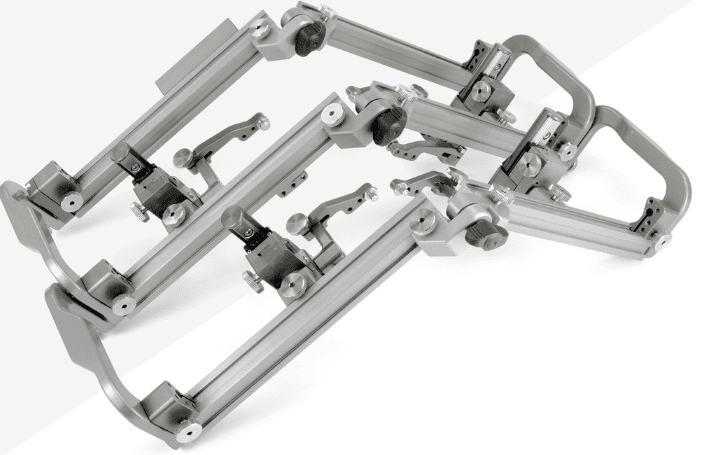

Jireh Pivoting Probe Holder Frame - Enhance Longitudinal Weld Scanning Capabilities

The Jireh Pivoting Probe Holder Frame is a crucial accessory for expanding the weld inspection capabilities of compatible Jireh motorized scanners. This robust frame allows for the mounting of multiple ultrasonic probes and features both primary and secondary 5.0 mm (0.197 in) pivot buttons. These pivot points enable precise angular adjustment of probe holders and wedges, ensuring optimal beam orientation for longitudinal weld scanning. By adding this frame to your Jireh scanner, you can achieve comprehensive and encoded inspection along the length of welds with increased efficiency and accuracy.

Key Benefits:

• Enables Longitudinal Scanning: Adds the capability to scan along the length of welds.

• Precise Probe Adjustment: 5.0 mm pivot buttons allow for accurate angular positioning of probes.

• Versatile Mounting: Accommodates various probe holders and wedges with 5 mm pivot holes.

• Enhanced Inspection Coverage: Facilitates thorough examination of weld zones.

• Durable Jireh Quality: Built to withstand demanding inspection environments.

Applications:

• Longitudinal weld inspection on pipes, vessels, and other components.

• Use with Jireh NAVIC and SKOOT motorized scanners.

• Phased Array and TOFD inspections along weld seams.
