NM01FLUKE62MAX

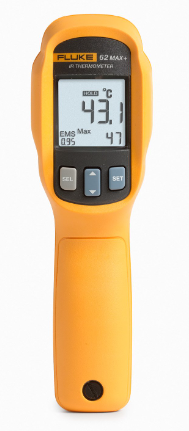

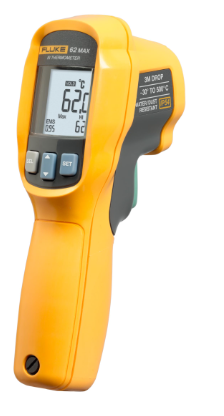

The Fluke 62 MAX is a compact, rugged infrared thermometer designed for easy, accurate temperature measurement in a wide range of industrial and commercial applications. With a temperature range of -30°C to 500°C (-22°F to 932°F), this handheld tool allows users to measure the surface temperature of objects from a safe distance without making contact, offering quick and efficient readings.
Built to withstand tough work environments, the Fluke 62 MAX is water-resistant, dustproof, and drop-tested up to 9 feet, making it an ideal choice for fieldwork in manufacturing, HVAC, electrical maintenance, and more.
Key Features & Benefits:
Temperature Range: -30°C to 500°C (-22°F to 932°F), covering a wide range of industrial, electrical, and HVAC applications.
Laser Targeting: The laser pointer helps to aim and pinpoint the area being measured, improving accuracy.
Single-Point Laser Sight: Measures one spot for precise temperature reading, ensuring you focus on the specific target.
Built for Tough Environments:Water-resistant, dustproof, and drop-tested to 9 feet, ensuring durability in rugged conditions.
Backlit Display: The LCD display with a backlight ensures clear readings, even in low-light environments.
Wide Field of View: With a 20:1 distance-to-spot ratio, you can measure small and large surfaces at a distance.
Easy-to-Use: Simple one-handed operation with user-friendly controls, making it accessible for both professionals and beginners.
Automatic Shutoff: After 7 seconds of inactivity, the thermometer automatically shuts off to conserve battery life.
Battery Life: Powered by 2 AA batteries, which provide up to 12 hours of continuous use.
Applications:
The Fluke 62 MAX Infrared Thermometer is ideal for use in various industries and applications, such as:
HVAC: Checking the temperature of air ducts, compressors, and refrigeration equipment.
Electrical Maintenance: Inspecting circuits, electrical panels, and connections for overheating.
Industrial Applications: Measuring machine parts, bearings, motors, and electrical equipment.
Building Inspections: Assessing heat loss, insulation efficiency, and plumbing.
Automotive: Diagnosing engine performance, brake components, and exhaust systems.
Technical Specifications:
Temperature Range: -30°C to 500°C (-22°F to 932°F)
Accuracy: ±1.5% of reading or ±1.5°C (2.7°F), whichever is greater
Emissivity: Adjustable from 0.10 to 1.00
Distance-to-Spot Ratio: 20:1
Laser Type: Class II, <1 mW
Display: Backlit LCD
Power Supply: 2 AA batteries (included)
Battery Life: Approximately 12 hours of continuous use
Dimensions: 5.4" x 2.3" x 1.3" (137 mm x 58 mm x 33 mm)
Weight: 0.27 lbs (120 g)
Package Contents:
Fluke 62 MAX Handheld Infrared Thermometer
2 AA Batteries
User Manual
Carrying Case
