NM01TAB4458X9

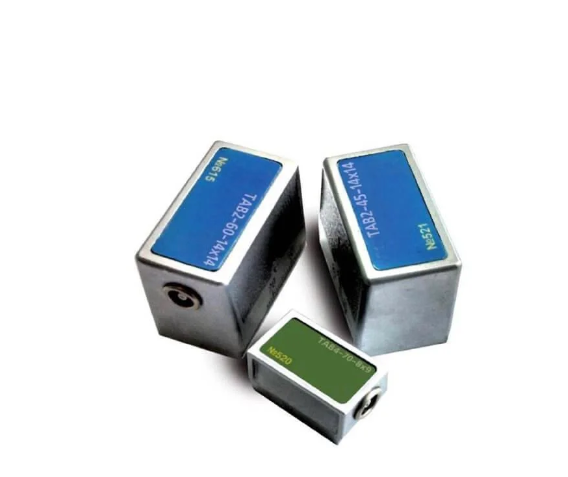

The OKO-NDT TAB (Single Element) Angle Beam Probe is a compact and versatile ultrasonic transducer designed for angled flaw detection. This specific model operates at a frequency of 4.0 MHz and introduces a refracted shear wave into the material at an angle of 45 degrees.

The transducer features an active element with dimensions of 8 x 9 mm, providing a focused ultrasonic beam for effective detection of discontinuities. It is equipped with a reliable Lemo 00 connector for secure and noise-free connection to your ultrasonic testing instrument.

Key Features:

• Single Element Angle Beam: Standard design for angled ultrasonic testing.

• Frequency: 4.0 MHz - A good balance of penetration and resolution for many applications.

• Refracted Angle: 45 degrees (in steel) - A versatile angle for detecting various flaw orientations.

• Element Size: 8 x 9 mm - Provides a focused beam.

• Connector: Lemo 00 - A robust and widely used connector type.

• Manufacturer: OKO-NDT - A reputable manufacturer of ultrasonic testing equipment.

Benefits:

• Effective Angled Inspection: The 45-degree angle is a common and effective choice for detecting a wide range of flaw orientations, particularly in weld inspection.

• Good Balance of Performance: The 4.0 MHz frequency offers a compromise between penetration capability and the ability to detect smaller defects.

• Compact and Easy to Use: The small element size allows for inspection in tighter areas.

• Reliable Connection: The Lemo 00 connector ensures a secure and stable connection to your instrument.

• Quality Manufacturing: Backed by the reputation of OKO-NDT.

Applications:

• Weld inspection, a very common angle for detecting various weld defects.

• Detection of cracks, porosity, and inclusions in various materials from an angled approach.

• General-purpose angled beam ultrasonic testing.
