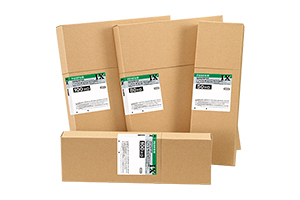

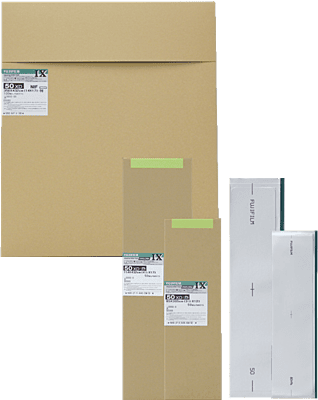

Fujifilm — Industrial X-Ray Film IX50XD
Industrial Radiographic Sheet Film, 3.5 in × 17 in, NIF ConfigurationSKU: 16778300
Overview
Fujifilm Industrial X-Ray Film IX50XD is designed for professional non-destructive testing applications requiring detailed radiographic imaging of internal component conditions. The film records variations in transmitted X-ray or gamma radiation, allowing inspectors to evaluate welds, castings, pipelines, pressure components, and other industrial materials.
The 3.5 in × 17 in sheet format is particularly suitable for elongated inspection areas, including pipeline welds, circumferential welds, structural joints, and narrow components. Its pre-cut dimensions reduce film preparation requirements and support consistent placement inside compatible cassettes and film holders.
Supplied in an NIF configuration, SKU 16778300 is intended for professional radiographic inspection programs in fabrication, construction, maintenance, manufacturing, and industrial QA/QC environments.
What's Included
| Item | Details |
|---|---|
| Industrial Radiographic Film | Fujifilm IX50XD |
| Film Format | Pre-cut sheets |
| Sheet Size | 3.5 in × 17 in |
| Packaging Configuration | NIF |
| Primary Use | Industrial X-ray and gamma-ray radiography |
| Inspection Method | Radiographic Testing / RT |
| Manufacturer | Fujifilm |
| SKU | 16778300 |
Note: Package sheet quantity, film cassettes, lead screens, processing chemicals, identification markers, and darkroom accessories should be confirmed separately.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 19.0 in |
| Width | 6.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 19.0 × 6.0 × 3.0 in |
| Weight | 6.0 lb |
Actual shipping dimensions and weight may vary depending on the package sheet quantity and protective packaging.
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Industrial radiographic film |
| Model | IX50XD |
| Film Format | Sheet |
| Sheet Width | 3.5 in |
| Sheet Length | 17 in |
| Metric Size | Approximately 89 × 432 mm |
| Packaging Designation | NIF |
| Imaging Method | Radiation-exposure film imaging |
| Compatible Radiation Sources | Suitable industrial X-ray and gamma-ray sources |
| Primary Use | Detection and documentation of internal discontinuities |
| Inspection Method | Radiographic Testing / RT |
| Intended Environment | Field, darkroom, fabrication, laboratory, and QA/QC |
| Manufacturer | Fujifilm |
| SKU | 16778300 |
Performance Features
Pre-Cut Sheet Format
Eliminates the need to cut film from a roll and supports consistent preparation for repeated inspection setups.
3.5 in × 17 in Dimensions
Provides an elongated imaging area suitable for pipeline welds, circumferential joints, narrow structures, and extended inspection zones.
Industrial Radiographic Imaging
Records transmitted radiation patterns to reveal internal discontinuities, material variations, and changes in component thickness.
X-Ray and Gamma-Ray Compatibility
Can be incorporated into approved industrial radiography procedures using suitable radiation sources and exposure techniques.
Permanent Inspection Record
Processed film provides a physical radiographic image that can be interpreted, documented, archived, and reviewed.
User-Friendly Design
Pre-cut sheets simplify film preparation
Consistent dimensions support repeatable cassette loading
Narrow format is practical for pipeline and weld inspection
Compatible with suitable flexible and rigid film holders
Reduces waste associated with cutting continuous film rolls
Supports field and laboratory radiography workflows
Suitable for manual or automatic film processing
Provides permanent inspection documentation
Built for Industrial Environments
Designed for professional non-destructive testing
Suitable for fabrication, construction, manufacturing, and maintenance
Practical for field and laboratory radiographic inspection
Supports examination of welds, castings, forgings, and structural components
Elongated sheet format accommodates narrow inspection geometries
Suitable for asset-integrity and quality-control programs
Must be protected from unintended radiation and visible-light exposure
Intended for use according to applicable radiographic procedures and safety requirements
Film Handling and Processing
Store unopened film in a cool, dry, radiation-controlled location
Protect film from heat, humidity, pressure, chemical vapors, and unintended exposure
Open and load film only under approved darkroom or safelight conditions
Handle sheets carefully by the edges
Avoid fingerprints, bending, scratching, or pressure damage
Load film into a compatible cassette or film holder
Use approved manual or automatic processing procedures
Maintain the specified development time and temperature
Wash and dry processed film thoroughly
Store completed radiographs according to applicable record-retention requirements
Compatibility
Compatible with:
Industrial X-ray inspection systems
Gamma-ray radiography sources
Flexible film cassettes
Rigid film holders
Lead intensifying screens
Radiographic identification markers
Manual film-processing tanks
Automatic industrial film processors
Compatible developer and fixer chemistry
Radiographic film viewers
Densitometers
Pipeline and weld inspection workflows
Exposure conditions, screen selection, processing chemistry, and source compatibility should be established according to the applicable inspection procedure.
Ideal Applications
Pipeline weld inspection
Circumferential weld radiography
Structural weld inspection
Pressure-vessel inspection
Boiler and heat-exchanger inspection
Casting evaluation
Forging inspection
Narrow component radiography
Aerospace component inspection
Power-generation equipment inspection
Fabrication QA/QC
Maintenance radiography
Internal discontinuity detection
Corrosion and wall-loss evaluation
Permanent radiographic documentation
Safety and Handling
Industrial radiography must be performed by trained and authorized personnel
Establish controlled areas and radiation boundaries before exposure
Use approved radiation survey meters and personal dosimetry
Prevent unauthorized entry into the exposure area
Protect unexposed film from radiation sources and visible light
Wear appropriate protection when handling processing chemicals
Follow applicable chemical safety documentation
Dispose of processing solutions according to applicable requirements
Store film away from moisture, excessive heat, and chemical contamination
Follow all applicable radiation-protection procedures and regulations
About Fujifilm
Fujifilm develops imaging products and materials for industrial radiography, medical imaging, photography, electronics, and specialized technical applications. Its industrial imaging products support non-destructive testing teams working in fabrication, manufacturing, energy, construction, transportation, maintenance, and quality control.
