Undercut / Pit Gauge CAT #5F
Stainless Steel Gauge for Measuring Undercuts and Pits from 0–2 mm SKU: CAT #5FOverview

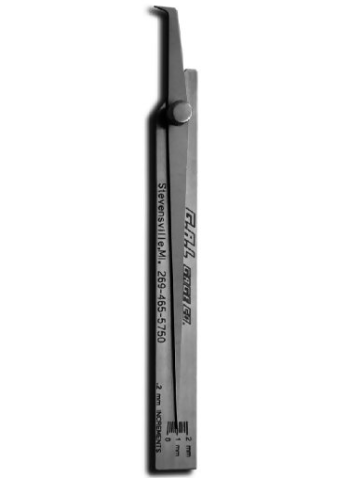

The CAT #5F Undercut / Pit Gauge is a compact inspection tool designed for measuring weld undercuts, pits, and surface discontinuities. Built from stainless steel, this gauge provides durability, corrosion resistance, and reliable performance in field, shop, and fabrication environments.
With a measurement range of 0–2 mm in 0.2 mm increments, this gauge allows inspectors to quickly evaluate the depth of undercuts and pits during weld inspection, corrosion assessment, and surface condition checks. Its simple scale design supports fast visual verification and practical field documentation.
Lightweight, durable, and easy to use, the CAT #5F is ideal for welders, inspectors, QA/QC personnel, and NDT professionals requiring a reliable manual gauge for routine inspection work.
What's Included
| Item | Details |
|---|---|
| Inspection Gauge | Stainless steel undercut / pit gauge, 0–2 mm range |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 1.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 1.0 in |
| Weight | 0.4 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Undercut / pit gauge |
| Model | CAT #5F |
| Measurement Range | 0–2 mm |
| Increments | 0.2 mm |
| Material | Stainless steel |
| Application | Undercut and pit measurement |
| SKU | CAT #5F |
Performance Features
0–2 mm Measurement Range
Allows inspection of weld undercuts, pits, and shallow surface defects.
0.2 mm Increments
Provides practical resolution for routine inspection and QA/QC documentation.
Stainless Steel Construction
Offers durability, corrosion resistance, and long service life.
Fast Visual Checking
Supports quick manual inspection of surface discontinuities.
User-Friendly Design
- Compact and easy to carry
- Simple manual measurement operation
- Easy-to-read metric increments
- Designed for efficient weld and surface inspection workflows
Built for Industrial Environments
- Durable stainless steel design
- Suitable for field, shop, and plant inspections
- Reliable for repeated daily use
- Built for professional QA/QC and NDT applications
Compatibility
Compatible with:
- Visual weld inspection procedures
- Fabrication QA/QC workflows
- Corrosion inspection programs
- Welding inspection kits
- Field maintenance inspection tasks
Ideal Applications
- Weld undercut measurement
- Pit depth checking
- Surface defect inspection
- Fabrication quality control
- Pipeline and structural weld inspection
- Maintenance and repair assessment
- General visual inspection workflows
About the Product
The CAT #5F Undercut / Pit Gauge is designed to provide quick, reliable measurement of undercuts and pits, helping inspectors verify surface conditions and support consistent weld inspection and QA/QC documentation.
