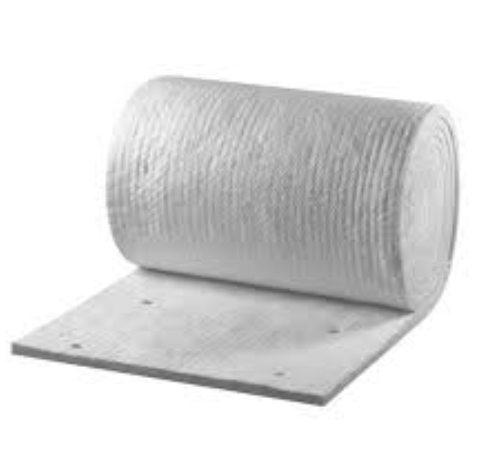

Unifrax Fiberfrax® Durablanket® S - High-Performance Ceramic Fiber Insulation

Unifrax Fiberfrax® Durablanket® S is a strong, lightweight, and flexible ceramic fiber insulating blanket designed for a wide range of high-temperature applications. Manufactured from spun ceramic fibers, this blanket offers exceptional handling strength, excellent hot strength, and superior thermal performance. Its needled construction, with long, cross-locked fibers, provides outstanding durability and resistance to tearing.

This specific offering is a #6 density (6 lbs/cubic foot) material, providing a balance of thermal conductivity and handling. The dimensions of this roll are 2 feet (24 inches) wide by 25 feet long by 1 inch thick, offering substantial coverage for your insulation needs.

Fiberfrax® Durablanket® S exhibits excellent thermal shock resistance, high heat reflectance, and excellent corrosion resistance, ensuring long-lasting and reliable insulation performance in demanding environments. It's an ideal solution for furnace linings, kiln insulation, reformer and boiler linings, and various other high-temperature industrial applications.

Key Benefits:

• High Temperature Performance: Excellent insulation up to 2300°F (1260°C) continuous use limit (based on Durablanket S specifications).

• Lightweight and Flexible: Easy to handle, cut, and install in various configurations.

• Excellent Handling Strength: Resists tearing and damage during installation and service.

• Low Thermal Conductivity: Provides efficient energy savings by minimizing heat loss.

• Thermal Shock Resistant: Withstands rapid temperature changes without degradation.

• Corrosion Resistant: Inert to most chemicals, ensuring longevity.

• #6 Density: Offers a good balance of thermal properties and handling characteristics.

Applications:

• Furnace, kiln, reformer, and boiler linings.

• Pressure and cryogenic vessel fire protection.

• Soaking pit seals.

• Glass furnace crown insulation.

• High-temperature gaskets and seals.

• Heat shields.

• Appliance insulation.

Approximate Dimensions:

• Width: 2 feet (24 inches)

• Length: 25 feet (300 inches)

• Thickness: 1 inch

Approximate Weight:

To calculate the approximate weight, we need the volume and density.

• Volume: 2 ft (width) x 25 ft (length) x 1/12 ft (thickness) = 50/12 cubic feet ≈ 4.17 cubic feet

• Density: 6 lbs per cubic foot

• Weight: 4.17 cubic feet x 6 lbs/cubic foot ≈ 25 lbs
