NM0325002

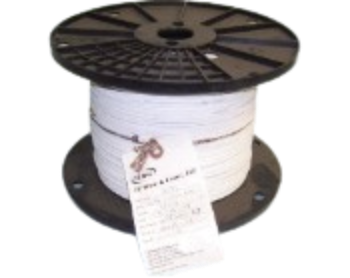

High-Performance High-Temp QQ20-K Type K Solid Thermocouple Wire - 1000 Ft (White Jacket)

For precise and reliable temperature measurement in extreme environments, choose this High-Temp QQ20-K Type K Solid Thermocouple Wire. Supplied on a generous 1000-foot spool, this wire is specifically engineered for demanding industrial applications where accuracy and durability are paramount, such as furnaces, kilns, heat treating, and other high-temperature processes.

Key Features & Benefits:

• Type K Thermocouple Calibration: Utilizes Chromel (+) and Alumel (-) alloys, offering a wide temperature measurement range from approximately -200°C to +1260°C (-328°F to +2300°F) (actual continuous and intermittent limits depend on insulation, but for high-temp QQ/fiberglass, expect continuous up to 950°F (480°C) or higher depending on the specific insulation grade, potentially to 1200°F (650°C) or even 1800°F (980°C) for specialized high-temp fiberglass/ceramic options). This makes it incredibly versatile for diverse high-temperature applications.

• 20 AWG Solid Conductors: Features robust 20 American Wire Gauge (AWG) solid conductors. Solid wire provides excellent mechanical strength and resistance to vibration, ensuring long-term stability and reliability in industrial settings.

• High-Temperature "QQ" Insulation (Likely Fiberglass/Braided): The "QQ" designation typically refers to a specialized, high-temperature, non-abrasive braided insulation (often fiberglass or ceramic fiber) impregnated with a high-temperature resin. This construction provides:

  • Superior Thermal Resistance: Designed to withstand continuous high temperatures.

  • Good Dielectric Strength: Maintains electrical integrity even at elevated temperatures.

  • Flexibility (Relative to Temperature): Offers good flexibility for installation, particularly for a solid wire at high temperatures.

  • Chemical Resistance: Impregnated with resins for improved resistance to moisture and some chemicals.

• 1000 Ft Spool: Provides a substantial length for multiple thermocouple fabrications, long runs, or extensive projects, reducing the need for splices and optimizing material use.

• Reliable Temperature Sensing: Type K thermocouples are known for their stable output, good linearity, and resistance to oxidation in high-temperature oxidizing atmospheres (below 1000°C).

• Versatile Applications: Ideal for a wide range of industrial temperature monitoring and control, including:

  • Industrial Furnaces and Ovens

  • Heat Treating Processes (e.g., annealing, tempering)

  • Glass and Ceramic Kilns

  • Foundries and Aluminum Processing

  • Boiler and Flue Gas Temperature Monitoring

  • Process Control and Automation

• Color-Coded (White Overall Jacket): The overall white jacket provides clear identification, making installation and maintenance straightforward. (Standard ANSI color coding for Type K is Yellow for positive, Red for negative, often with a Brown or Yellow overall jacket, but "White" indicates a specific high-temp insulation or manufacturer's code.)

Specifications:

• Thermocouple Type: K (Chromel/Alumel)

• Wire Gauge: 20 AWG (American Wire Gauge)

• Conductor Type: Solid

• Length: 1000 Feet (approx. 305 meters)

• Insulation Type: High-Temperature "QQ" (typically Fiberglass/Braided with resin impregnation)

• Overall Jacket Color: White

• Typical Continuous Operating Temperature Range: Up to 950°F (480°C) to 1200°F (650°C) or higher depending on specific insulation subclass (Always confirm with manufacturer's datasheet for exact limits based on "QQ" insulation grade).

• ANSI Color Code (Internal Wires): Yellow (+) / Red (-) (Though the overall jacket is white, the individual wires should follow ANSI code).
