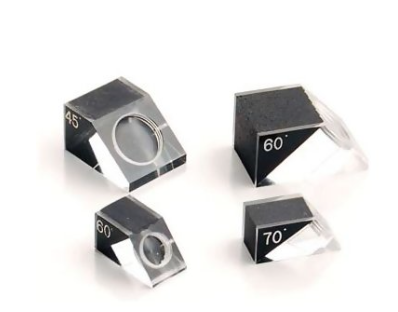

NM01QW2570

The DAKOTA STANDARD QUICK CHANGE WEDGE (QW) is a highly efficient accessory designed to streamline angle beam ultrasonic testing with transducers featuring a 1/4 inch (0.25") contact face. This innovative wedge allows for swift and effortless transducer changes, significantly boosting inspection productivity across a wide range of applications.

Engineered for optimal acoustic coupling, this wedge ensures the efficient and reliable transmission of ultrasonic energy into the material under inspection. When paired with a compatible 1/4" transducer and the appropriate couplant, it accurately refracts the ultrasonic beam at a precise 70-degree angle (calibrated for steel; the actual angle may vary slightly depending on the material's acoustic velocity).

The 70-degree refracted angle is a valuable choice for specific flaw detection applications, often used for detecting smaller defects or for optimizing signal reflection from certain discontinuity orientations. The intuitive "Quick Change" design enables rapid and simple attachment and detachment of transducers, minimizing valuable downtime during inspections where multiple angles or transducer types are required for comprehensive evaluation.

Manufactured by DAKOTA NDT, a trusted and established provider of ultrasonic testing equipment, this Standard Quick Change Wedge is built to withstand the rigors of demanding inspection environments, ensuring durability and reliable performance. Its precise dimensions and intended angle make it an invaluable component for achieving dependable and efficient results in numerous ultrasonic testing scenarios.

Key Selling Points:

• Innovative Quick Change Design: Enables rapid and effortless transducer swaps, maximizing inspection efficiency and throughput.

• Precise 70-Degree Refraction Angle: A valuable angle for specific flaw detection applications and optimizing signal reflection.

• Optimized Acoustic Coupling: Ensures efficient and reliable transmission of ultrasonic energy for accurate results.

• Specifically Designed for 1/4" Transducers: Provides a secure and acoustically sound connection for optimal performance.

• Robust Construction for Industrial Use: Built to withstand the demands of challenging inspection environments, ensuring longevity.

• From a Reputable Manufacturer (DAKOTA NDT): A trusted leader in the ultrasonic testing industry, known for quality and reliability.

• Significantly Enhances Productivity: Minimizes downtime associated with transducer changes, allowing for more inspections in less time.

Benefits:

• Dramatically Increases Inspection Speed: Rapid transducer changes save valuable inspection time, improving overall efficiency.

• Provides Specialized Flaw Detection Capabilities: The 70-degree angle is effective for specific defect orientations and smaller flaw detection.

• Ensures Reliable Acoustic Performance: Optimized coupling delivers strong and clear signals, leading to accurate and dependable detection.

• Offers User-Friendly Operation: The simple and efficient attachment and detachment mechanism makes transducer changes quick and easy.

• Guarantees Long-Lasting Durability: Built with high-quality materials to withstand repeated use in demanding industrial settings.

Applications:

This 70 Degree Standard Quick Change Wedge is a crucial accessory for a wide range of ultrasonic testing applications, including:

• Specialized weld inspection in fabrication, construction, and maintenance industries.

• Targeted flaw detection in metallic and composite materials across various sectors.

• Efficient detection and characterization of specific orientations of cracks, inclusions, and other discontinuities.

• Streamlined quality control processes in manufacturing environments where time is critical and specific angles are required.

• Field inspections of pipelines, pressure vessels, and other critical infrastructure requiring rapid and versatile testing capabilities with a steeper angle.

The DAKOTA NDT STANDARD QUICK CHANGE WEDGE (QW), 1/4", 70 Degree is an essential tool for ultrasonic testing professionals seeking a high-performance, efficient, and durable solution for angled beam inspections, particularly when rapid transducer changes and a steeper 70-degree angle are paramount for maximizing productivity and addressing specific inspection requirements.
