DeFelsko PosiTest HHD High Voltage Holiday Detector Kit
SKU: HHDKIT
A stick-type pulsed DC holiday detector with adjustable output from 0.5 to 35 kV, for finding holidays, pinholes, porosity and other discontinuities in coatings up to 20 mm (780 mils) thick, supplied as a complete kit in a Pelican Storm case.
| 0.5–35 kVPulsed DC output | 20 mmCoatings up to 780 mils | ±5%Voltage accuracy | 2 yearsWarranty |
The DeFelsko PosiTest HHD is a high voltage holiday detector that uses pulsed DC to detect holidays, porosity, pinholes, leaks and other discontinuities in coatings, linings and membranes on metal and concrete. Its user-adjustable output from 0.5 to 35 kV covers coatings up to 20 mm (780 mils) thick, based on NACE SP0274-2011 recommendations.

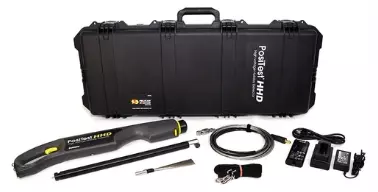

The regulated output won't change under load, and a built-in certified voltmeter displays and regulates the voltage at the electrode to ±5%. This complete kit adds a Pelican Storm extreme-duty case, a 72 Wh Li-ion battery, a 50 cm (20") electrode rod and a shoulder strap. It conforms to ASTM, ISO, NACE and AS standards.
See It in Action
▶ Watch: Testing Coatings for Pinholes and Voids
Key Features
 | Find holidays before they become corrosionSmall areas of thin or missing coating can be invisible to the naked eye, but they quickly become foci for corrosion. As the charged electrode passes over a holiday, current flows to the substrate and returns through the ground cable, triggering a strobe light and a loud audible alarm that stays audible in noisy environments. |
Stick-type or wand: your choiceThe ergonomic two-handed stick-type design is comfortable for all-day use. The optional handheld wand converts it into a wand configuration for hard-to-reach areas (suitable below 15 kV), making the PosiTest HHD the first combination stick and wand instrument on the market. Pulse technology also prevents charge buildup on the surface and allows grounding with a trailing lead. |  |
 | Extensive electrode optionsChoose from rolling spring electrodes from 10 to 91 cm (4 to 36") for pipe, flat wire brushes from 5 to 120 cm (2 to 48"), half-circle brushes, conductive rubber paddles or the included fan brush. Custom sizes are available on request, and adaptors connect electrodes from SPY, PCWI, Tinker & Rasor and 266/280. |
Built for the Field
Voltage calculator
Choose one of 11 international standards, enter the coating thickness, and the detector automatically calculates the required test voltage.
Built-in certified voltmeter
An integrated crest meter (jeep meter) displays and regulates the voltage at the electrode, and a Long Form Certificate of Calibration traceable to NIST is included.
Safe by design
A press-and-hold safety trigger helps prevent accidental high voltage generation. The detector is shock proof and creep proof, internally sealed to minimize creep distance to high voltage components, and designed in accordance with IEC 61010-1.
Easy to use
A bright color LCD, an adjustable audio alarm mode and a lightweight, ergonomic design reduce operator fatigue during long inspections.
Rugged and long-running
The environmentally sealed ABS enclosure is weatherproof, dustproof and shockproof. The kit's removable 72 Wh smart Li-ion battery is the largest in the PosiTest HHD range, and everything travels in a Pelican Storm extreme-duty waterproof case with custom foam.
Specifications
| General | |
| Manufacturer | DeFelsko |
|---|---|
| Model | PosiTest HHD Kit (stick-type) |
| SKU | HHDKIT |
| Instrument type | High voltage pulsed DC holiday detector |
| Warranty | 2 years |
| Shipping dimensions (estimated) | 1067 × 508 × 229 mm (42.0 × 20.0 × 9.0 in) |
| Shipping weight (estimated) | 13.6 kg (30 lb) |
| Output | |
| DC output | Pulsed, regulated (won't change under load) |
| Output voltage range | 0.5 to 35 kV |
| Voltage adjustment | 10 V steps from 0.5 to 1 kV; 100 V steps above 1 kV |
| Output accuracy | ±5% |
| Pulse duration | 10 µs |
| Pulse repetition rate | 30 Hz |
| Coating thickness range | Up to 20 mm (780 mils), based on NACE SP0274-2011 recommendations |
| Voltage calculator | 11 international standards |
| Alarms | Strobe light and loud audible alarm; adjustable audio mode |
| Physical & Power | |
| Battery | Removable 72 Wh smart Li-ion; run time depends on voltage and electrode |
| Unit size | 64 × 6.4 × 13 cm (25 × 2.5 × 5 in) |
| Unit weight | 1.6 kg (3.6 lb) with 72 Wh battery, no electrodes |
| Electrode rod | 50 cm (20") included |
| Enclosure | Environmentally sealed ABS; weatherproof, dustproof and shockproof |
| Operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Case | Pelican Storm extreme-duty waterproof case, 101 × 46 × 18 cm (40 × 18 × 7 in) |
| Safety & Standards | |
| Safety | Press-and-hold safety trigger; shock proof and creep proof; designed in accordance with IEC 61010-1 |
| Conforms to | ASTM D4787/D5162/D6747/D7953/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1 |
| Calibration | Built-in certified voltmeter; Long Form Certificate of Calibration traceable to NIST |
| Electrode compatibility | DeFelsko electrodes; SPY, PCWI, Tinker & Rasor and 266/280 with adaptors |
What's in the Box
 |
Standard DeFelsko package. Contents can vary by package, so contact us to confirm what ships with your order. |
Complete your holiday testing setup
Add rolling spring electrodes for pipe, flat wire brushes for tanks and plate, the handheld wand, and a spare 72 Wh battery. Some standards call for a standalone voltmeter, so add the PosiTest HHD Verifier. A PosiTector 6000 coating thickness gage measures the coating thickness you need for the voltage calculator.
Applications
The PosiTest HHD detects coating defects on metal and concrete wherever coating performance is critical.
| ✓ Pipeline coatings (ASTM G62) | ✓ Tank and vessel linings |
| ✓ Coatings on concrete | ✓ Geomembranes, ponds and landfill liners |
| ✓ Marine and offshore structures | ✓ Roofing and construction membranes |
| ✓ Protective coatings on steel | ✓ Mining and water containment |
