NM01RAPTORCIS10U
The RAPTOR Corrosion Inspection System Complete Package 10", manufactured by NDT Systems, is a comprehensive solution for detailed ultrasonic corrosion mapping and thickness measurement. This system provides a portable and efficient means of assessing corrosion damage in various industrial applications.
Key Components:

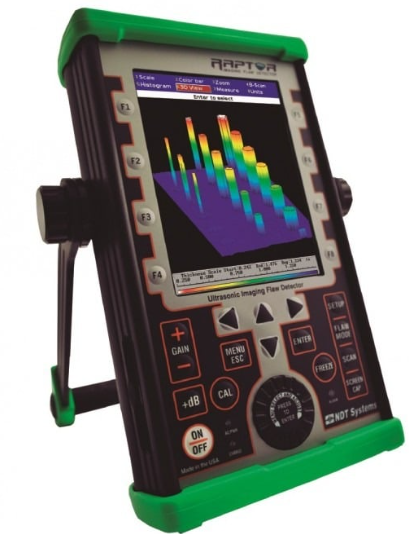

Main Unit: This is the core component of the system, housing the processing electronics, data acquisition, and display interfaces.
Scanner RCA-10: A 10-inch wide scanner designed for efficient corrosion mapping, utilizing ultrasonic transducers to collect thickness data across a defined area.
Scanner Armadillo: An additional scanner included in the package, tailored for specific inspection geometries or applications, potentially for confined spaces.
15' Umbilical Cable: This cable facilitates communication between the scanners and the main unit, transmitting data and power, and providing flexibility for inspection reach.
Carrying Case: A rugged carrying case is included for safe and convenient transport and storage of the system components.
NDT Systems Manufacturing: This system is produced by NDT Systems, a company specializing in non-destructive testing equipment.
Applications:
Corrosion Mapping and Assessment: Enables the creation of detailed corrosion maps for pipelines, tanks, pressure vessels, and other critical structures.
Thickness Measurement for Corrosion Evaluation: Provides accurate wall thickness measurements to assess the extent of corrosion damage.
Asset Integrity Management: Supports asset integrity programs by providing data for corrosion monitoring and predicting remaining service life.
Industrial Infrastructure Inspection: Used in industries such as oil and gas, chemical processing, and power generation for inspecting critical infrastructure.
Importance:
Comprehensive Corrosion Analysis: Delivers detailed corrosion mapping and thickness measurement data for thorough analysis.
Portability for Field Inspections: The system's portability allows for on-site inspections in various locations.
Efficient Data Acquisition: Automated scanning and data collection improve inspection efficiency and reduce inspection time.
