NM01X1520000

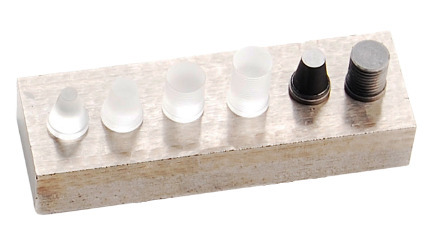

The Dakota NDT 1/16” Dia. x .450 L Acrylic Delay Tip (Pencil) is a highly specialized and replaceable accessory meticulously engineered for use with compatible single element ultrasonic transducers in applications demanding the ultimate in near-surface resolution within the most confined and challenging access areas. Precision-machined from premium acrylic, this ultra-slim "pencil-style" delay tip features a remarkably narrow 0.0625-inch (1/16") diameter and a precise length of 0.450 inches.

The extremely slender profile of this delay tip enables exceptionally focused ultrasonic coupling in the tightest of spaces, such as intricate corners, narrow grooves, and areas with minimal surface contact. By introducing a precise and optimized time delay between the transducer element and the test material, it achieves the most effective separation of the initial excitation pulse from even the closest near-surface echoes. This critical isolation dramatically improves the ability to accurately measure the thickness of ultra-thin materials and detect the most minute shallow flaws that would be completely undetectable with standard transducers. The high-quality acrylic material ensures efficient ultrasonic transmission with minimal signal loss, providing unparalleled performance in the most demanding inspection scenarios. As a readily replaceable component, this delay tip also provides crucial protection for the delicate transducer element from damage during contact scanning in these highly restricted access areas.

Key Selling Points:

• Ultra-Fine "Pencil" Design: The incredibly narrow 1/16" diameter allows for the most precise coupling in extremely tight, intricate, and hard-to-reach inspection areas.

• Maximum Near-Surface Resolution in Severely Confined Spaces: Achieves the ultimate separation of the initial pulse, providing unmatched clarity for near-surface evaluation and accurate measurements of ultra-thin materials where access is severely limited.

• Ideal for Ultra-Thin Materials in Extremely Restricted Geometries: Enables reliable and accurate thickness readings on the thinnest of components even within the most challenging access constraints.

• Critical Transducer Protection in the Most Demanding Applications: The replaceable acrylic tip acts as a vital sacrificial wear surface, significantly extending the life of the transducer element when used in the tightest and most awkward scanning positions.

• Premium Acrylic Construction for Uncompromised Signal Transmission: Ensures the most efficient and reliable ultrasonic transmission with minimal signal attenuation, maximizing data integrity in critical inspections.

• Engineered for Ultimate Compatibility: Specifically designed for optimal performance with compatible Dakota Ultrasonics transducers, ensuring the highest level of accuracy and reliability in the most demanding applications.

Benefits:

• Unlocks Measurement Capabilities in the Most Inaccessible Spaces: The ultra-fine diameter provides access to inspection areas previously considered impossible to reach with ultrasonic techniques.

• Achieve Unrivaled Accuracy on Ultra-Thin Materials in Severely Confined Areas: Delivers the most reliable and precise thickness readings on the thinnest of components even with the most extreme access limitations.

• Detect the Smallest, Most Elusive Shallow Imperfections in the Tightest Spots: The meticulously engineered delay allows for the clearest identification of near-surface defects in the most challenging-to-reach locations.

• Significantly Reduces Transducer Replacement Costs in the Most Demanding Applications: By acting as a durable wear face, the delay tip substantially prolongs the operational life of the transducer element when used in the tightest and most awkward scanning positions, offering the greatest potential for cost savings.

Approximate Dimensions (inches):

• Diameter: 0.0625 inches (1/16")

• Length: 0.450 inches

• Material: Acrylic

Applications:

This 1/16” Dia. x .450 L acrylic delay tip (pencil) is the ultimate solution for ultrasonic thickness gauging and flaw detection applications requiring access to the most extremely tight or confined areas and demanding the absolute highest level of near-surface resolution, including:

• The most precise thickness measurement of ultra-thin-walled materials within the most intricate corners, narrowest grooves, and other severely restricted geometries.

• High-resolution inspection for the smallest, most elusive shallow cracks, pits, and other near-surface defects in the most challenging-to-reach locations.

• Any application where the absolute clearest possible separation of the initial pulse from the first returning echoes is critical for obtaining accurate readings within the most extremely confined spaces.

• Absolutely essential for use with compatible Dakota Ultrasonics transducers in industries such as aerospace, electronics, medical device manufacturing, and other high-precision sectors where access to critical inspection points can be virtually impossible for standard probes.
