CT — W15-N60S Standard Phased Array Wedge (60° Shear Wave, 1.315" AOD)
Irrigated Normal Scan PAUT Wedge for A15 Angle Beam Probe Applications SKU: W15-N60S-1.315-AODOverview

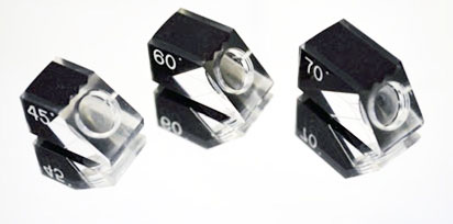

The CT W15-N60S Standard Wedge is a precision ultrasonic phased array wedge designed for use with A15 angle beam phased-array probes. Configured for 60° shear wave inspection, this wedge supports reliable weld inspection, flaw detection, and encoded scanning on curved outside diameter surfaces.
Featuring a 1.315" AOD radius, the wedge is optimized for normal scan inspection on small pipe and cylindrical components. Its curved contact surface helps maintain stable coupling and consistent beam entry during phased array ultrasonic testing.
Built with the IH option, this wedge includes irrigation holes for couplant delivery and is supplied without carbides. This configuration supports smoother scanning, improved acoustic coupling, and efficient inspection performance in professional NDT workflows.
What's Included
| Item | Details |
|---|---|
| PAUT Wedge | W15-N60S standard wedge, 60° shear wave, 1.315" AOD |
| Irrigation Feature | IH option with irrigation holes, without carbides |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 5.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 5.0 × 3.0 in |
| Weight | 0.8 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Phased array wedge |
| Model | W15-N60S |
| Probe Compatibility | A15 angle beam phased-array probe |
| Scan Type | Normal scan |
| Beam Type | Shear wave |
| Angle | 60° |
| Radius | 1.315" AOD |
| Option | IH — irrigation holes, without carbides |
| Application | PAUT weld and curved surface inspection |
| Manufacturer | CT |
| SKU | W15-N60S-1.315-AOD |
Performance Features
60° Shear Wave Inspection
Supports weld inspection and detection of internal discontinuities.
1.315" AOD Radius
Designed for stable contact on small curved outside diameter surfaces.
Normal Scan Configuration
Optimized for standard PAUT scanning workflows on pipe and cylindrical components.
Integrated Irrigation Holes
Provides couplant delivery support for smoother scanning and improved signal consistency.
User-Friendly Design
- Designed for A15 phased-array probes
- Curved profile for improved contact on 1.315" AOD surfaces
- Irrigation holes support efficient couplant flow
- Built without carbides for standard scanning applications
Built for Industrial Environments
- Durable construction for repeated inspection use
- Reliable performance in field and shop conditions
- Suitable for weld, pipe, and vessel inspection
- Designed for professional phased array NDT workflows
Compatibility
Compatible with:
- A15 angle beam phased-array probes
- Phased array ultrasonic testing systems
- Normal scan PAUT inspection setups
- Irrigated wedge and couplant delivery workflows
- Small pipe and curved surface ultrasonic inspections
Ideal Applications
- Phased array weld inspection
- Small pipe and tube inspection
- Curved OD surface scanning
- Pressure vessel inspection
- Oil & gas and power generation inspection
- Fabrication and manufacturing QA/QC
- General 60° shear wave PAUT applications
About the Product
The W15-N60S 1.315" AOD Wedge is designed to provide reliable phased array shear wave inspection performance on small curved outside diameter surfaces, helping inspectors achieve stable coupling, accurate beam entry, and repeatable flaw detection results.
