Magnafield UV LED Attachment | For YokeLite Series
Wireless, High-Intensity Fluorescent Inspection Solution

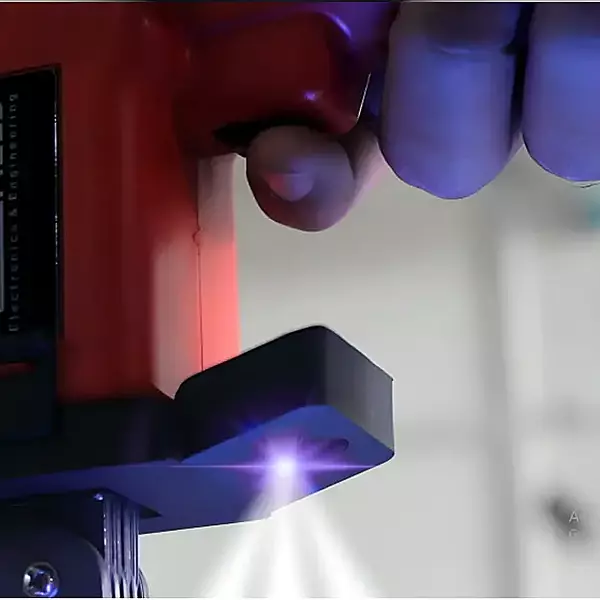

The Magnafield UV Light Attachment is a cutting-edge accessory designed for use with the YokeLite AC electromagnetic yoke. This innovative attachment eliminates the need for a secondary UV torch or a second operator, allowing for true one-handed fluorescent magnetic particle inspection (MPI). Utilizing advanced LED technology, it provides a consistent, high-intensity UV-A beam focused exactly where the magnetic field is strongest.
Key Performance Features
Wireless "Snap-On" Design: The attachment is completely wireless and self-contained, clipping onto the YokeLite body in seconds. This reduces cable clutter and improves mobility in tight spaces like tank interiors or offshore structures.
High-Intensity UV-A Output: Delivers a concentrated beam of approximately $2,500$$\mu$W/cm² at 15 inches, ensuring that even the most minute fluorescent indications are brilliant and easy to identify.
Synchronized Illumination: Engineered to work in tandem with the yoke's operation, providing instant-on UV light the moment the technician is ready to inspect the magnetized area.
Lightweight & Ergonomic: Weighing less than 100 grams, the attachment does not significantly alter the balance of the yoke, reducing operator fatigue during long shifts.
Pure UV-A Spectrum: Operates at a peak wavelength of $365$ nm, filtered to ensure minimal visible light emission (less than 20 lux), meeting strict NDT dark-room requirements.
Technical Specifications
| Feature | Specification |
| Compatibility | Magnafield YokeLite (AC Yoke) |
| Light Source | High-Power UV-A LED |
| Peak Wavelength | $365$ nm ± 5 nm |
| UV-A Intensity | ~$2,500$$\mu$W/cm² at 15" ($38$ cm) |
| Beam Coverage | ~6 inches ($150$ mm) diameter |
| Weight | < 100 grams |
| Power Source | Wireless / Induction-based |
Advantages of the YokeLite System
The Magnafield system is unique because it allows the inspector to switch between the UV Light Attachment and a White Light Attachment depending on the particles being used (fluorescent vs. visible).
Safety: Allows the operator to keep one hand free for stabilizing themselves while working on ladders or scaffolding.
Efficiency: Speeds up the inspection process by $30–50\%$ by eliminating the "torch-and-yoke" juggle.
Durability: Housed in a rugged, impact-resistant casing designed to withstand the vibration and magnetic fields of an AC yoke.
Expert Insight: When using the UV attachment, always ensure your UV-absorbing safety glasses are worn. This not only protects your eyes but also filters out "UV haze," making the yellow-green indications appear much sharper against the background.
SKU: UVLIGHT
