NM01ADLDU110
Tags:

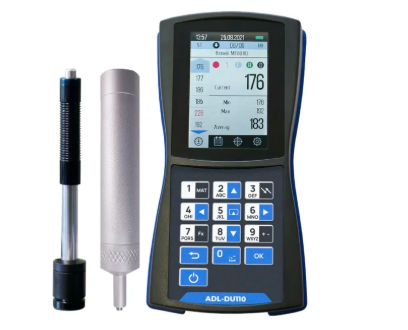

Universal hardness tester ADL DU110 with UCI probe (5 kg) and Dynamic (Leeb) probe "D", ADELIX Standard kit ADL DU110: - Measurement block ADL DU 110 - UCI probe (5 kg) - Dynamic (Leeb) probe "D" type - Reference block in Rockwell C - Charging adapter - Cable micro-USB - Bag for storage - Carrying case - Manual - Software
$2,799.00
Choose Quantity
Product Details
The universal hardness tester is used for various tasks. It is well applicable for measuring carbon and structural steels, surface-hardened products, heat-resistant, corrosion-resistant, stainless steels, galvanized coatings, hardfacing, products of complex configuration, thin-walled and compact products.
Technical Details:
| Parameter | Value |
| Measurement range on the main scales | |
| Rockwell | 20 – 70 HRC |
| Brinell | 30 – 650 HB |
| Vickers | 230 – 940 HV |
| Measurement error (Regulated by ISO standards) | |
| Rockwell | 2 HRC |
| Brinell, in the range: 90-180 HB 180-250 HB 250-460 HB | 10 HB 15 HB 20 HB |
| Vickers, in the range: 240-500 HV 500-800 HV 800-940 HV | 15 HV 20 HV 25 HV |
| Diameter of the platform for installing the sensor | |
| For ultrasonic sensor: | from 1 mm on the plane, from 5 mm in a blind hole (groove) |
| For dynamic sensor: | from 21 mm on the plane, (from 15 mm, depending on washer type) |
| Roughness (different sensors may work with different product roughness) | |
| Ultrasonic | 1,6 Ra |
| Dynamic | for sensor type “D” – 3.2 Ra for sensor type “G” – 7.2 Ra for sensor type “E” – 3.2 Ra |
| Main technical characteristics | |
| Scale conversion | It is possible to convert the measured hardness into different scales |
| Programmable scales | More than 500 additional scales |
| Calculations | Average value for 1 – 20 measurements Minimum, maximum, average value Finding Incorrect Measurement Results |
| Construction of graphs | All points from the series that were taken into account in the calculation of the average value |
| Device body | Shockproof plastic body, protected from falls with rubberized inserts |
| Working temperature | – 20 … +45 °С |
| Display | LCD TFT 3.5’’, 320х480 px |
| Language | Ukrainian, English, Russian |
| PC connection | USB-C, customization and processing |
| Instrument power supply | Built-in battery |
| Overall dimensions | 185x93x36 mm |
| Weight | 0.35 kg |
