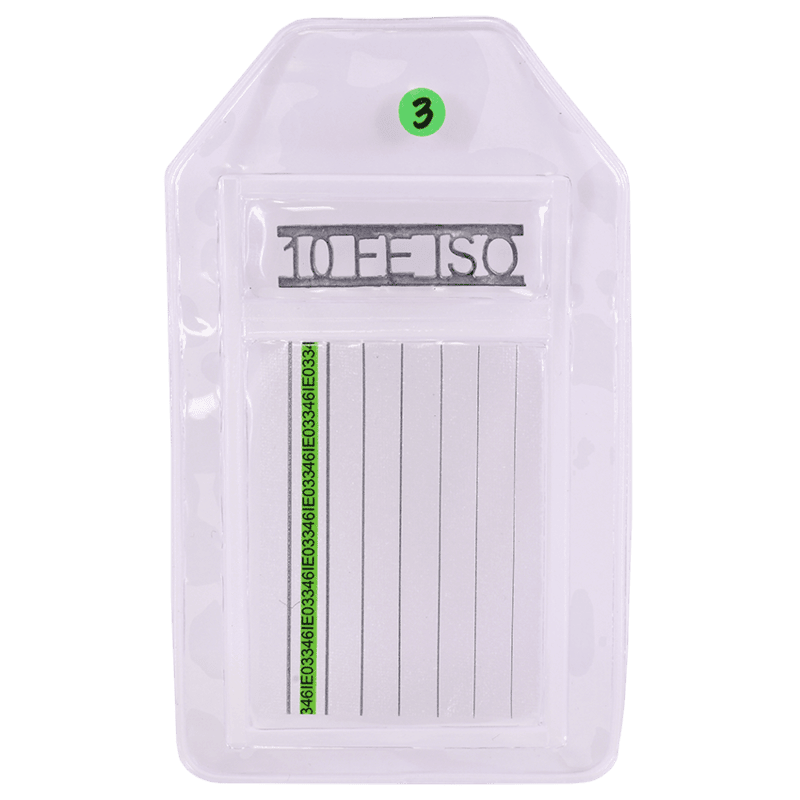

The IQI Wire Type EN-462-1 & DIN 54 109 provides reliable and accurate sensitivity verification in radiographic testing, ensuring compliance with EN and ISO standards. The EN-462-1 and ISO19232-1 replace the previous DIN 54,109 standard, providing enhanced quality assurance for non-destructive testing. Made from high-grade materials such as Steel, Aluminum, Copper, and Titanium, these IQIs are essential tools for NDT practitioners, facilitating precise defect detection through a series of wire diameters categorized into EN ranges.
Available IQI Sizes and Materials:
- Steel, Aluminum, and Copper: Available in 1 EN, 6 EN, 10 EN, and 13 EN
- Titanium: Available in 6 EN, 10 EN, and 13 EN
- Lead Symbol: Indicates largest wire diameter, material, and EN specification
Wire Identity and Diameter:
Each IQI includes a series of wires with defined diameters and identity numbers, ensuring reliable coverage and accuracy in thickness ranges.
| Size | Thickness Range | Example Wire Diameters |
|---|---|---|
| 1 EN | 1.6 - 6.0 in (40 - 160 mm) | .1259" (3.20 mm), .0629" (1.60 mm) |
| 6 EN | 0.5 - 2.0 in (12.5 - 50 mm) | .0393" (1.00 mm), .0157" (0.40 mm) |
| 10 EN | 0.2 - 0.75 in (5.0 - 20 mm) | .0157" (0.40 mm), .0063" (0.16 mm) |
| 13 EN | 0.1 - 0.4 in (2.5 - 10 mm) | .0078" (0.20 mm), .0039" (0.10 mm) |
These IQI sizes provide comprehensive coverage for various testing applications, accommodating materials of different densities and thicknesses.
Key Features:
- Standardized Compliance: Meets EN-462-1, ISO19232-1, and DIN 54,109 standards
- Precision Wire Diameters: Subdivided into EN ranges for specific thickness
- Durable Materials: Available in steel, aluminum, copper, and titanium
- Efficient Defect Detection: Ideal for precise radiographic sensitivity verification
