NM01XXG3505
XXG-3505 NDT Flaw Detector Ceramic tube, Radiation Coverge: 40°+5°, Max. penetration: 60mm, Tube Voltage: 180-350Kv, Tube Current: 5mA, Voltage: AC198-242V/50-60Hz, Intermittent working 5min,working, 5min rest (Duty cycle 50%), Dimensions 340x340x670, Weight 38Kgs, XINLI SKU: XXG-3505
Choose Quantity

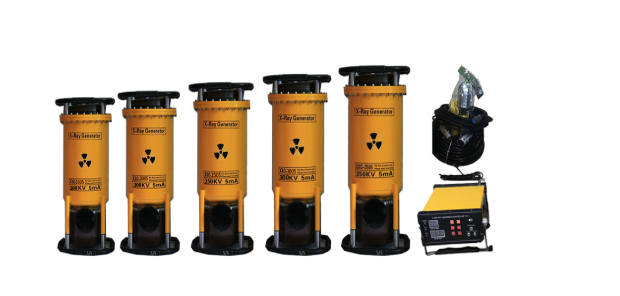

XINLI — XXG-3505 NDT X-Ray Flaw Detector (Ceramic Tube)
Portable High-Power Directional Radiography System for Industrial Inspection SKU: XXG-3505Overview
The XINLI XXG-3505 NDT Flaw Detector is a portable industrial X-ray system designed for high-power radiographic inspection of welds, castings, pipelines, pressure vessels, and structural components. Equipped with a ceramic X-ray tube, this unit delivers stable output and strong penetration capability for demanding non-destructive testing applications.
With a tube voltage range of 180–350 kV and a tube current of 5 mA, the XXG-3505 provides enhanced inspection power for thicker materials. Its maximum penetration capability of 60 mm and radiation coverage of 40° + 5° make it suitable for directional exposure applications where controlled beam output and deep penetration are required.
Built for field and workshop use, the system operates on AC 198–242V, 50/60 Hz power and features an intermittent duty cycle of 5 minutes working and 5 minutes rest, supporting reliable performance during industrial radiography workflows.
What's Included
| Item | Details |
|---|---|
| X-Ray Generator | XXG-3505 ceramic tube flaw detector |
| Controller | Control unit for exposure operation |
| Cables | Power and connection cables |
| Documentation | User manual / operating instructions |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 15.0 in |
| Width | 15.0 in |
| Height | 30.5 in |
| Dimensions (L × W × H) | 15.0 × 15.0 × 30.5 in |
| Weight | 88.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Portable X-ray flaw detector |
| Model | XXG-3505 |
| Tube Type | Ceramic tube |
| Tube Voltage | 180–350 kV |
| Tube Current | 5 mA |
| Maximum Penetration | 60 mm |
| Radiation Coverage | 40° + 5° |
| Input Voltage | AC 198–242V, 50/60 Hz |
| Duty Cycle | 5 min working / 5 min rest |
| Dimensions | 340 × 340 × 670 mm |
| Weight | 38 kg |
Performance Features
High Penetration Capability
Provides up to 60 mm penetration for demanding industrial radiographic inspections.
Ceramic Tube Technology
Supports stable X-ray output and dependable long-term performance.
Directional Radiation Coverage
40° + 5° beam coverage allows controlled exposure for targeted inspection areas.
350 kV Output Range
Adjustable 180–350 kV voltage range supports inspection of thicker materials and heavy-duty components.
User-Friendly Design
- Portable design for field radiography
- Controlled directional exposure
- Compatible with standard radiography workflows
- Designed for efficient industrial inspection setup
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and shop inspections
- Reliable intermittent operation
- Designed for professional NDT radiography use
Compatibility
Compatible with:
- Industrial X-ray film systems
- Digital radiography (DR) and computed radiography (CR) workflows
- Radiographic accessories such as cassettes, IQIs, and markers
- Weld, pipe, casting, and structural inspection setups
Ideal Applications
- Weld inspection and flaw detection
- Pipeline and pressure vessel radiography
- Casting and fabrication inspection
- Oil & gas and petrochemical industries
- Power generation and heavy manufacturing
- High-penetration industrial radiographic testing (RT)
About XINLI
XINLI manufactures industrial X-ray inspection systems designed for non-destructive testing applications. Their portable flaw detectors are widely used in radiography workflows where penetration capability, durability, and reliable performance are essential.
