NM018118004510

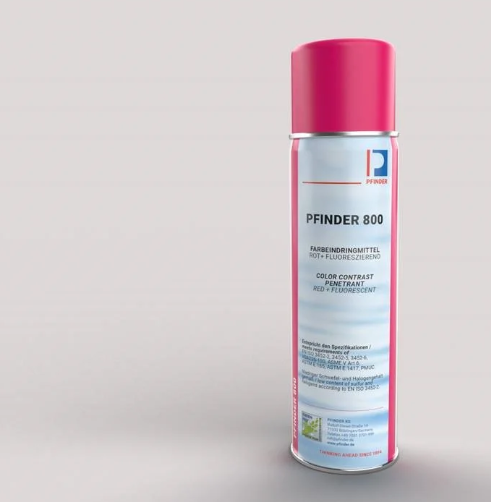

PFINDER 800 is a hydrocarbon-free, directly water-washable fluorescent penetrant for crack detection of surfaces. PFINDER 800 is readily biodegradable according to ISO 9888 / Zahn-Wellens-EMPA test (OECD 302 B). Details and test report available on request.

Due to its removability PFINDER 800 provides only a low residual background even on rough surfaces and therefore a user-friendly interpretability of the indications.

PFINDER 800 is qualified for penetrant testing at temperatures between – 20 °C to + 100 °C (temperature of work part) according to EN ISO 3452-5 and EN ISO 3452-6.

Type II+III / sensitivity level 2

• Readily biodegradable – no waste water treatment required.

• Bright, sharp indications with high contrast.

• Easy rinsability = low background fluorescence.

Penetrant type II+III according DIN EN ISO 3452-1.
Use: Type II+III, Method A+C, Form a, b, c, e,

APPLICATION

The capability of the penetrant system should be checked regularly by means of own reference pieces or e.g. reference test block 2 according EN ISO 3452-3.

For applications at temperatures below + 10 °C and above + 50 °C, penetration time has to be adapted as follows:
+ 100 °C to + 50 °C: penetration time up to 15 minutes
+ 50 °C to + 10 °C: according DIN EN ISO 3452-1 and EN ISO 3452-2
+ 10 °C to 0 °C: usual penetration time x 2
0 °C to – 10 °C: usual penetration time x 3
– 10 °C to – 20 °C: usual penetration time x 4

Values are referring to the temperature of the working part. Aerosol spray cans must not be warmed up above + 50 °C.

YOUR GREEN NDT BENEFITS

| Readily biodegradable – no waste water treatment required
| Free of aromatics and azo compounds
| Aerosol spray can with minimized carbon footprint

YOUR HANDLING + COST SAVING BENEFITS

| Bright, sharp indications with high contrast
| Easy rinsability = low background flourescence
| Reduced consumption due to low viscosity
