NM01FG3663

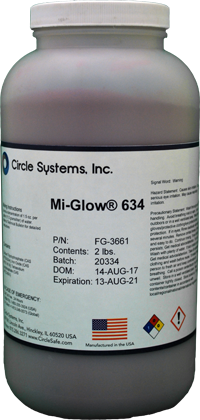

Circle Safe MI-Glow 634 Dual Response Water Based Particles - 1kg Jar

Circle Safe MI-Glow 634 is a high-quality, dual-response magnetic particle inspection powder designed for use in water-based magnetic particle testing. Supplied in a convenient 1kg jar, this product features red particles mixed with a powdered wetting agent, making it ideal for detecting discontinuities in structural fabrications and weldments under visible light. Additionally, its dual-response capability allows for enhanced indication visibility when used with UV-A or blue light.

Key Features:

• Dual Response: Provides clear red indications under white light and enhances visibility under UV-A or blue light for increased inspection flexibility.

• Water Based: Specifically formulated for use in water media, offering a cost-effective and often more environmentally friendly inspection solution.

• Pre-Mixed: Consists of Mi-Glow 601 red particles premixed with Wetting Agent 34 for optimal performance and ease of use.

• High Sensitivity: The superior Mi-Glow 601 particles offer a large surface area, resulting in smaller sized particles with increased sensitivity and brightness for clearer indications.

• Borate Free: The wetting agent is borate-free, addressing potential safety concerns.

• Low Foaming: Contains well-controlled water conditioning agents to minimize foaming during use.

• Tightly Bonded Particles: Circle Systems' unique bonding method ensures total particle encapsulation, eliminating free unbonded pigment and resulting in low background and high-performing inspections.

• Meets Industry Specifications: Particles meet or exceed all relevant industry specifications.

• Convenient 1kg Jar: Provides a manageable quantity for various inspection volumes.

Benefits for Your MPI Inspections:

• Versatile Inspection: Effective under both visible and UV-A/blue light.

• Easy to Use: Pre-mixed formula simplifies preparation.

• High Contrast Indications: Red particles provide clear indications under white light.

• Enhanced Detection: Dual response capability maximizes flaw visibility.

• Environmentally Conscious Option: Water-based formula.
