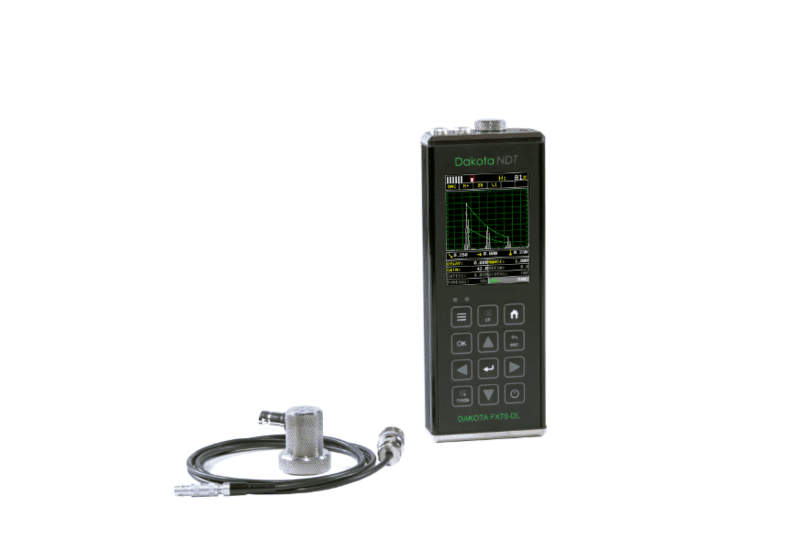

The Dakota NDT FX70-DL Dual UT Thickness Gauge and Flaw Detector (formerly DFX-7) is a cutting-edge, handheld instrument that seamlessly integrates advanced ultrasonic flaw detection with precise material thickness measurement. Featuring a vibrant AMOLED VGA color display, the FX70-DL delivers exceptional clarity and visibility for effortless interpretation of A-Scans, B-Scans, and thickness readings, even in bright sunlight.
This powerful two-in-one instrument is engineered for a wide spectrum of inspection applications, enabling users to accurately measure material thickness (with or without coatings), pinpoint pits and flaws, and conduct detailed flaw characterization. In thickness gauge mode, it offers simultaneous material and coating thickness measurements. In flaw detector mode, it provides comprehensive tools for detecting, sizing, and positioning flaws, as well as differentiating flaw types across diverse materials and welded joints.
The FX70-DL boasts a broad frequency bandwidth (1.8 - 19 MHz), ensuring optimal transducer selection for various materials and inspection demands. It offers multiple versatile measurement modes for both thickness gauging (including Pulse-Echo, Echo-Echo, Coating Thickness) and flaw detection (Pulse-Echo). Advanced features such as automatic probe zero, recognition, and temperature compensation, coupled with a high-speed scan mode (up to 50 readings per second), maximize inspection efficiency and accuracy.
With a substantial 4GB of internal memory, the FX70-DL provides ample storage for readings and A/B-scan images, organized in alphanumeric batches with comprehensive data logging capabilities. Effortless data transfer to a PC via direct USB-C connectivity allows for in-depth analysis and professional reporting using the included DakView3 PC software.
This comprehensive package equips you with everything needed for immediate operation:
FX70-DL Dual UT Thickness Gauge and Flaw Detector
Detailed Operating Manuals: Providing comprehensive guidance for optimal instrument use.
4 oz Ultrasonic Couplant: Ensuring excellent acoustic coupling for accurate measurements.
DakView3 PC Software & Connectivity Cables: Enabling advanced data analysis, reporting, and seamless data transfer.
Official Calibration Certificate: Guaranteeing the instrument's accuracy and traceability.
Rugged Carrying Case: Providing secure storage and transportation for the instrument and all accessories.
Key Selling Points:
Ultimate Two-in-One Inspection Solution: Combines a full-featured flaw detector and a high-precision thickness gauge in a single, portable unit.
Superior AMOLED VGA Display: Delivers crystal-clear readings and A-scans in any lighting condition.
Broad Frequency Range: Supports a wide array of transducers and diverse applications.
Versatile Measurement Modes: Adaptable for various thickness gauging and flaw detection requirements.
Extensive Data Storage: 4GB internal memory for comprehensive data logging and image archiving.
Powerful DakView3 Software Included: Enables advanced PC-based data analysis and reporting.
Complete Turnkey System: Includes all essential accessories for immediate deployment.
Benefits:
Maximize Inspection Efficiency: Perform both critical thickness gauging and comprehensive flaw detection with a single, powerful instrument.
Achieve Unparalleled Accuracy: Advanced features ensure highly reliable and precise measurements.
Streamline Data Management: Effortlessly store, transfer, and analyze crucial inspection data.
Adaptable to Diverse Industries: Suitable for a wide range of materials and inspection scenarios.
Built for Durability and Portability: Rugged design ensures reliable performance in demanding field and laboratory environments.
Applications:
Critical weld inspection and quality assurance.
Comprehensive corrosion mapping and integrity assessment.
Precise thickness measurement on various materials including metals, plastics, and composites.
Detailed flaw detection in castings, forgings, and machined components.
Essential for aerospace and automotive component inspection.
Vital for pipeline integrity assessment.
The Dakota NDT FX70-DL Dual UT Thickness Gauge and Flaw Detector is the ultimate choice for NDT professionals seeking a powerful, versatile, and user-friendly instrument that delivers both cutting-edge flaw detection and high-precision thickness measurement capabilities in one comprehensive and portable package.
Technical Details:
Exceptional visibility in sunlight (AMOLED)
colour VGA display (320x240 pixels)
Sizing Toolkits: DAC, AWS, TCG, DGS
Pulse Repetition Frequency: 8 to 2000Hz, adjustable
Detection: Z-Cross, Flank & Peak
Automatic: probe zero, probe recognition, and temperature compensation
Measurement: Variety of modes to address a number of applications
Large data storage with multiple formats: Alpha numeric grid and sequential with auto identifier
Download to DakMaster™ data management software
