NM01604535

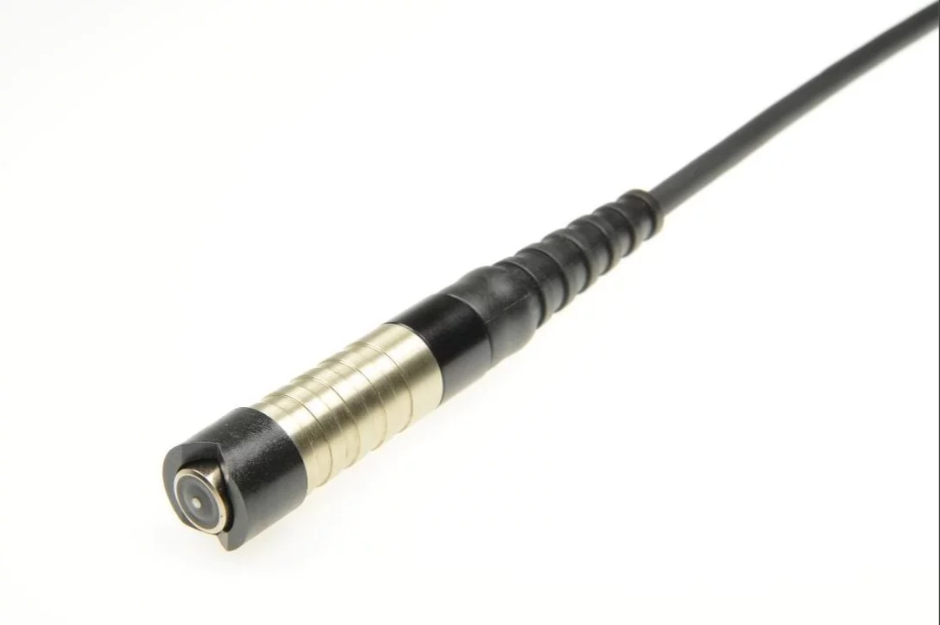

F20H Probe Plug-in type, smart magnetic induction probe with rugged 10 pin jack. Spring-loaded measurement system with hard metal tip. Properties according to technical data sheet. Cable length: 1.50 m (5 feet) Measuring range: 0 - 2500 µm (0 - 98.5 mils) NF/Fe Price including calibration foil set and Fe base.
The F20H Probe is a plug-in type, smart magnetic induction probe designed for non-destructive coating thickness measurement. It features a rugged 10-pin jack for secure and reliable connection to compatible instruments.
This probe incorporates a spring-loaded measurement system to ensure consistent contact with the test surface, even on slightly irregular geometries. The probe tip is constructed from a hard metal, providing durability and resistance to wear during repeated use. Its specific performance characteristics are detailed in the associated technical data sheet.
The F20H Probe comes with a cable length of 1.50 meters (approximately 5 feet), offering practical reach for various measurement tasks. It has a measuring range of 0 to 2500 µm (0 to 98.5 mils), making it suitable for a wide variety of coating thickness applications.
This offering includes a calibration foil set and an Fe base, providing the necessary tools for accurate calibration and ensuring reliable measurements on ferrous (Fe) substrates.
