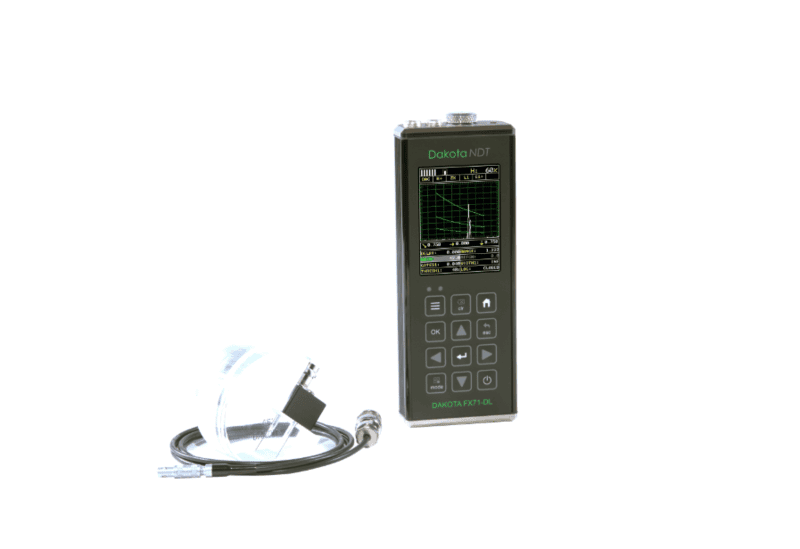

Dakota NDT FX71-DL (Formerly DFX-7+) Dual UT Thickness Gauge and Flaw Detector
SKU: Z-221-0005
A handheld ultrasonic flaw detector and advanced thickness gauge in one compact unit, with a sunlight-readable AMOLED color display and 4 GB of data storage.
| 2-in-1Flaw detector and thickness gauge | AMOLEDColor VGA display | 4 GBData storage | 397 g14 oz with batteries |
The Dakota NDT FX71-DL, formerly the DFX-7+, combines state-of-the-art flaw detection with advanced material thickness capabilities in a handheld gauge. Set to flaw detector, it finds the size and position of flaws and tells flaw types apart in materials and welded joints. Set to thickness gauge, it measures coatings and material thickness at the same time.
DAC, AWS, TCG and DGS sizing toolkits, broadband and narrow-band filters, and automatic probe zero, recognition and temperature compensation make it ready for work on site or in the lab. Weighing only 397 g, it fits easily in one hand for inspections at height or in tight spaces.
Key Features
 | Two gauges in oneSwitch between a full-featured flaw detector and an advanced thickness gauge. In thickness mode it measures coating and material thickness together. In flaw mode it detects, sizes and positions flaws, and tells flaw types apart in materials and welded joints. |
Pass/fail limits for quality controlSet high and low limits for a pass/fail indication with audible warnings, and use the built-in differential mode to compare readings against a nominal value during quality control inspections. |  |
 | 4 GB of data loggingSave up to 4 GB of readings with A-scan and B-scan images in alphanumeric batches, using grid or sequential logging with an auto identifier. Download them over USB to DakMaster software for analysis and reporting. |
Customizable toolkits and displaysChoose from A-scan and B-scan displays and flaw tools including TRIG, DAC, AWS, TCG and DGS, with Zero-Cross, Flank and Peak detection. TCG automatically compensates for sound attenuation, so the same reflector reads consistently at different depths. |  |
Built for the Field
Sunlight-readable AMOLED display
The 320 × 240 AMOLED color display offers exceptional visibility in sunlight, with a 16-color palette, variable brightness and a 60 Hz refresh rate.
Broadband plus narrow-band filters
A 1.8 to 19 MHz broadband filter is joined by three narrow bands at 2, 5 and 10 MHz, giving finer frequency control than the standard FX70-DL.
Advanced thickness modes
Pulse-echo, pulse-echo coating, temperature-compensated pulse-echo, echo-echo thru-paint, echo-echo verify and coating-only modes cover pits, flaws, coatings and coated surfaces.
Automatic setup
Automatic probe zero, probe recognition and temperature compensation get you measuring faster with fewer setup errors.
Compact and rugged
An extruded aluminum body with gasket-sealed, nickel-plated end caps works from -10°C to 60°C. It runs on 3 AA batteries for up to 12 hours, or from USB power.
Specifications
| General | |
| Manufacturer | Dakota NDT |
|---|---|
| Model | FX71-DL (formerly DFX-7+) |
| SKU | Z-221-0005 |
| Instrument type | Handheld ultrasonic flaw detector and thickness gauge |
| Shipping dimensions (estimated) | 356 × 305 × 152 mm (14.0 × 12.0 × 6.0 in) |
| Shipping weight (estimated) | 2.3 kg (5.0 lb) |
| Flaw Detector | |
| Sizing toolkits | DAC, AWS, TCG, DGS |
| Trigonometry | TRIG: beam path, depth, surface distance and curved surface correction |
| Detection | Zero-Cross, Flank and Peak |
| Frequency bands | Broadband 1.8 to 19 MHz (-3 dB); narrow bands at 2, 5 and 10 MHz |
| PRF | 8 Hz to 2 kHz, adjustable |
| Display views | Full wave, positive or negative rectified, RF |
| Gates | 2 independent gates |
| Thickness Gauge | |
| Pulse-echo (P-E) | Pits and flaws, 0.025 to 96 in (0.63 mm to 244 cm) |
| Pulse-echo coating (PECT) | Material and coating together, 0.025 to 96 in (0.63 mm to 244 cm) |
| Temperature compensated (PETP) | Pits and flaws with automatic temperature compensation, 0.025 to 96 in |
| Echo-echo (E-E) | Thru paint and coatings, 0.05 to 4 in (1.27 to 102 mm) |
| Echo-echo verify (E-EV) | Thru paint and coatings, 0.05 to 1 in (1.27 to 25.4 mm) |
| Coating only (CT) | 0.0005 to 0.1 in (0.0127 to 2.54 mm) |
| Resolution | Selectable: 0.001 in (0.01 mm) or 0.0001 in (0.001 mm) |
| Display views | Digits, positive or negative rectified, RF, B-scan |
| Gates | 3 |
| Automatic functions | Probe zero, probe recognition, temperature compensation |
| Display & Data | |
| Display | 1/4 VGA AMOLED color, 320 × 240 pixels, 43.2 × 57.6 mm viewable area |
| Refresh rate | 60 Hz |
| Timing | Precision TCXO, single shot, 100 MHz 8-bit digitizer |
| Memory | 4 GB; alphanumeric grid and sequential logging with auto identifier |
| Data output | USB, with PC software |
| Physical & Power | |
| Dimensions (W × H × D) | 63.5 × 165 × 31.5 mm (2.5 × 6.5 × 1.24 in) |
| Weight | 397 g (14 oz) with batteries |
| Case | Extruded aluminum body, nickel-plated aluminum end caps, gasket sealed |
| Power supply | 3 × AA batteries or USB |
| Battery life | Alkaline 12 h, NiMH 12 h, NiCd 5 h |
| Operating temperature | -10°C to 60°C (14°F to 140°F) |
| Standards | |
| Flaw detector | EN 12668-1 compliant |
| Thickness gauge | Factory calibration traceable to NIST and MIL-STD-45662A |
What's in the Box
- Dakota NDT FX71-DL flaw detector and thickness gauge
- Operating manuals
- 4 oz couplant
- DakView3 PC software and data transfer cable
- Certificate of calibration
- Carrying case
- AA batteries
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your setup
Transducers are sold separately. Add Dakota dual-element transducers for thickness work, and straight-beam or angle-beam transducers with matching cables for flaw detection, plus a step calibration block for daily checks.
Applications
The FX71-DL handles both flaw detection and thickness work on site or in the laboratory.
| ✓ Weld inspection | ✓ Crack and flaw detection |
| ✓ Structural welds to AWS D1.1 | ✓ Corrosion and pitting |
| ✓ Coating and material thickness | ✓ Pipelines and pressure vessels |
| ✓ Fabrication QA/QC | ✓ Inspections at height and in tight spaces |
Downloads
| ⬇ Product Datasheet (PDF) | ⬇ Flaw Detector Manual (PDF) |
About Dakota NDT
Dakota NDT, an Elcometer company, manufactures high-quality industrial ultrasonic testing equipment for the petrochemical, aerospace, power generation and automotive industries. Its range includes corrosion and precision thickness gauges, flaw detectors, bolt tension monitors, transducers and accessories.
