NM01CWG0020900

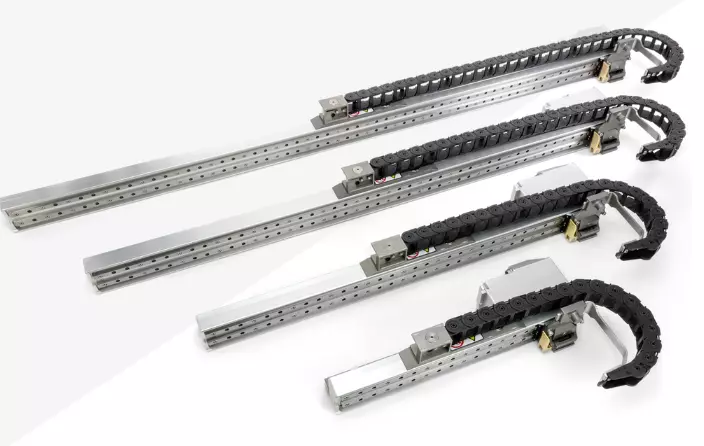

The JIreH Motorized Raster Arm, 900 mm (36"), is an automated scanning accessory designed to enhance the capabilities of JIREH's robotic crawler systems, specifically the NAVIC and SKOOT. This arm adds two-axis automated scan functionality, allowing for efficient and precise ultrasonic inspections over a defined area

With a 900 mm (approximately 35.4 inches) stroke length, this raster arm enables the coverage of significant surface areas, making it ideal for applications such as corrosion mapping on large tanks, vessels, and pipelines.

Key Features:

• 900 mm (36") Stroke Length: Provides a substantial scanning range for efficient area coverage.

• Automated Two-Axis Scanning: Enables automated raster (grid-like) scans, improving repeatability and data consistency compared to manual methods.

• Compatibility with JIREH Crawlers: Designed for seamless integration with JIREH's NAVIC and SKOOT motorized crawler platforms.

• Multi-Probe Capability: Can carry various types of ultrasonic probes, including:

  • Conventional 0° transducers

  • Phased array probes (e.g., HydroFORM, DLA/DMA, 5L64)

• Handheld Controller Integration: Utilizes the handheld controller included with the NAVIC and SKOOT for easy setup of scan parameters such as speed, index (step-over), and stroke.

• Encoder Feedback: Features an encoder with a resolution of 240.2 counts per millimeter (6101 counts per inch) for accurate positional data.

• Adjustable Scan Speed: Offers a scan speed range of 0 to 76.2 cm/sec (0 to 30 in/sec).

• Robust Construction: Built to withstand demanding inspection environments.

Benefits:

• Increased Inspection Efficiency: Automates the scanning process, saving time and resources.

• Improved Data Quality: Provides consistent and repeatable scans for reliable data acquisition.

• Enhanced Coverage: The 900 mm stroke length allows for inspection of larger areas.

• Versatile Probe Compatibility: Accommodates a wide range of ultrasonic testing techniques.

• Easy Integration: Designed to work seamlessly with existing JIREH crawler systems.

• Precise Positioning: Encoder feedback ensures accurate scan indexing and data mapping.

Applications:

• Automated ultrasonic corrosion mapping on large structures.

• Weld inspection using various ultrasonic techniques.

• Inspection of tanks, vessels, and pipelines.

• Any application requiring efficient and accurate two-axis automated ultrasonic scanning with JIREH crawler systems.
