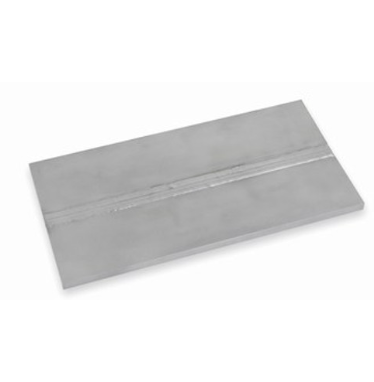

PH Tool — MIL-STD-271F Magnetic Particle Test Plate
Magnetic Particle Inspection Reference Plate for Technique Verification SKU: MILSTD271.MP.CSOverview
The PH Tool MIL-STD-271F Magnetic Particle Test Plate is a precision reference standard designed for magnetic particle inspection technique verification. Built for professional NDT workflows, this test plate helps inspectors confirm magnetic particle indication visibility, field direction, and inspection sensitivity during MPI procedure setup.
Manufactured to support MIL-STD-271F magnetic particle testing requirements, this plate provides a practical tool for verifying inspection performance before or during production testing. It is useful for checking proper magnetization, particle application, lighting conditions, and operator technique in both visible and fluorescent MPI workflows.
Built for field, shop, laboratory, and training environments, this PH Tool reference plate is ideal for aerospace, defense, manufacturing, maintenance, and QA/QC programs requiring reliable magnetic particle inspection verification.
What's Included
| Item | Details |
|---|---|
| Test Plate | MIL-STD-271F magnetic particle test plate |
| Material | Carbon steel |
| Standard Reference | MIL-STD-271F |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 6.0 in |
| Height | 2.0 in |
| Dimensions (L × W × H) | 8.0 × 6.0 × 2.0 in |
| Weight | 2.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Magnetic particle test plate |
| Standard | MIL-STD-271F |
| Material | Carbon steel |
| Application | MPI technique verification |
| Use Type | Reference standard / test plate |
| Manufacturer | PH Tool |
| SKU | MILSTD271.MP.CS |
Performance Features
MIL-STD-271F Verification Support
Designed to support magnetic particle inspection technique checks aligned with MIL-STD-271F requirements.
Magnetic Field Confirmation
Helps verify proper magnetization and particle response during MPI setup.
Visible & Fluorescent MPI Support
Suitable for use with visible or fluorescent magnetic particle inspection materials.
Technique Sensitivity Check
Provides a practical reference for confirming inspection process effectiveness before production testing.
User-Friendly Design
Easy to use during MPI setup and verification
Practical reference plate format
Suitable for field, shop, and laboratory workflows
Useful for training, procedure checks, and QA/QC documentation
Designed for efficient magnetic particle inspection support
Built for Industrial Environments
Durable carbon steel construction for repeated use
Reliable performance in professional inspection settings
Suitable for aerospace, defense, manufacturing, and maintenance programs
Built for NDT inspection verification and quality control workflows
Compatibility
Compatible with:
Magnetic particle inspection procedures
Wet and dry MPI methods
Visible magnetic particles
Fluorescent magnetic particles
AC and DC magnetization equipment
QA/QC and technique verification programs
Ideal Applications
Magnetic particle technique verification
MPI process checks
Field direction confirmation
Aerospace and defense inspection programs
Manufacturing QA/QC
NDT training and demonstration
Procedure validation and inspection readiness checks
About PH Tool
PH Tool is a leading manufacturer of precision NDT reference standards, calibration blocks, and inspection verification tools. Their products are trusted worldwide for accuracy, durability, and compliance support in professional ultrasonic, radiographic, and magnetic particle testing applications.
