Labino MB Hercules Ex – Explosion-Protected UV-A LED Inspection Lamp
SKU: L3000 | NOMO SKU: NM01L3000
A professional explosion-protected UV-A inspection lamp engineered for non-destructive testing in approved hazardous atmospheres. The Labino MB Hercules Ex combines ATEX and IECEx certifications, four high-performance UV-A LEDs, 4,000 µW/cm² irradiance, and compliance with ASTM E3022, Rolls-Royce RRES 90061 and Airbus AITM6-1001.
| ATEXExplosion-protected | 4,000µW/cm² at 15 in | IP66Ingress protection | 3 hrsBattery runtime |
The Labino MB Hercules Ex is a specialized ultraviolet inspection lamp designed for non-destructive testing in potentially explosive industrial atmospheres. Its explosion-protected construction and sealed enclosure help prevent electrical ignition sources from triggering an explosion when the equipment is operated within its certified hazardous-area classifications.
Developed for demanding fluorescent magnetic particle inspection (MPI/MT) and fluorescent penetrant testing (FPI/PT), the Hercules Ex delivers professional UV-A illumination while meeting stringent industrial and aerospace inspection requirements.
The lamp has been tested to ASTM E3022 and meets manufacturer-listed requirements from Rolls-Royce, Airbus, Pratt & Whitney, Boeing and the United States Air Force. It has also undergone environmental testing, including salt fog testing according to MIL-STD-810F and explosive atmosphere testing according to MIL-STD-810G.
The battery-powered design provides mobility for maintenance, manufacturing and inspection work in appropriately classified hazardous locations, eliminating the need for a continuous mains power connection during operation.
Product Photography

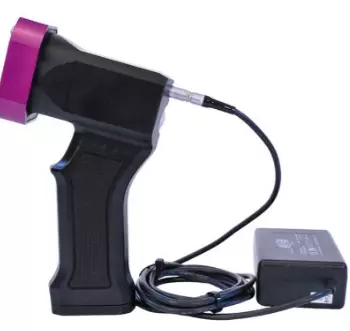

Charging connection | Handheld UV-A lamp |
Key Features
| Explosion-protected designThe MB Hercules Ex features a sealed construction developed for non-destructive testing in specified explosive atmospheres. It holds ATEX and IECEx certifications and is intended for use only within the hazardous-area classifications and conditions documented by the manufacturer. |
ATEX and IECEx certifications
Labino lists ATEX approval for Group II, Zone 2 applications and IECEx certification for the MB Hercules Ex. These certifications support deployment in properly classified hazardous industrial locations when all applicable installation and use conditions are satisfied.
Four high-performance UV-A LEDs
Four UV-A LEDs provide approximately 4,000 µW/cm² peak irradiance at a distance of 15 inches (38.1 cm), delivering the illumination required for professional fluorescent inspection applications.
Wide inspection beam
The lamp produces a beam approximately 20 cm (7.9 inches) in diameter above 1,000 µW/cm² when measured at 15 inches, allowing technicians to examine larger inspection areas while maintaining suitable UV-A illumination.
Aerospace inspection requirements
The Hercules Ex is listed as meeting ASTM E3022, Rolls-Royce RRES 90061, Airbus AITM6-1001, ISO 3059 and applicable requirements from Boeing, Pratt & Whitney and the United States Air Force.
Rechargeable battery power
The battery-powered design provides approximately three hours of operating time. The rechargeable batteries can be charged without being removed from the lamp, but charging must be performed outside hazardous or explosive atmospheres.
Durable industrial protection
With IP66 ingress protection, the lamp is resistant to dust and powerful water jets. Its construction is intended for demanding industrial inspection environments, and the model has undergone specified salt fog and explosive atmosphere environmental tests.
Four-year manufacturer warranty
The MB Hercules Ex carries a four-year manufacturer-listed warranty, subject to Labino's applicable warranty terms and conditions.
Complete Inspection Kit
 | Ready for professional inspectionThe standard Hercules Ex kit includes the lamp, rechargeable batteries, charging accessories, UV-blocking goggles and a protective transport case. These accessories support routine inspection operations and safe equipment transportation between industrial work locations. |
Specifications
| General | |
| Manufacturer | Labino AB |
|---|---|
| Model | MB Hercules Ex |
| Manufacturer Part Number | L3000 |
| NOMO SKU | NM01L3000 |
| Product Type | Explosion-protected UV-A LED inspection lamp |
| NSN | 6635-64-002-1717 |
| Lamp Weight Including Batteries | 980 g (2.2 lb) |
| Estimated Box Dimensions (L × W × H) | 18 × 14 × 8 in (457 × 356 × 203 mm), provisional estimate |
| Estimated Kit Shipping Weight | 10 lb (4.54 kg), provisional estimate |
| UV-A Optical Performance | |
| UV-A LEDs | 4 |
| Peak Wavelength | 365 nm ± 5 nm |
| Peak Irradiance at 15 Inches | Approximately 4,000 µW/cm² |
| Measurement Distance | 38.1 cm (15 in) |
| Beam Diameter Above 1,000 µW/cm² | 20 cm (7.9 in) |
| Optical System | UV-A LED inspection optics with white light blocking filters |
| Power and Protection | |
| Power Source | Rechargeable batteries |
| Battery Runtime | Approximately 3 hours |
| Charging | Charging dock and external power supply; charge only in non-hazardous environments |
| Ingress Protection | IP66 |
| Manufacturer Warranty | 4 years, subject to Labino warranty terms |
| Explosion Protection and Testing | |
| ATEX Classification | Group II, Zone 2 as described by Labino; verify the full Ex marking |
| ATEX Certificate | ITS17ATEX402144X, Revision 2 |
| IECEx Certificate | IECEx ITS 17.0056X |
| NFPA Classification Referenced by Manufacturer | NFPA 70 Article 500, Class I Division 2; verify listing and permitted use in the installation jurisdiction |
| Salt Fog Test | MIL-STD-810F |
| Explosive Atmosphere Test | MIL-STD-810G |
| Inspection Standards and Manufacturer-Listed Compliance | |
| ASTM | ASTM E3022; ASTM E3022-15 referenced in original product documentation |
| Rolls-Royce | RRES 90061 |
| Airbus | AITM6-1001 |
| ISO | ISO 3059 |
| Other Listed Requirements | USAF, Pratt & Whitney and Boeing |
Shipping dimensions and shipping weight are provisional estimates, not manufacturer-certified measurements. Explosion protection certification applies only within the equipment's specified conditions, classifications and environmental limits. Consult the current ATEX and IECEx certificates before approving hazardous-location use.
Explosion Protection Certifications
ATEX – Group II, Zone 2
The MB Hercules Ex has been developed and tested for use in hazardous atmospheres covered by its ATEX certificate.
Certificate: ITS17ATEX402144X R.2
IECEx Certification
International IECEx certification provides additional documentation for specified explosive-atmosphere applications.
Certificate: IECEx ITS 17.0056X
Environmental Testing
The manufacturer reports successful testing for salt fog exposure under MIL-STD-810F and explosive atmospheres under MIL-STD-810G.
Important: The certificate suffix "X" indicates special conditions of use. The lamp must not be used in hazardous locations outside its certified classifications. Obtain and review the current certificates, temperature classification and equipment markings before deployment.
What's in the Box
|
|
Standard manufacturer-listed kit contents. Confirm electrical plug configuration and accessory availability when ordering.
Applications
| ✓ Fluorescent penetrant testing (FPI/PT) | ✓ Fluorescent magnetic particle testing (MPI/MT) |
| ✓ Approved hazardous-area inspections | ✓ Aerospace component maintenance |
| ✓ Oil and gas equipment inspection | ✓ Petrochemical facilities |
| ✓ Industrial equipment maintenance | ✓ Manufacturing quality assurance |
| ✓ Maintenance of piping and fittings | ✓ Inspection of critical metal components |
Use in potentially explosive atmospheres is subject to verifying the site classification and the lamp's applicable Ex certification.
Safe Operation and Handling
Hazardous-area suitability
Before use, confirm that the lamp's certified Ex marking matches the gas group, temperature class, hazardous-area zone or division and ambient temperature conditions of the work location.
Battery charging restrictions
Never connect the charging system inside an explosive atmosphere. Labino explicitly requires charging to be performed in a non-explosive environment. Follow the certificate's special conditions for battery handling and replacement.
UV-A exposure precautions
Wear appropriate UV-blocking eyewear and avoid looking directly into the UV-A source. Follow the inspection procedure and applicable ultraviolet exposure safety requirements.
Inspection performance verification
Measure UV-A irradiance and visible light levels using calibrated instruments at the prescribed working distance. Confirm results against the applicable inspection standard.
Downloads
| ⬇ MB Hercules Ex Technical Brochure (PDF) |
| ⬇ Labino Product Catalog 2025 (PDF) |
| ⬇ Labino Technical Specifications and Compliance Overview (PDF) |
About Labino
Labino AB is a Swedish manufacturer of professional ultraviolet inspection lighting equipment for non-destructive testing and industrial applications. The company designs, develops and manufactures UV-A inspection systems used in aerospace, automotive, oil and gas, manufacturing and other industries.
Labino's product portfolio includes UV-A inspection flashlights, handheld lamps, headlights, overhead inspection systems, explosion-protected lighting solutions and specialized ultraviolet measurement instruments. Its products are developed to support demanding inspection environments and international quality requirements.
