NM0327112

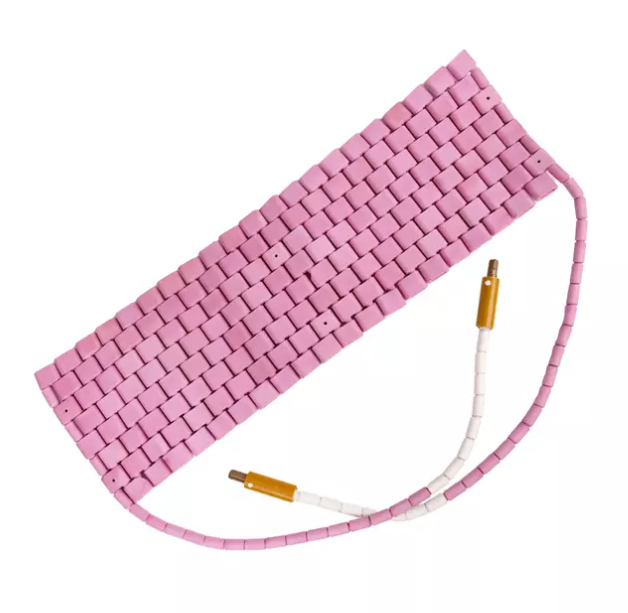

The CMH72-80 Ceramic Pad Heater is a high-performance, flexible heating element designed for efficient and uniform heat distribution across various surfaces. With its 80-volt, 3.6 kW power rating, this ceramic pad heater is suitable for a wide range of industrial applications, including preheating and post-weld heat treatment. It is commonly used in industries such as metalworking, welding, and fabrication, where precise and controlled heating is crucial for achieving the desired material properties and structural integrity.
Manufactured using nickel-chromium (NiCr) multi-strand wire and sintered alumina ceramic beads, the heater is built to provide durability and resistance to high temperatures. Its flexibility allows it to conform to both flat and curved surfaces, making it ideal for heating irregularly shaped parts or equipment.
Key Features:
Voltage:
Operates at 80 volts, ideal for use in standard industrial power systems.
Power Rating:
Delivers 3.6 kW of power, providing efficient heat transfer for larger applications.
Dimensions:
Length: 72 inches (183 cm)
Width: 1.75 inches (4.45 cm)
The large surface area ensures even distribution of heat across a wide area.
Construction:
Made with high-grade NiCr wire (80/20) that is insulated with interlocking sintered alumina ceramic beads. This construction provides excellent thermal conductivity and high resistance to corrosion.
Temperature Resistance:
Designed to withstand temperatures up to 2,150°F (1,176°C), making it suitable for the most demanding heat treatment processes.
Flexibility:
The ceramic pad's design allows it to easily conform to various shapes, whether flat or curved, providing versatility for diverse applications.
Cold Tails:
Includes 24-inch cold tails with male 60-amp twist-lock connectors and insulated covers for safe and secure electrical connections.
Applications:
Preheating and Post-Weld Heat Treatment:
Ideal for use in welding and metalworking to prepare materials for welding or to relieve stress after the welding process. It ensures even heating to prevent material cracking or deformation.
Stress Relieving:
Used for stress-relieving applications in welding, fabrication, and manufacturing to ensure the structural integrity of materials after processing.
General Industrial Heating:
Suitable for pipework, plates, and other metal parts in industries where consistent, controlled heat is required for processing.
Why Choose the CMH72-80 Ceramic Pad Heater?
Reliable Performance: With a 3.6 kW power rating and a high-temperature resistance of up to 2,150°F (1,176°C), this ceramic pad heater ensures consistent and efficient performance even in the most demanding environments.
Flexible Design: The ability to conform to flat and curved surfaces makes it versatile for various industrial applications.
Durable Construction: Made from high-quality materials, including NiCr wire and ceramic beads, the heater offers long-lasting durability and reliable performance over time.
Safety Features: Equipped with male 60-amp twist-lock connectors and insulated cold tails, the heater is designed for safe operation and easy integration into existing systems.
Industrial Applications: Perfect for industries like welding, fabrication, and manufacturing, where precise and efficient heating is essential for quality control and structural integrity.
