NM01CAT5M

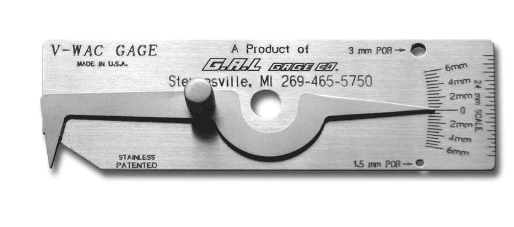

The "V-WAC" Single Weld Gage is a practical and user-friendly inspection tool designed for the quick and accurate assessment of critical weld parameters. This specific gage allows for the measurement of undercuts and pits up to 6 mm in depth, and the height of weld crowns (reinforcement) up to 6 mm with precise 0.5 mm increments.
This single, compact tool is an essential addition to any welding inspector's toolkit, providing the capability to perform on-the-spot evaluations of weld quality and ensure adherence to welding specifications. Its straightforward design makes it easy to handle and interpret measurements, contributing to efficient quality control processes.
Key Selling Points:
Precise Undercut and Pit Measurement: Accurately measures the depth of undercuts and pits in the weld up to a maximum of 6 mm.
Detailed Weld Crown Height Measurement: Determines the height of the weld reinforcement up to 6 mm with precise 0.5 mm increments for thorough assessment.
Simple and Compact Design: Offers ease of handling, usage, and storage, making it ideal for both field and shop inspections.
Essential for Weld Quality Assurance: A fundamental tool for ensuring welds meet specified quality standards and tolerances.
Benefits:
Facilitates Weld Integrity: Enables the identification and measurement of common weld discontinuities that can compromise structural integrity.
Enhances Quality Control Processes: Provides a consistent and accurate method for measuring key weld dimensions.
Intuitive and Easy to Operate: The single gage design simplifies the measurement process, requiring minimal training.
Highly Portable for On-Site Inspections: Its compact size makes it convenient for inspectors to carry and use in various locations.
Approximate Dimensions (inches):
While the exact dimensions can vary slightly between manufacturers, a typical "V-WAC" single weld gage is designed to be compact and handheld. Approximate dimensions are:
Length: 4 to 6 inches
Width: 1 to 2 inches
Thickness: 0.1 to 0.2 inches
Applications:
Routine welding inspection in fabrication facilities.
Field inspection of welded structures and components.
Quality control checks during welding operations.
Verification of weld dimensions against project specifications and standards.
Use in welding training and educational programs.
