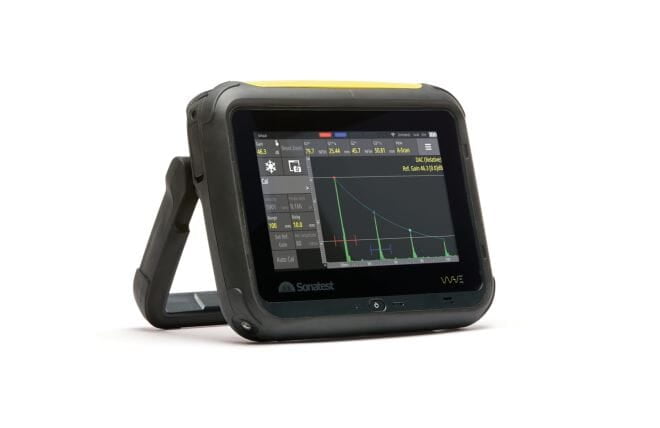

The Sonatest WAVE Interactive Flaw Detector is a groundbreaking device in ultrasonic non-destructive testing (NDT), providing a user-friendly, interactive approach to flaw detection and analysis. This portable, versatile device uses advanced software and hardware to streamline workflows while offering customizable features tailored to individual user requirements. Equipped with an intuitive interface, the WAVE offers an innovative Interactive Scan Plan, customizable application setups, and UTouch technology that functions similar to a mobile device.

The WAVE is designed with durable materials, meeting IP67 standards, and operates efficiently in challenging environments with a temperature range from -10°C to 45°C. This tool is suitable for sectors requiring precise flaw detection, such as aerospace, oil and gas, and manufacturing industries. Its integrated Wi-Fi and Bluetooth support allow data sharing and application installations in field environments, enhancing flexibility and productivity.

Key Features:

1. Interactive Scan Plan:

   • Real-Time Ray Tracing: Distinguishes between actual flaws and geometrical indications, minimizing false positives and unnecessary repairs.
   • Custom Geometry Integration: Imports CAD models for complex geometry analysis, ideal for curved surfaces, T-joints, and intricate shapes.
   • Projected A-Scan and True Depth: Provides accurate depth measurements even on complex shapes.

2. Customizable User Interface:

   • Application Concept: Offers customizable apps, allowing users to configure the interface for specific inspection procedures, reducing operational errors.
   • Wave Companion Software: Enables users to create dedicated setups that are easily transferable to the WAVE device, either wirelessly or through USB-C or Ethernet connections.

3. UTouch Technology:

   • Responsive Multi-Touch Display: Operates similarly to mobile devices with P-CAP multi-touch technology, making it intuitive and easy to use.
   • Ruggedized Design: Resistant to harsh conditions, with IP67 certification for dust and water protection.

4. Connectivity and Data Management:

   • Wi-Fi and Bluetooth Compatibility: Supports remote access, data transfer, calibration management, and software updates on the go.
   • 10-Hour Battery Life: Provides extended usability, suitable for prolonged fieldwork.

5. High-Quality Display:

   • 7” Wide Display with 1024 x 600 Resolution: Delivers clear, detailed images for precise analysis and easy data reading.

Specifications:

• Battery Life: Up to 10 hours
• Display: 7" wide, 1024 x 600 resolution
• Dimensions: 222 x 174 x 63 mm (8.7 x 6.8 x 2.5 inches)
• Weight: 1.7 kg (3.7 lbs)
• IP Rating: IP67 for dust and water protection
• Operating Temperature: -10°C to 45°C
• Connectivity: Wi-Fi, Bluetooth (for future versions)
• Audio: Speaker and audio recording capabilities

Advanced Detection Capabilities:

• 4 Gates, DAC/Split DAC, TCG, AVG/DGS, AWS, API, and BEA: Supports versatile measurement needs across applications.
• Gain Range: 110 dB, with 26 filters for signal clarity.
• Pulse Rate: 1500 Hz, adjustable pulser voltage from 100 to 500V.
• Signal Averaging and Curved Surface Correction: Ensures accuracy in readings, even on irregular surfaces.

Included Accessories:

• WAVE Lemo/BNC Unit
• WAVE Carry Case (Product #195000)
• Smart Li-ion Battery Pack (Product #242000)
• AC/DC Battery Charger (Product #800001)
• Hand Strap Assembly (Product #WAVE-ACC-001)
• Ethernet to USB Adapter and 1m Ethernet Cable (Product #136001, #192001)
• Screen Protector Kits (CLEAR/TINT) (Product #WAVE-ACC-004, #WAVE-ACC-005)
• 125 ml Water-Based Couplant Bottle (Product #T-09)

Additional accessory options include safety harnesses, various harness types, and screen protector kits to extend device longevity and operator comfort.
