NM015L321.010A32P2.5IPEX

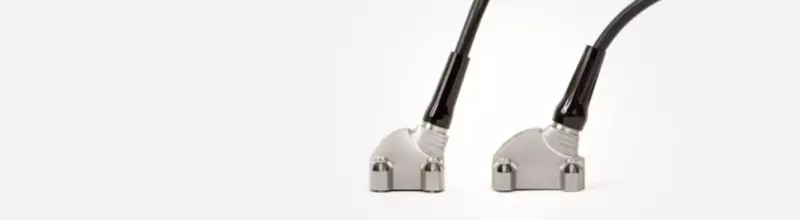

Linear Phased Array Probe 32 Elements, 5 MHz, 1mm Pitch, 10mm Elevation, A32 Housing, 2.5mts PVC cable, IPEX Connector, 5L32-1.0x10-A32- P-2.5-IPEX, ULSO
The ULSO 5L32-1.0x10-A32-P-2.5-IPEX Linear Phased Array Probe is a high-precision ultrasonic transducer designed for advanced non-destructive testing (NDT) applications. This probe utilizes state-of-the-art phased array technology to provide exceptional versatility and accuracy in material inspection.
Featuring 32 individual transducer elements, this linear array probe enables sophisticated beam steering, focusing, and shaping. This allows for comprehensive volumetric inspection, including the detection and characterization of flaws, measurement of thickness, and evaluation of material integrity.
The probe operates at a frequency of 5 MHz, which is a versatile frequency for a wide range of applications, balancing penetration and resolution. The 1mm element pitch contributes to high spatial resolution, enabling the detection of small defects and detailed imaging.
The 10mm elevation dimension provides a sufficient aperture for effective beam formation and coverage. The A32 housing is designed for durability and optimal acoustic coupling, ensuring reliable performance in demanding industrial environments.
The probe is equipped with a 2.5-meter PVC cable, providing flexibility and reach during inspections. The IPEX connector ensures a secure and reliable electrical connection to compatible ultrasonic instruments.
The 5L32-1.0x10-A32-P-2.5-IPEX model number encodes key specifications:
5L32: 5 MHz, 32 elements.
1.0x10: 1mm pitch, 10mm elevation.
A32: A32 housing.
P-2.5: 2.5-meter PVC cable.
IPEX: IPEX connector.
Manufactured by ULSO, a reputable provider of ultrasonic testing solutions, this linear phased array probe is engineered to meet the stringent requirements of modern NDT.
Key Features and Benefits:
32 Elements: Enables advanced beam steering and focusing.
5 MHz Frequency: Versatile for a wide range of applications.
1mm Pitch: Provides high spatial resolution.
10mm Elevation: Ensures effective beam formation and coverage.
A32 Housing: Durable and optimized for acoustic coupling.
2.5mts PVC Cable: Offers flexibility and reach.
IPEX Connector: Ensures a secure and reliable connection.
Advanced Phased Array Technology: Enables comprehensive volumetric inspection.
Applications:
Weld Inspection: Pipelines, pressure vessels, and structural welds.
Composite Material Inspection: Aerospace, automotive, and industrial composites.
Aerospace Component Inspection: Critical aircraft components.
Power Generation Industry: Turbine blades, pressure vessels, and piping.
General Volumetric Inspection: Flaw detection and material characterization.
