NM01CEG00224U02

JIREH Rotix - 2 Probe Phased Array Scanner for Circumferential Inspection

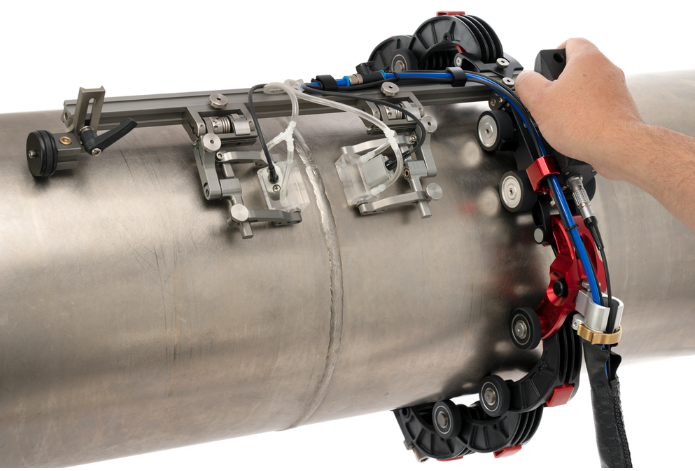

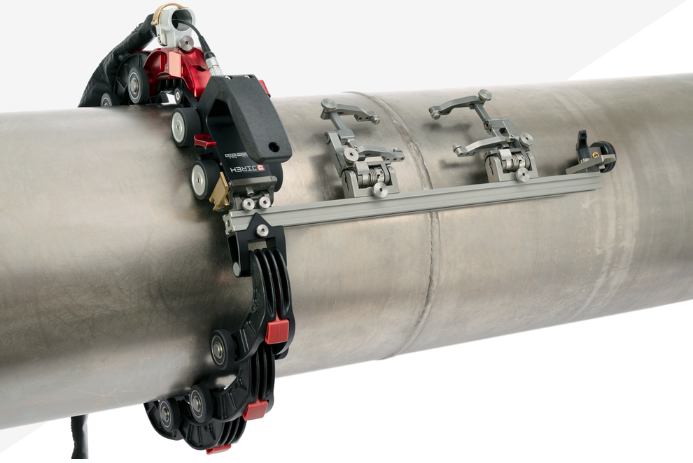

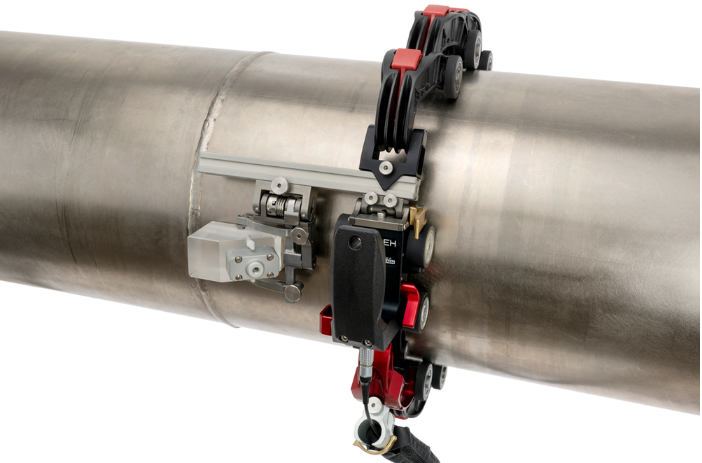

The JIREH Rotix - 2 Probe Phased Array Scanner is a versatile and robust manual chain scanner designed for accurate and encoded circumferential inspection of pipes and tubes ranging from 1.5 inches (3.8 cm) to 24 inches (60 cm) in diameter. This scanner is engineered to accommodate two phased array probes, providing comprehensive coverage for weld inspection and corrosion mapping.

Key Features:

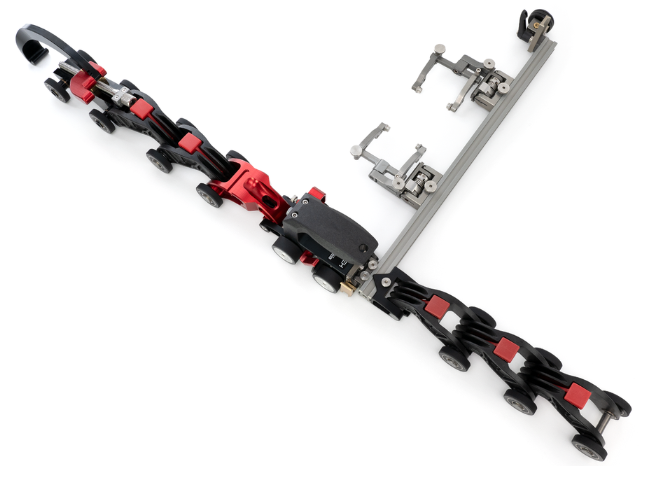

• Wide Diameter Range: Easily adjustable chain system allows for scanning a broad range of pipe and tube diameters (3.8 cm - 60 cm / 1.5 in - 24 in).

• Two Probe Configuration: Designed to hold two phased array probes simultaneously for increased inspection efficiency and coverage.

• Sonatest VEO / Prisma Encoder Connector: Ensures seamless integration and accurate encoded data acquisition with Sonatest VEO and Prisma instruments.

• 5 mm (0.197 in) Pivot Buttons: Provides secure and precise mounting for various phased array wedges with 5 mm pivot holes.

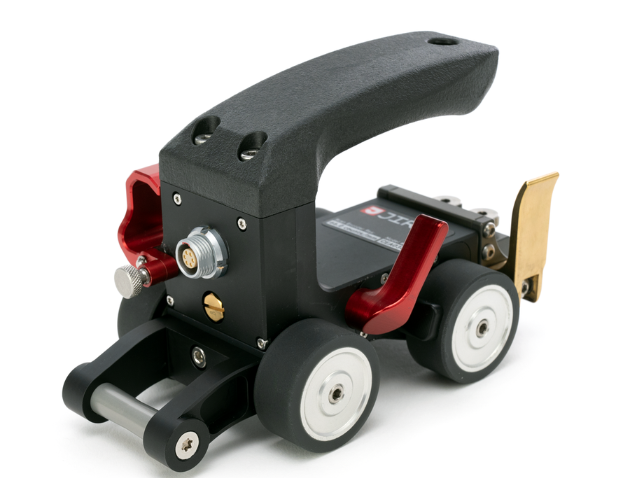

• Precise Encoding: Integrated encoder provides accurate probe positioning data for reliable and repeatable scans.

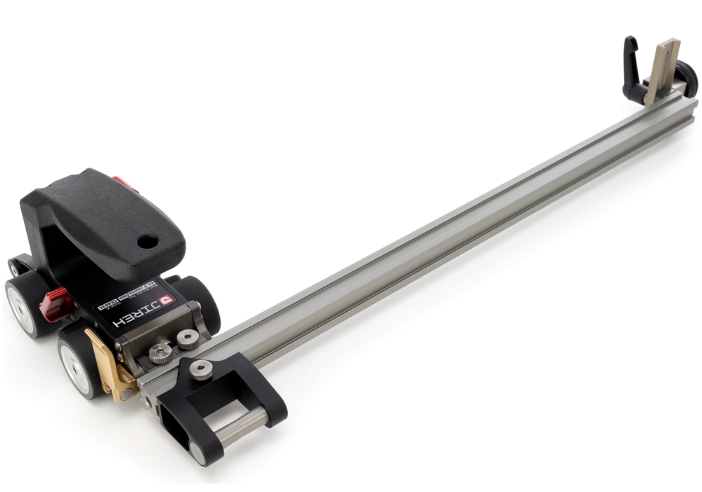

• Adjustable Probe Spacing: Allows for easy adjustment of the distance between the two probes to optimize inspection for different applications.

• Durable Construction: Built to withstand demanding field conditions.

Benefits for Your Phased Array Inspections:

• Efficient Circumferential Scanning: Enables rapid and accurate inspection of pipelines and cylindrical components.

• Enhanced Coverage: The dual probe configuration can significantly reduce inspection time.

• Accurate Data Acquisition: The integrated encoder ensures precise probe tracking for reliable analysis.

• Versatile Compatibility: Designed for use with Sonatest VEO and Prisma instruments and various phased array probes with 5 mm pivot mounts.

• Robust and Reliable: Built for long-lasting performance in challenging environments.

The JIREH Rotix - 2 Probe Phased Array Scanner is an essential tool for NDT professionals requiring a reliable and accurate solution for circumferential phased array inspections on a wide range of pipe and tube sizes.
