NM01N3060010

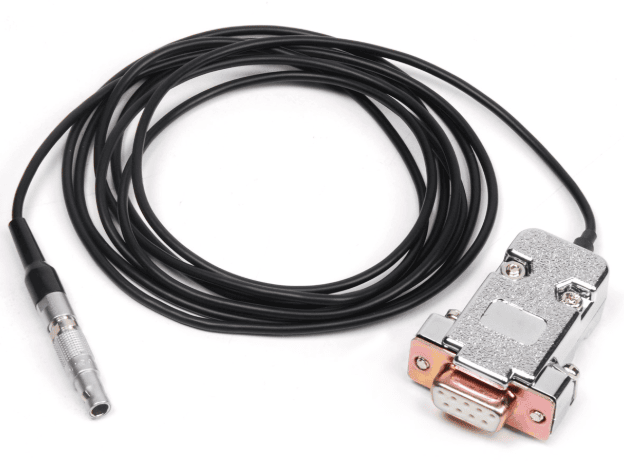

The DAKOTA NDT Data Transfer Cable (6' RS232 to Lemo), identified by SKU N-306-0010, is a crucial accessory designed to establish a reliable data connection between compatible Dakota NDT ultrasonic thickness gauges or other instruments featuring an RS232 serial port and devices equipped with a Lemo connector. This 6-foot (approximately 1.83 meters) cable facilitates the seamless transfer of valuable inspection data, such as precise thickness readings and instrument settings, to a computer or other data logging and processing equipment.

Engineered for dependable performance, this cable features a standard DB-9 (DE-9) connector on one end, ensuring broad compatibility with RS232 interfaces. The opposite end is equipped with a specific Lemo connector, meticulously designed to provide a secure and robust physical connection to the corresponding data port on compatible Dakota NDT instruments. This ensures a stable and uninterrupted data stream, vital for accurate and efficient data management.

Key Selling Points:

• Seamless Data Transfer: Enables direct and efficient transfer of critical inspection data from compatible Dakota NDT instruments to computers or other devices via the widely adopted RS232 protocol.

• Secure and Robust Connection: The precision-engineered Lemo connector provides a stable and reliable physical interface with compatible Dakota NDT instruments, minimizing data transfer interruptions.

• Broad RS232 Compatibility: Utilizes the industry-standard RS232 serial communication protocol, ensuring compatibility with a wide range of data logging and processing equipment.

• Optimal 6-Foot Length: Provides ample reach and flexibility for most data transfer setups, ensuring convenient connectivity without excessive cable clutter.

• Genuine Dakota NDT Accessory: Guarantees optimal compatibility and reliable performance specifically with your Dakota NDT equipment, ensuring seamless integration and data integrity.

Benefits:

• Streamlined Data Logging and Archiving: Simplifies the process of collecting, storing, and organizing valuable thickness readings and other inspection parameters, improving data management efficiency.

• Enhanced Data Analysis and Reporting: Facilitates the effortless transfer of inspection data to computers for in-depth analysis, generating comprehensive reports, and ensuring data-driven decision-making.

• Improved Workflow Efficiency: Significantly speeds up the data transfer process compared to time-consuming manual transcription, freeing up valuable inspection time and reducing the potential for errors.

• Guaranteed Compatibility and Reliable Performance: Designed specifically for seamless integration with compatible Dakota NDT instruments, ensuring dependable data transfer and optimal system performance.

Approximate Dimensions (inches):

• Overall Cable Length: Approximately 72 inches (6 feet)

• DB-9 Connector Dimensions: Standard DB-9 size (approximately 1.2 inches Length x 0.5 inches Width x 0.6 inches Height)

• Lemo Connector Dimensions: Specific to the Lemo series used (diameter approximately 0.3 to 0.5 inches, length approximately 0.8 to 1.2 inches - varies depending on pin configuration).

Applications:

• Establishing a direct data link between Dakota NDT ultrasonic thickness gauges (and other compatible instruments) and computers for efficient data download and management.

• Connecting instruments to external data loggers or other serial communication devices for automated data acquisition.

• Facilitating seamless software communication with Dakota NDT instruments for advanced data analysis, instrument configuration, and reporting functionalities.
