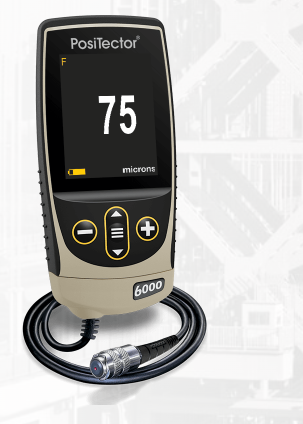

DeFelsko PosiTector 6000 FTS1 High-Range Ferrous Coating Thickness Gage (Standard Body, Cabled FTS Probe)
SKU: FTS1
A rugged coating thickness gage with a high-range cabled probe for measuring thick protective coatings on steel from 0 to 250 mils (6 mm), including thick epoxy, rubber and intumescent fireproofing.
| 0–250 mils0 to 6 mm range | High-rangeCabled FTS probe | 60+Readings per minute | 2 yearsBody and probe warranty |
The DeFelsko PosiTector 6000 FTS1 is a rugged, fully electronic coating thickness gage that uses the magnetic induction principle to measure thick non-magnetic coatings on steel and iron quickly and accurately. It pairs the PosiTector Standard body with the removable FTS high-range cabled probe, built for coatings far thicker than standard probes can read.
With a range of 0 to 250 mils (0 to 6 mm), it's ideal for thick epoxy, rubber linings, intumescent fireproofing and other heavy protective coating systems. It's ready to measure right out of the box for most applications, and backed by a two-year warranty on body and probe.
Key Features
Made for thick coatings
The FTS probe measures from 0 to 250 mils (0 to 6 mm) on steel, so a single gage covers thick epoxy, rubber, intumescent fireproofing and multi-coat protective systems.
Cabled probe for hard-to-reach areas
The high-range cabled probe gives flexible access to curved surfaces, confined areas and large structures, while the gage body stays easy to read.
Fast and accurate
Take more than 60 readings per minute, or over 90 in FAST mode, with built-in temperature compensation. Each gage includes a Long Form Certificate of Calibration traceable to NIST or PTB.
Statistics and memory
The Standard body stores 1,000 readings per probe, and Statistics mode continually displays the average, standard deviation, min/max and number of readings. Readings are accessible over USB like a flash drive, or through PosiSoft software for reports.
Flexible calibration
Choose from 1-point, 2-point, known thickness and average zero adjustment options. Hi-RES mode increases displayed resolution, and RESET instantly restores factory settings.
Rugged, interchangeable platform
The IP65 body is weatherproof, dustproof and water-resistant, with a large 2.8" impact-resistant color touchscreen. Each probe retains its own calibration, so the body accepts any PosiTector 6000, UTG, SPG, DPM and other PosiTector probes.
Specifications
| General | |
| Manufacturer | DeFelsko |
|---|---|
| Model | PosiTector 6000 FTS1 (Standard body with FTS high-range cabled probe) |
| SKU | FTS1 |
| Instrument type | Electronic coating thickness gage, ferrous, high range |
| Warranty | 2 years on gage body and probe |
| Box dimensions (L × W × H) (estimated) | 305 × 254 × 127 mm (12.0 × 10.0 × 5.0 in) |
| Shipping weight (estimated) | 1.4 kg (3.0 lb) |
| FTS Probe | |
| Probe style | High-range cabled, removable |
| Substrates | Ferrous metals (steel and iron) |
| Measuring principle | Magnetic induction |
| Range | 0 to 250 mils (0 to 6 mm) |
| Accuracy (imperial) | ±(0.5 mils + 1%) from 0 to 100 mils; ±(0.5 mils + 3%) above 100 mils |
| Accuracy (metric) | ±(0.01 mm + 1%) from 0 to 2.5 mm; ±(0.01 mm + 3%) above 2.5 mm |
| Certified thickness standard | STDP1 |
| Gage Body & Data | |
| Speed | 60+ readings per minute; 90+ in FAST mode |
| Calibration options | 1-point, 2-point, known thickness, average zero; RESET |
| Memory | 1,000 readings per probe (Standard body) |
| Display | 2.8" impact-resistant color touchscreen |
| Connectivity | USB, with PosiSoft USB Drive and PosiSoft software |
| Enclosure | IP65 weatherproof, dustproof and water-resistant |
| Body size and weight | 127 × 66 × 25.4 mm (5.0 × 2.6 × 1.0 in); 137 g (4.9 oz) without batteries |
| Power | 3 × AAA batteries; USB power |
| Standards | Conforms to ISO and ASTM standards; Long Form Certificate of Calibration traceable to NIST or PTB |
What's in the Box
- PosiTector Standard gage body
- PosiTector 6000 FTS high-range cabled probe
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA alkaline batteries
- Nylon carrying case with shoulder strap
- Protective lens shield
- USB cable
- Instructions
- Long Form Certificate of Calibration
Standard DeFelsko package. Contents can vary by package, so contact us to confirm what ships with your order.
Complete your coating inspection kit
Add the STDP1 certified thickness standard to verify accuracy. For coatings over 250 mils, see the FKS (to 500 mils) or FJS and FLS high-range probes. For 250,000-reading memory, WiFi, Bluetooth and scan modes, step up to the FTS3 Advanced.
Applications
| ✓ Thick epoxy coatings | ✓ Rubber linings |
| ✓ Intumescent fireproofing | ✓ Tank and pipe linings |
| ✓ Multi-coat protective systems | ✓ Marine and offshore structures |
| ✓ Structural steel | ✓ Protective coatings QA/QC |
