NM01L1074

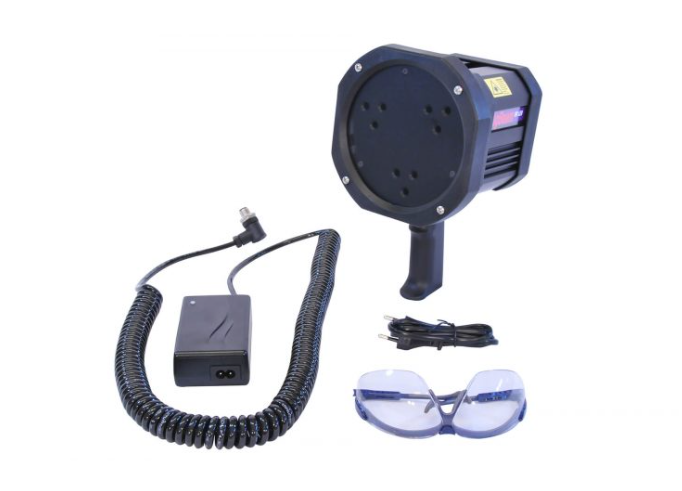

The LABINO BB 2.0 Ikaros (Mains Power Supply) is a powerful and robust handheld UV LED lamp designed for non-destructive testing (NDT) applications requiring a large and uniform beam. This mains-powered model provides continuous, high-intensity UV-A illumination for efficient detection of fluorescent penetrants and magnetic particles.
The BB 2.0 series is known for its wide beam coverage and exceptional cooling system, ensuring consistent performance during extended inspections. The Ikaros model specifically delivers a broad beam with a diameter of approximately 10.6 inches (27 cm) and a maximum intensity that does not exceed ≈ 5,000 μW/cm² at a distance of 15 inches (38.1 cm). This makes it ideal for quickly scanning large surface areas.
Equipped with eight high-quality UV LEDs and a white light block filter that prevents solarization, the BB 2.0 Ikaros emits virtually no visible light, ensuring optimal contrast for fluorescent indications. Its durable, penetrant-resistant housing with an IP68 waterproof rating makes it suitable for demanding field and industrial environments. The lightweight design (just 2.6 lbs / 1.2 kg for the mains-powered version) minimizes user fatigue during prolonged use.
This model operates directly from a mains power supply, providing continuous operation without the need for battery changes.
Key Selling Points:
Powerful and Wide UV-A Beam: Provides extensive coverage for efficient inspection of large areas.
Mains Powered for Continuous Use: Ensures uninterrupted operation without battery concerns.
Compliant with Industry Standards: Tested to comply with ASTM E3022-18, ISO 3059-12, Rolls-Royce RRES 90061, Airbus AITM6-1001, and other relevant standards.
Homogeneous Beam Profile: Delivers uniform UV-A intensity across the inspection area, ensuring consistent excitation of fluorescent indicators.
Durable and Robust Design: Penetrant resistant and IP68 waterproof for reliable performance in harsh environments.
Lightweight and Ergonomic: Minimizes user fatigue during extended inspections.
Benefits:
Increased Inspection Speed and Efficiency: Cover large areas quickly with the wide beam.
Reliable and Consistent Performance: Mains power ensures continuous operation.
Meets Stringent Industry Requirements: Compliant with key NDT standards.
Enhanced Detection Capabilities: High-intensity, uniform UV-A output reveals even faint indications.
Durable and Long-Lasting: Built to withstand demanding industrial use.
Applications:
Rapid inspection of large surfaces using fluorescent penetrant testing (FPT) and fluorescent magnetic particle testing (FMPT).
Field inspections of pipelines, storage tanks, and large structures.
Use on MPI benches and penetrant lines.
Applications requiring compliance with specific industry standards like ASTM E3022 and Rolls-Royce RRES 90061.
The LABINO BB 2.0 Ikaros (Mains Power Supply) is a powerful and reliable UV LED lamp that provides a wide, uniform beam for efficient fluorescent NDT inspections over large areas, with the convenience of continuous mains power operation.
