NM01T2021001

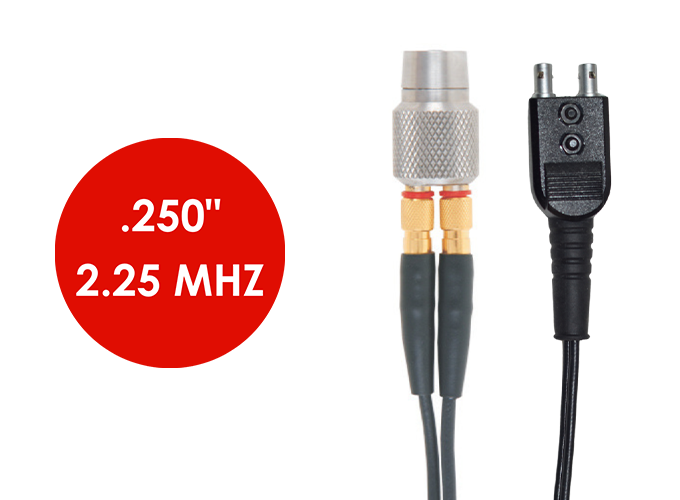

Dual Element Transducers 2.25 MHz, 1/4", Microdot Top Connector, Dakota NDT SKU: T-202-1001
Choose Quantity
Dakota NDT — Dual Element Transducer (2.25 MHz, 1/4", Microdot Top Connector)
Compact UT Probe for Thickness Measurement & Corrosion Inspection SKU: T-202-1001Overview
The Dakota NDT Dual Element Transducer is a compact ultrasonic probe designed for reliable thickness measurement and corrosion inspection applications. Operating at 2.25 MHz with a 1/4" diameter element, this probe provides strong penetration capability for inspections where lower frequency performance is preferred.
Its dual element design uses separate transmit and receive elements to reduce dead zone and improve near-surface measurement capability. This makes it useful for corrosion monitoring, wall thickness measurement, and inspection of materials where signal penetration is important.
Equipped with a Microdot top connector, the transducer supports secure signal transmission and straightforward cable routing during field, shop, and laboratory inspection workflows.
What's Included
| Item | Details |
|---|---|
| UT Transducer | Dual element probe, 2.25 MHz, 1/4", Microdot top connector |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | Dual element ultrasonic transducer |
| Frequency | 2.25 MHz |
| Element Diameter | 1/4" |
| Connector Type | Microdot |
| Connector Location | Top |
| Application | Thickness measurement & corrosion inspection |
| Manufacturer | Dakota NDT |
| SKU | T-202-1001 |
Performance Features
2.25 MHz Penetration Performance
Provides strong ultrasonic penetration for corrosion inspection and thicker material applications.
Compact 1/4" Element Size
Ideal for localized inspection areas, small components, and restricted access points.
Dual Element Design
Improves near-surface resolution and supports reliable corrosion measurements.
Microdot Top Connector
Provides secure signal connection with convenient cable routing from the top of the probe.
User-Friendly Design
- Compact probe size for precise placement
- Top connector configuration for straightforward setup
- Lightweight and easy to handle
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for repeated inspection use
- Reliable performance in field and maintenance conditions
- Suitable for thickness measurement and corrosion monitoring
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Ultrasonic thickness gauges
- Ultrasonic flaw detectors
- Dual element UT cable setups
- Microdot cable connections
- Corrosion monitoring workflows
Ideal Applications
- Thickness measurement
- Corrosion monitoring
- Localized wall loss inspection
- Small component testing
- Pipeline, tank, and vessel inspection
- Manufacturing and maintenance QA/QC
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment and accessories, providing reliable probes, gauges, wedges, and flaw detection solutions for professional NDT applications. Their products are widely used where accuracy, durability, and consistent inspection performance are essential.
