NM01IQI462AL10

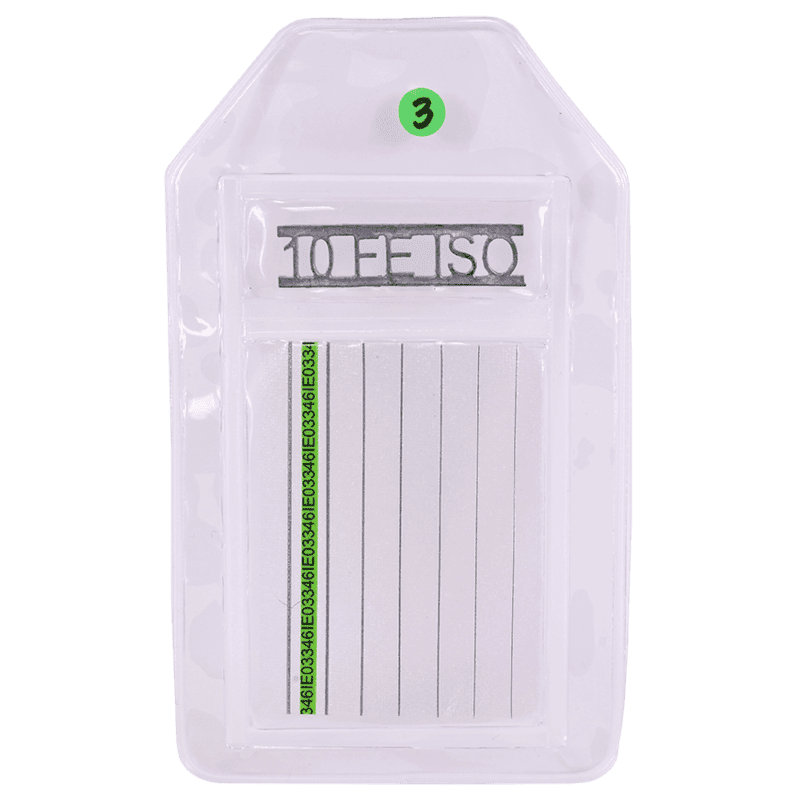

IQI Wire Type – EN-462-1 & DIN 54109 Compliant – Aluminum EN, 10 ISO 16, 2", KEC

Engineered for precision non-destructive testing (NDT), this Wire Type Image Quality Indicator (IQI) meets both EN-462-1 and DIN 54109 standards, ensuring global applicability in industrial radiography. Manufactured from EN-grade aluminum, it features ten calibrated wires in ISO 16 configuration across a 2-inch reference length—enabling accurate flaw detection in critical components like welds, castings, and pressure vessels.

Specifications

• Certification: EN-462-1 and DIN 54109

• Material: High-purity EN aluminum

• Configuration: 10 wires, ISO 16 calibration

• Wire Diameter Profile: As defined by ISO 19232-1, optimized for fine flaw visibility

• Indicator Length: 2 inches

• Manufacturer Reference: KEC

Applications

• Radiographic testing of metallic structures, pipelines, vessels, and assemblies

• Suitable for field inspections, QA labs, and manufacturing audits

• Works with film-based and digital RT systems

Features & Benefits

• International dual-standard compliance for regulated markets

• ISO 16 wire array supports high-resolution flaw identification

• Aluminum composition delivers sharp image contrast and consistent sensitivity

• Compact and rugged form factor for lab and field environments
