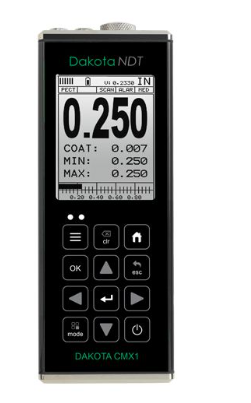

Dakota NDT CMX DL Material and Coating Ultrasonic Thickness Gauge
SKU: Z-171-0003
A data logging corrosion thickness gauge that measures material and coating thickness at the same time while detecting pits and flaws, supplied as a complete kit with transducer, PC software and calibration certificate.
| 2-in-1Coating and material together | 6Measurement modes | 64Custom setups | USAMade in the USA |
The Dakota NDT CMX DL gives inspectors everything they need to measure material and coating thickness at the same time, while still locating pits, flaws and defects in the material. Its range of measurement modes covers bare metal, coated surfaces, hot material and coating-only readings, so one gauge handles most corrosion and wall thickness work.
Automatic probe zero, probe recognition and temperature compensation speed up setup, and the built-in data logger, PC software and transfer cable make documenting surveys simple. The kit ships ready to work with a standard transducer, couplant, batteries, a carrying case and a certificate of calibration.
Key Features
 | Coating and material thickness at the same timeIn Pulse-Echo Coating (PECT) mode, the CMX DL displays material thickness and coating thickness separately in a single reading, while still detecting pits and flaws. Inspectors get the full picture of a coated structure without removing the coating. |
Built for the Field
Six measurement modes
Pulse-Echo for bare metal, pits and flaws; Pulse-Echo Coating for material and coating together; temperature-compensated Pulse-Echo for hot surfaces; Echo-Echo and Echo-Echo Verify for thru-coat readings; and Coating Only for coating thickness.
Automatic setup
Automatic probe zero, probe recognition and temperature compensation get you measuring faster and with fewer setup errors.
Flexible calibration
Use single or two-point calibration for both material and coating, or select from basic material types. A selectable transducer table improves linearity, and a 5-position gain switch adapts to difficult materials and applications.
Clear display views and alarms

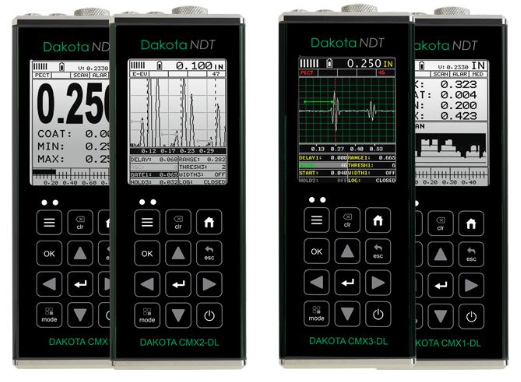

Switch between large digits and a B-scan cross-section view, with a scan bar for thickness trends and min/max capture during scans. Audible and visual alarms flag readings outside your high and low limits.
Data logging and PC software
Store readings in the built-in data logger and save up to 64 custom setups for specific applications. Transfer data and setups to a PC with the included software and data transfer cable.
Rugged and portable
A small extruded aluminum body gives extra durability for field and shop use, powered by standard AA batteries.
Specifications
| General | |
| Manufacturer | Dakota NDT |
|---|---|
| Model | CMX DL |
| SKU | Z-171-0003 |
| Instrument type | Data logging material and coating thickness gauge |
| Shipping dimensions (estimated) | 356 × 305 × 152 mm (14.0 × 12.0 × 6.0 in) |
| Shipping weight (estimated) | 2.3 kg (5.0 lb) |
| Measurement Modes | |
| Pulse-Echo (P-E) | Coating off: material thickness, pits and flaws |
| Pulse-Echo Coating (PECT) | Material 0.025 to 48 in (0.63 to 1,219.2 mm) and coating 0.001 to 0.100 in (0.01 to 2.54 mm), with pit and flaw detection |
| Temperature compensated (PETP) | Pulse-Echo with automatic adjustment for material temperature |
| Echo-Echo (E-E) and Echo-Echo Verify (E-EV) | Thru-coat: material thickness only, excluding coating |
| Coating Only (CT) | 0.0005 to 0.100 in (0.0127 to 2.54 mm) |
| Setup & Calibration | |
| Automatic functions | Probe zero, probe recognition, temperature compensation |
| Calibration | Single or two-point for material and coating, or selection of basic material types |
| Linearity | Selectable transducer table |
| Gain | 5-position, 12 dB gain switch |
| Custom setups | Up to 64, transferable to and from a PC |
| Display, Data & Physical | |
| Display views | Large digits, scan bar, B-scan; min/max capture |
| Alarms | Audible and visual, high and low limits |
| Data logging | Built-in data logger; PC software and data transfer cable included |
| Case | Extruded aluminum body |
| Power | AA batteries |
What's in the Box
- Dakota NDT CMX DL thickness gauge
- Standard transducer
- Couplant
- AA batteries
- PC software and data transfer cable
- Plastic carrying case
- Operation manual
- Certificate of calibration
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your thickness testing setup
Add a step calibration block for daily checks, extra couplant, and Dakota dual-element transducers for other thickness ranges or high-temperature work. A protective rubber boot adds impact protection in the field.
Applications
The CMX DL handles corrosion surveys, coating checks and wall thickness verification on coated and bare structures.
| ✓ Corrosion and pitting | ✓ Coating thickness verification |
| ✓ Coated pipes and tanks | ✓ Boilers and pressure vessels |
| ✓ Hot surfaces with temperature compensation | ✓ Structural steel |
| ✓ Wall loss evaluation | ✓ Maintenance and asset integrity programs |
About Dakota NDT
Dakota NDT, an Elcometer company, manufactures high-quality industrial ultrasonic testing equipment for the petrochemical, aerospace, power generation and automotive industries. Its range includes corrosion and precision thickness gauges, flaw detectors, bolt tension monitors, transducers and accessories.
