NM01STDCSS

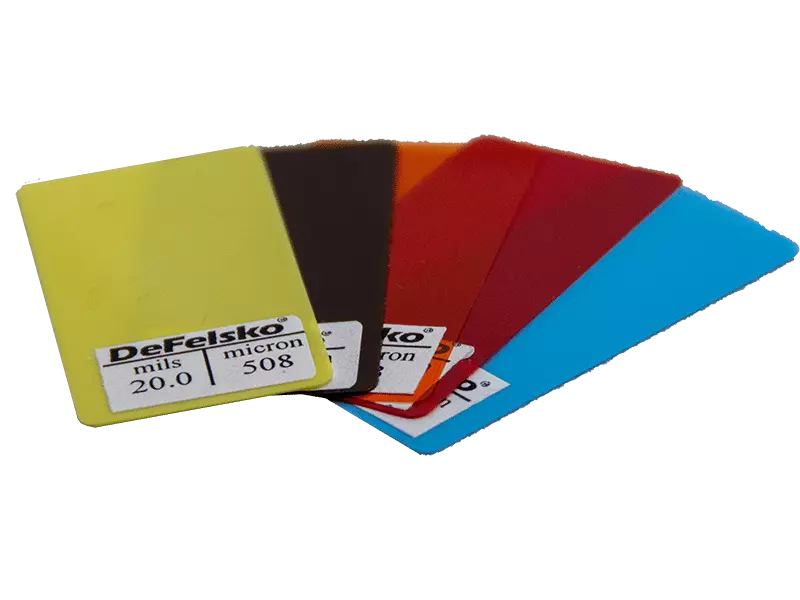

The Defelsko Certified Plastic Shims set includes 8 precision-calibrated shims designed to simulate a coating over various substrate materials or shapes. Ideal for calibrating and verifying electronic coating thickness gauges, these shims offer an economical and practical solution to measure coating thickness without the direct application on sensitive surfaces. Each shim provides a consistent thickness reading, enabling reliable and accurate measurement for coating applications on soft, tacky, or abrasive surfaces without risking probe damage or inaccurate readings.

Shim Thicknesses:

• 25 µm (1 mil)
• 50 µm (2 mil)
• 75 µm (3 mil)
• 125 µm (5 mil)
• 250 µm (10 mil)
• 500 µm (20 mil)
• 1000 µm (40 mil)
• 1500 µm (60 mil)

Key Features:

• Compatible with all Type 2 electronic coating thickness gauges
• Protects gauge probes from wear and damage, especially when measuring on hot or abrasive surfaces
• Allows accurate measurement on tacky or soft coatings without compressing the coating
• Each shim is individually packaged in a protective plastic pouch for durability and easy identification
• Certified and traceable to PBT standards with a Certificate of Calibration
• Dual-labeled in Metric and Imperial units for versatility in diverse applications
• Offers a cost-effective alternative to Coated Metal Plates, though with slightly reduced accuracy

Certification: Each shim is certified and labeled to provide reliable, traceable readings across different coating and substrate materials. The included Certificate of Calibration assures users of the product’s conformity with high standards in measurement traceability.
