Eintik — R20 Single Small Pipe Diameter Scanner Package

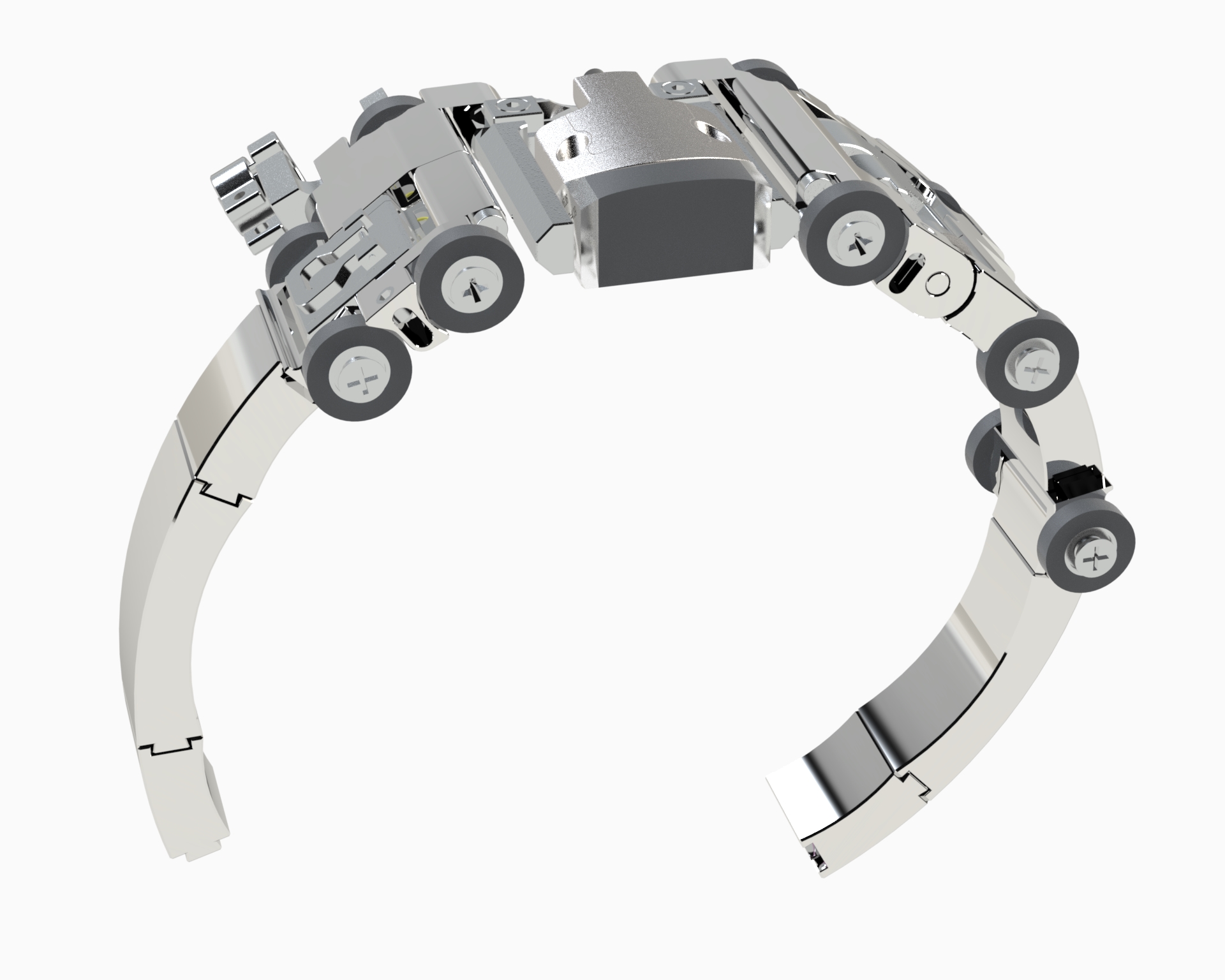

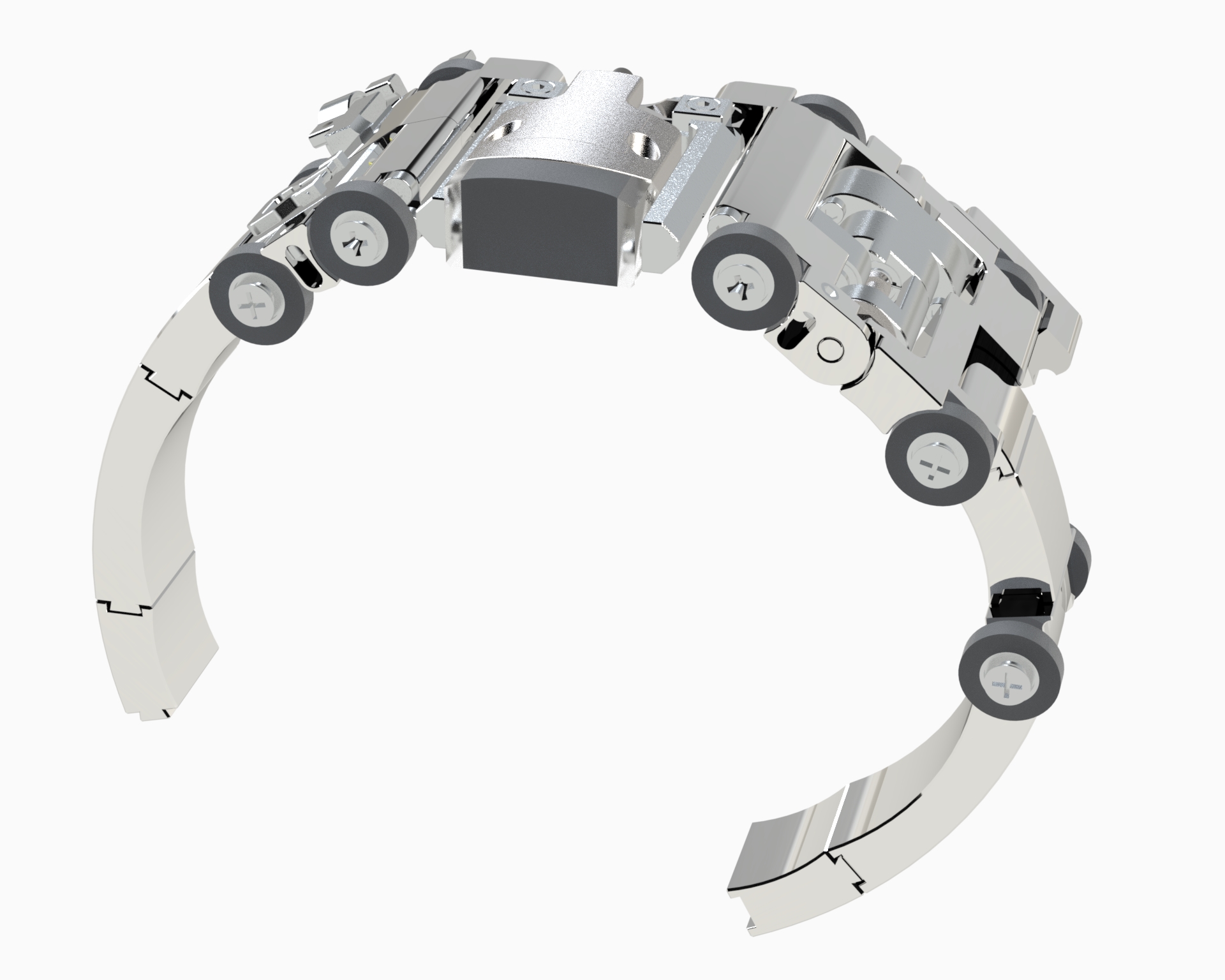

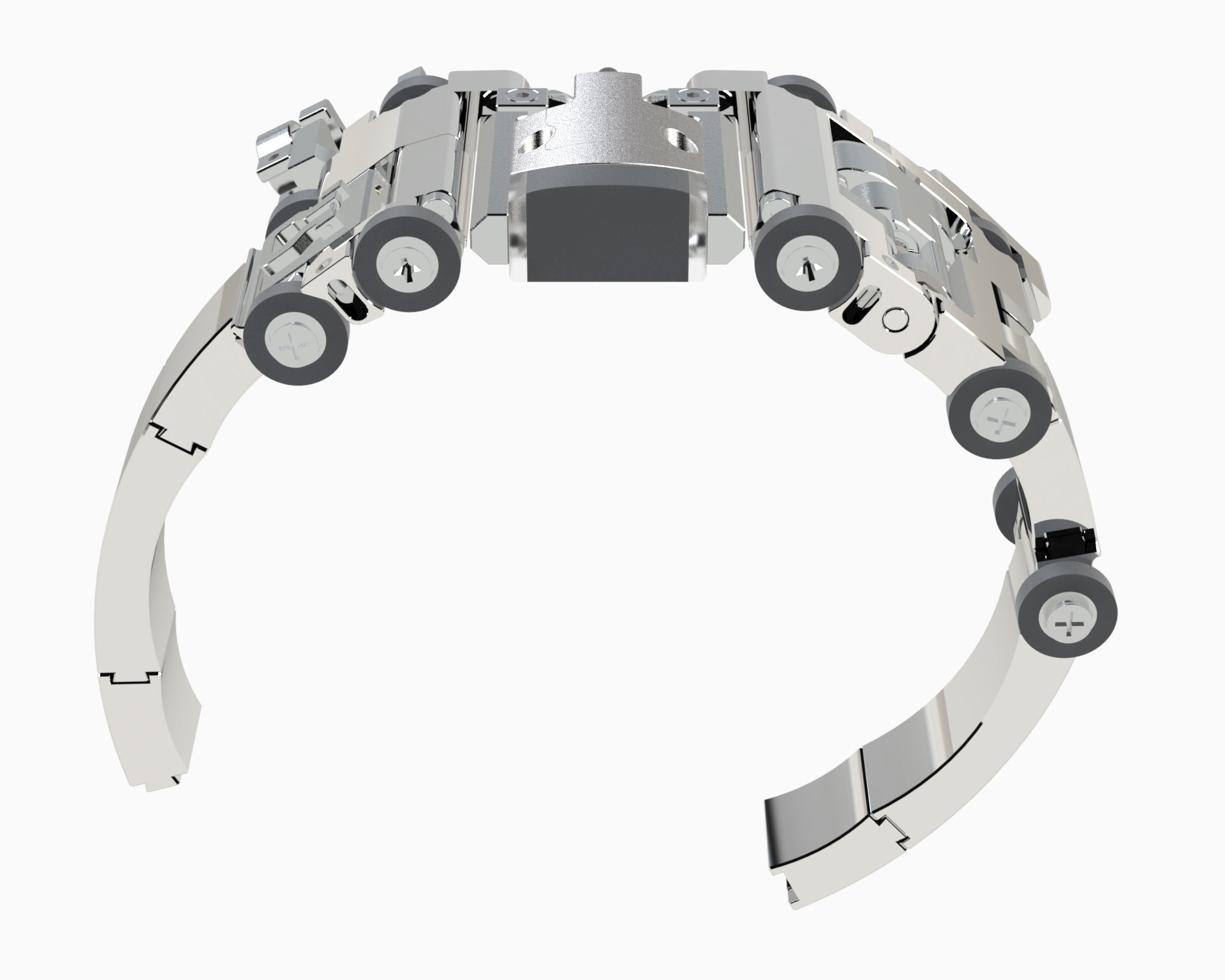

R20 Small Pipe OD Scanner Package with 7.5 MHz Phased Array Probe & M15-N60S-IH Wedges SKU: R20-S-D0.84-4.5-SINGLEOverview
The Eintik R20 Single Small Pipe Diameter Scanner Package is a professional PAUT pipe inspection solution designed for controlled scanning on small outside diameter pipe surfaces. Built for industrial NDT workflows, this package supports repeatable probe movement, stable inspection positioning, and consistent scan coverage during pipe weld and component examination.
This package is designed for pipe outside diameters from 0.84" to 4.5", equivalent to D21.3–D114 mm. It includes the R20 single small pipe diameter scanner, the 7.5EF16-0.5x7-M15-F5-D3 phased array probe, and M15-N60S-IH wedges for multiple outside diameter configurations, making it practical for inspection teams working across a range of small pipe sizes.
Supplied as a scanner package with probe and wedges, SKU R20-S-D0.84-4.5-SINGLE provides a field-ready solution for technicians requiring controlled PAUT scanning, pipe diameter adaptability, and professional inspection setup support in fabrication, maintenance, and asset integrity programs.
What's Included
| Item | Details |
|---|---|
| Pipe Scanner | R20 single small pipe diameter scanner |
| Probe | 7.5EF16-0.5x7-M15-F5-D3 standard phased array probe |
| Probe Type | 7.5 MHz linear array, 16 elements |
| Wedge Set | M15-N60S-IH wedges |
| Pipe OD Range | 0.84–4.5 in |
| Pipe Diameter Range | D21.3–D114 mm |
| Wedge AOD Sizes | 0.84", 1.05", 1.315", 1.66", 1.9", 2.375", 2.875", 3.5", 4.0", 4.5" |
| Application | Small pipe PAUT inspection support |
| Manufacturer | Eintik |
| SKU | R20-S-D0.84-4.5-SINGLE |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 18.0 in |
| Width | 14.0 in |
| Height | 8.0 in |
| Dimensions (L × W × H) | 18.0 × 14.0 × 8.0 in |
| Weight | 12.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Small pipe diameter scanner package |
| Scanner Model | R20 |
| Scanner Configuration | Single small pipe diameter scanner |
| Pipe OD Range | 0.84–4.5 in |
| Pipe Diameter Range | D21.3–D114 mm |
| Probe Model | 7.5EF16-0.5x7-M15-F5-D3 |
| Probe Frequency | 7.5 MHz |
| Probe Type | Linear phased array |
| Number of Elements | 16 |
| Active Aperture | 16 × 0.5 mm |
| Pitch | 0.5 mm |
| Elevation | 7 mm |
| Probe Case Type | M15 |
| Wedge Model | M15-N60S-IH |
| Wedge AOD Sizes | 0.84", 1.05", 1.315", 1.66", 1.9", 2.375", 2.875", 3.5", 4.0", 4.5" |
| Primary Use | Controlled small pipe PAUT scanning |
| Inspection Method | Phased Array Ultrasonic Testing / PAUT |
| Manufacturer | Eintik |
| SKU | R20-S-D0.84-4.5-SINGLE |
Performance Features
Small Pipe Diameter Scanner Package
Supports controlled scanning on pipe outside diameters from 0.84" to 4.5" / D21.3–D114 mm.
7.5 MHz Phased Array Probe Included
Includes a 16-element linear array probe with 0.5 mm pitch and 7 mm elevation for professional PAUT inspection workflows.
Multi-OD Wedge Coverage
Includes M15-N60S-IH wedges for AOD sizes from 0.84" through 4.5", supporting inspection across multiple pipe diameters.
Controlled PAUT Scan Support
Helps technicians maintain consistent probe positioning, movement, and scan repeatability during small pipe inspection.
User-Friendly Design
Complete scanner package with probe and wedge set included
Supports multiple small pipe outside diameter configurations
R20 scanner assists with stable and repeatable scan movement
M15 probe and wedge configuration supports practical setup integration
Designed for field, shop, and fabrication inspection workflows
Built for Industrial Environments
Designed for professional PAUT pipe inspection applications
Suitable for fabrication, maintenance, and QA/QC workflows
Practical for small-diameter pipe weld and component inspection
Built for repeated scanner setup and field inspection use
Supports inspection teams requiring controlled and repeatable scan coverage
Compatibility
Compatible with:
Small pipe PAUT inspection workflows
Pipe OD ranges from 0.84" to 4.5"
D21.3–D114 mm pipe diameter applications
7.5EF16-0.5x7-M15-F5-D3 phased array probe configuration
M15-N60S-IH wedge setups
Industrial pipe weld inspection and scanner-based PAUT procedures
Ideal Applications
Small-diameter pipe inspection
PAUT weld inspection
Process piping evaluation
Tubing and small pipe scan guidance
Fabrication QA/QC workflows
Maintenance inspection programs
Field and shop scanner-based PAUT
Industrial asset integrity inspection support
About Eintik
Eintik provides phased array probes, inspection scanners, wedges, and NDT accessories for professional ultrasonic testing applications. Their products support inspection teams working in weld examination, pipe inspection, probe positioning, and advanced PAUT workflows where reliable setup and repeatable inspection performance are essential.
