NM01TAB26014X14

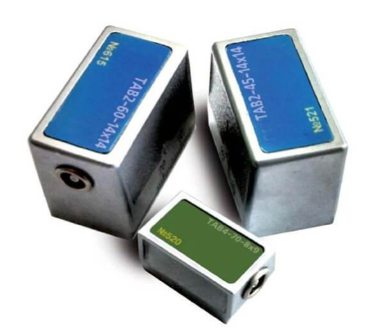

The OKO-NDT Angle Beam Probe TAB is a precisely engineered, single-element ultrasonic transducer designed for non-destructive testing (NDT) applications requiring accurate flaw detection using an angled sound beam. This probe is particularly well-suited for inspections where the orientation of potential defects necessitates a controlled angle of incidence, particularly those associated with weld examinations.

Operating at a frequency of 2.0 MHz, this probe provides a balance of penetration and resolution, allowing for the detection of subsurface flaws in a variety of materials. The 60° angle beam allows for the reliable detection of defects that are obliquely oriented relative to the test surface, this is an angle that is very frequently used in weld inspection.

The 14 x 14 mm active element of the probe ensures a focused and consistent ultrasonic beam, contributing to the accuracy and reliability of inspection results. The industry-standard Lemo 00 connector provides a secure and reliable connection to ultrasonic testing equipment, minimizing signal interference and ensuring optimal data transmission.

Manufactured by OKO-NDT, a trusted provider of NDT solutions, the Angle Beam Probe TAB is constructed from high-quality materials and built to stringent manufacturing standards, ensuring durability and long-term performance in demanding industrial environments.

Key Features and Benefits:

• 2.0 MHz Frequency: Provides a good balance of penetration and resolution.

• 60° Angle Beam: Enables the detection of obliquely oriented flaws, very common in weld inspection.

• Single Element Design: Offers reliable performance and simplified operation.

• 14 x 14 mm Active Element: Provides a focused and consistent ultrasonic beam.

• Lemo 00 Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a reputable provider of NDT equipment.

Applications:

• Weld Inspection: Detection of obliquely oriented cracks and other weld defects.

• Pipe Inspection: Inspection of pipes for flaws.

• Structural Inspection: Inspection of structural components for angled cracks and other defects.

• General NDT: Applicable in various industries requiring angled beam ultrasonic testing.

•


Technical Details:

• Frequency: 2.0 MHz

• Refracted Angle: 60°

• Element Size: 14x14mm, 550x550 in

• Type of Case: Plated brass

• Connector Type: Side
