NM01UAT620

Accidentally hitting a utility line during a project can lead to costly repairs and create hazardous public safety situations. Digging in the wrong place can also lead to unnecessary delays and costs for your project, and ultimately, your company. Avoid this disruption with the rugged and durable Amprobe UAT-600 Series, designed to accurately pinpoint underground utilities and buried services up to 100 feet deep with accurate depth measurement to 20 feet.

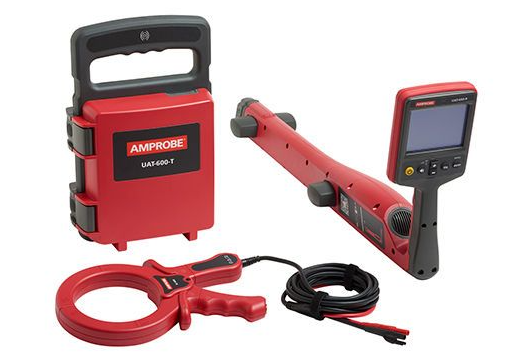

The locating kit comes complete and ready for use with a Transmitter, Receiver, test lead kit, batteries and additional fuses, all in a mobile, protective duffle bag. The UAT-620 kit also includes a Signal Clamp for transmitting a signal when it is not possible to make electrical contact with the cable to be traced. For applications where ground fault locating is required, use the UAT-600 Transmitter in combination with the optional A-Frame accessory.

Main applications

• Locate energized 50/60 Hz cables carrying current
• Identify the location of all metallic utilities: pipes*, energized and de-energized cables
• Trace individual pipes* or cables (energized or de-energized)

*Tracing of non-metallic pipes and conduits is possible after inserting metal fish tape or cable

Three testing modes for wide range of applications

• Passive power mode (50/60 Hz) – tracing energized lines conducting current (no Transmitter necessary)
• Passive radio mode (RF) – using surrounding radio waves to trace underground utilities (no Transmitter necessary)
• Active mode using UAT-600-T Transmitter

Three active modes using the UAT-600-T Transmitter

• Induction – the Transmitter will automatically start to radiate a signal around it using an internal antenna, used for tracing individual cables where there is no access to the line to connect test leads or a clamp
• Direct connection with test leads – the most reliable method to trace individual cable or a pipe
• Clamp (Included in the UAT-620 kit, optional for the UAT-610 kit) – provides an efficient and safe method of applying a locate signal to a cable, where it is not possible/safe to gain access to a cable for making an electrical contact

Special applications

• 2 frequency options: 8 kHz and 33 kHz
• Locate non-metallic pipes and sewer lines
• Take depth and current measurements
• Measure voltage, resistance and output current
• Advanced locating with two people
• Locate ground faults with the optional AF-600 A-Frame accessory

Unparalleled safety

Stop compromising time and safety. What truly sets the UAT-600 Series apart from other underground locators is its CAT IV 600 V safety rating. This allows you to safely connect the Transmitter directly to an energized line up to 600 V in a CAT IV environment. Previously, if a crew needed to trace a specific electrical line by transmitting a signal through it, the line had to be de-energized first, adding time and reducing productivity.

Technical Details:

Features	UAT-600-R Receiver	UAT-600-T Transmitter	SC-600 Signal Clamp (included with UAT-620, optional for UAT-610)
Measurement category	CAT IV 600 V
Operating voltage/current	0 to 600 V	0 to 600 V, 100 A max.
Operating frequency/tracing modes	Active tracing: 33 kHz and 8 kHz Passive tracing: 50/60 Hz and Radio	Energized circuit Induction mode: 33 kHz Direct connection modes: 8 kHz and 33 kHz Clamp mode: 8 kHz and 33 kHz De-Energized circuit Induction mode: 33 kHz Direct connection modes: 8 kHz, 33 kHz, A-Lo/A-Hi A-Frame: 8 kHz Clamp mode: 8 kHz and 33 kHz	33 kHz and 8 kHz
Locating modes	Peak and Null	–	–
Depth measurement and accuracy	Up to 20 ft 4 in to 10 ft: pm; 3 % 10 ft to 20 ft: pm; 5 %	–	–
Display backlight	Automatic	Yes	–
Audio indication	Increasing closer to the signal	Fast beeps showing the better signal is applied	–
Transmitting mode power output	–	Max. 3 watts	–
Output voltage	–	Max. 50 V rms	–
Output current	–	Max. 250 mA rms, constant current in 5 steps	–
Signal voltage output (nominal)	–	–	23 V rms at 8 kHz 30 V rms at 33 kHz
Mains voltage measurement	–	0 V to 600 V, 50 Hz to 60 Hz Resolution: 1 V Accuracy: pm; 10%	–
Resistance measurement (De-energized circuit)	–	0 ohm; to 999 k ohm; Range: 0 ohm; to 999 ohm; (resolution: 5 ohm;) Range: 1 k ohm; to 999 k ohm; (resolution: 1 k ohm;) Accuracy: pm; 10%	–
Output hazardous voltage warning	–	≥ 30 V rms	–
Mains hazardous voltage warning	–	≥ 30 V rms	–
Sensitivity adjustment (gain control)	Yes	–	–
Sensitivity at 1 m (typical)	Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA	–	–
Display	4.3 in, 320 x 240 BW outdoor LCD display with auto backlight	LCD display (LED backlight) 2.4 in x 1.3 in	–
Update rate	Instantaneous	Current (mA): 10 ms Voltage (V): 15 ms Resistance ( ohm;): 330 ms	–
Operating temperature and humidity	-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity	-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
Water and dust resistance	IP54
Drop proof	3.28 ft (1 m)
Power supply	(6) 1.5 V AA alkaline batteries	(8) 1.5 V D cell alkaline batteries	–
Auto power off	15 minutes idle	–	–
Battery life	Approx. 35 hours at 70 °F (21 °C) (Typical)	Approx. 16 hours at 70 °F (21 °C) (Typical)	–
Overload protection	–	600 V rms Fuse FF 500 mA, 1000 V, IR 30 kA, Φ6.3×32 mm	–
Agency approval
Safety compliance	IEC 61010-1, IEC 61010-2-033 CSA/UL 61010-1, CSA/UL 61010-2-033	IEC 61010-1, IEC 61010-2-033 CSA/UL 61010-1, CSA/UL 61010-2-033 IEC 61010-031, CSA/UL 61010-031 (test leads)	IEC 61010-1, IEC 61010-2-033 CSA/UL 61010-1, CSA/UL 61010-2-033
Size (H x W x L)	Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm)	Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)	Approx. 11.6 x 7.1 x 1.4 in (295 x 180 x 37 mm)
Weight	Approx. 4.2 lb (1.9 kg) (batteries installed)	Approx. 7.0 lb (3.2 kg) (batteries installed)	Approx. 1.9 lb (0.85 kg)
