SCANRAY® 2530 PRO — Portable Wireless Digital Radiography System

Complete Field Package | SKU: SCANRAY2530PRO

Overview

The SCANRAY® 2530 PRO is a high-resolution, mid-format portable wireless digital radiography (DR) system and the compact model in the SCANRAY PRO series. Engineered by DR Systems for inspection professionals who demand enhanced image quality over the Regular series without stepping up to a full-format detector, the 2530 PRO delivers an outstanding 99 µm pixel pitch across a versatile 9.8 × 11.8 inch active detection area — making it one of the most capable and well-balanced detectors in the entire SCANRAY lineup.

Lighter and more maneuverable than the 3643 PRO, yet significantly sharper than any Regular series model, the SCANRAY® 2530 PRO is the preferred choice for inspectors working in environments where access is moderately restricted, image quality requirements are high, and portability is a priority. From precision weld inspection and aerospace component quality control to corrosion assessment and in-service pipeline inspection, the 2530 PRO handles it all — straight out of the box.

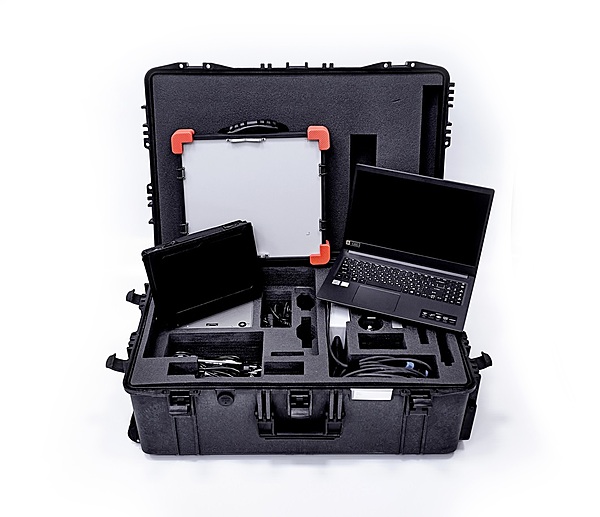

What's Included

Box Dimensions & Shipping Weight (Estimated)

Key Detector Specifications

PRO Series — Enhanced Resolution, Optimized Portability

The SCANRAY® 2530 PRO sits at the intersection of portability and performance within the PRO series. Its 99 µm pixel pitch delivers a significant resolution advantage over Regular series detectors, while its mid-format active area keeps weight and overall dimensions manageable for field deployment in moderately restricted environments.

At just 2.5 kg (5.5 lb), the 2530 PRO is the lightest detector in the PRO series — making it the easiest PRO model to position, maneuver, and work with over extended inspection shifts. Despite its light weight, it delivers the same 99 µm pixel pitch and 16-bit image depth as the larger 3643 PRO — with no compromise on image quality.

DR-SOFT® Software

The SCANRAY® 2530 PRO ships with DR-SOFT® pre-installed on both the included ruggedized laptop and ruggedized tablet. DR-SOFT® is DR Systems' proprietary radiographic image acquisition and evaluation software, designed to deliver a fast and intuitive inspection workflow directly in the field. Key capabilities include:

• Real-time image display immediately after each exposure
• Image enhancement, annotation, and measurement tools
• DICONDE-format image storage for secure archiving and remote transmission
• Immediate post-exposure evaluation — no darkroom, no waiting, no film processing
• Remote image transmission to a separate evaluation station for multi-site workflows

System Highlights

True Plug-and-Play Inspection The comprehensive package contents mean inspectors can begin working immediately upon arrival on site — no separate software licensing, no missing accessories, no sourcing compatible hardware.

Lightest PRO Series Detector At 2.5 kg (5.5 lb), the 2530 PRO is the most portable detector in the PRO lineup — reducing operator fatigue during extended campaigns and simplifying positioning in moderately restricted access environments.

Enhanced Resolution Over Regular Series The 99 µm pixel pitch represents a 20% improvement in pixel resolution over the Regular 2532 — enabling detection of finer defects and smaller indications across a comparable active area, meeting higher image quality acceptance criteria.

Wireless Operation Images are transmitted in real-time from the detector to the operator's tablet or laptop via Wi-Fi, allowing the operator to remain safely outside the radiation exclusion zone during exposure. An additional Wi-Fi module is included to extend wireless range in challenging environments.

24/7 Continuous Inspection Two full sets of batteries with charger ensure uninterrupted operation across extended inspection campaigns or multi-shift production environments.

Drop and Impact Protection The included universal protective cover protects the detector from accidental drops of up to 2 meters (6.6 feet) — a critical safeguard in active industrial environments.

High-Temperature Inspection The included heat-resistant blanket allows the detector to be used on hot objects up to 250°C (482°F) without any cooling period — reducing downtime in high-temperature process plant environments.

Zero Data Loss The detector's internal memory stores images locally when the wireless connection to the operator's station is interrupted. No images are ever lost during a working shift.

Compatible with All Radiation Sources The SCANRAY® 2530 PRO works with constant-potential, half-sine, and pulsed X-ray generators, as well as gamma radiation sources of varying activity levels.

Compliance & Standards

The SCANRAY® 2530 PRO fully meets the requirements of the following international NDT standards:

• ISO 17636-2 — Non-destructive testing of welds: Radiographic testing (Digital detectors)
• ASTM E2698 — Standard Practice for Radiological Examination Using Digital Detector Arrays
• ASME Boiler & Pressure Vessel Code — Section V, Article 2

Ideal Applications

• High-specification weld inspection where Regular series resolution is insufficient
• Aerospace and defense component quality control in moderately accessible locations
• Precision corrosion mapping of pressure vessels, storage tanks, and piping
• Shipbuilding and offshore structure inspection requiring enhanced image quality
• In-service inspection of insulated and operating equipment
• High-throughput production radiography where enhanced IQI sensitivity is required
• Any application demanding PRO series image quality in the most portable package available

About DR Systems

DR Systems is an internationally recognized developer and manufacturer of advanced digital radiography systems for industrial NDT. Headquartered in Seoul, Republic of Korea, DR Systems' SCANRAY® platform is trusted by inspection teams and NDT contractors across the oil & gas, aerospace, shipbuilding, and defense sectors worldwide.
