Unlock Advanced Ultrasonic Inspection Capabilities with the Sonatest PRISMA 16:64 TOFD B!

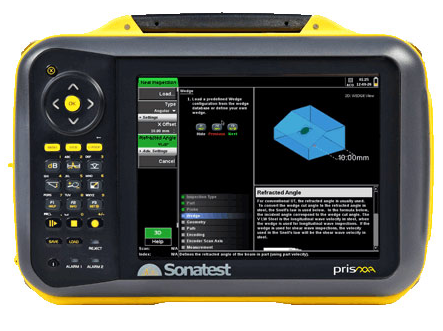

The Sonatest PRISMA 16:64 TOFD B is a powerful and versatile portable ultrasonic flaw detector and imaging instrument. This advanced unit combines conventional UT, Time-of-Flight Diffraction (TOFD), and Phased Array (PA) technologies in a single, robust platform, offering comprehensive inspection solutions for a wide range of applications. With its 16/64 Phased Array module, the PRISMA delivers exceptional imaging and data acquisition capabilities.

Key Features for Comprehensive Ultrasonic Testing:

• Multi-Technology Platform: Integrates conventional UT, advanced TOFD, and versatile Phased Array functionalities into one compact and user-friendly instrument.

• Powerful Phased Array: Equipped with a 16/64 module, allowing for sophisticated beam steering, focusing, and scanning techniques for detailed flaw characterization and imaging.

• High-Performance TOFD: Enables highly accurate sizing of defects through the precise measurement of diffracted ultrasonic waves.

• Conventional UT Capabilities: Supports standard pulse-echo, pitch-catch, and through-transmission techniques for basic flaw detection and thickness gauging.

• Intuitive Software Interface: Features a user-friendly interface designed for efficient setup, data acquisition, and analysis across all supported inspection techniques.

• Portable and Rugged Design: Engineered for demanding field conditions, the PRISMA boasts a robust enclosure for reliable operation in various environments.

• Advanced Data Analysis Tools: Offers powerful software features for visualizing, analyzing, and reporting inspection data.

• Versatile Applications: Suitable for a wide range of industries, including oil & gas, aerospace, power generation, and manufacturing, for weld inspection, corrosion mapping, flaw sizing, and more.

Benefits for Your Inspection Program:

• Increased Inspection Efficiency: Combine multiple inspection techniques in a single instrument, reducing setup time and streamlining workflows.

• Enhanced Defect Characterization: Leverage the power of Phased Array and TOFD for more accurate flaw detection, sizing, and imaging.

• Improved Data Reliability: Benefit from advanced data acquisition and analysis tools for consistent and dependable results.

• Versatile and Adaptable: Configure the instrument for a wide variety of inspection applications and material types.

• Portable Solution: Take advanced ultrasonic testing capabilities directly to the inspection site.
